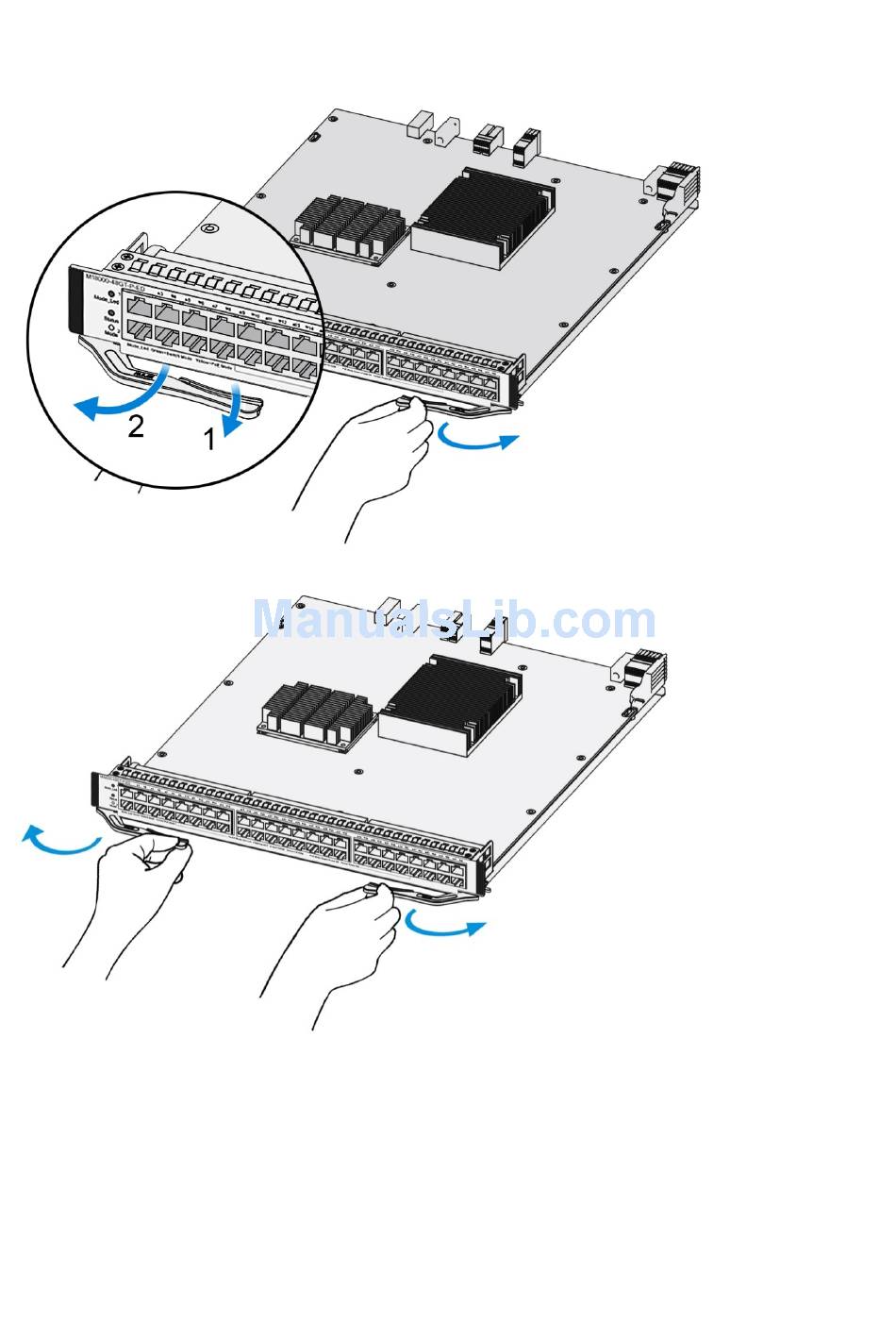

Hold down the button on the lever (1 in figure 3-28) and then pull out the lever (2 in figure 3-28).
Figure 3-28 Pulling out the Lever
Figure 3-29 Pulling out the Levers with Both Hands
(2) Install modules into slots (RG-N18014)
1)
Pull out both levers
2)
Insert the module into the slot along the slide rail and drive it ahead smoothly
3)
Push both levers toward the slot
Figure 3-30 RG-N18014 Chassis
(① in figure
3-30).
(③ in figure
3-30).
(② in figure
3-30).
