The host power is the summation of the power of all working modules, including the supervisor module, service module and fan.
For the power of each module, see RG-S7808C Series Switches Installation and Reference Guide.

4.9 Installing Fans

Before the following procedures, wear an anti-static wrist trap close to your skin and have it properly grounded.

Steps for installing the M08-FAN fan tray:
1) Install the fan tray into the fan slot in the back panel of RG-S7808C. Make sure that the fan is installed properly.
2) Tighten the captive screws on the fan tray with a screwdriver.

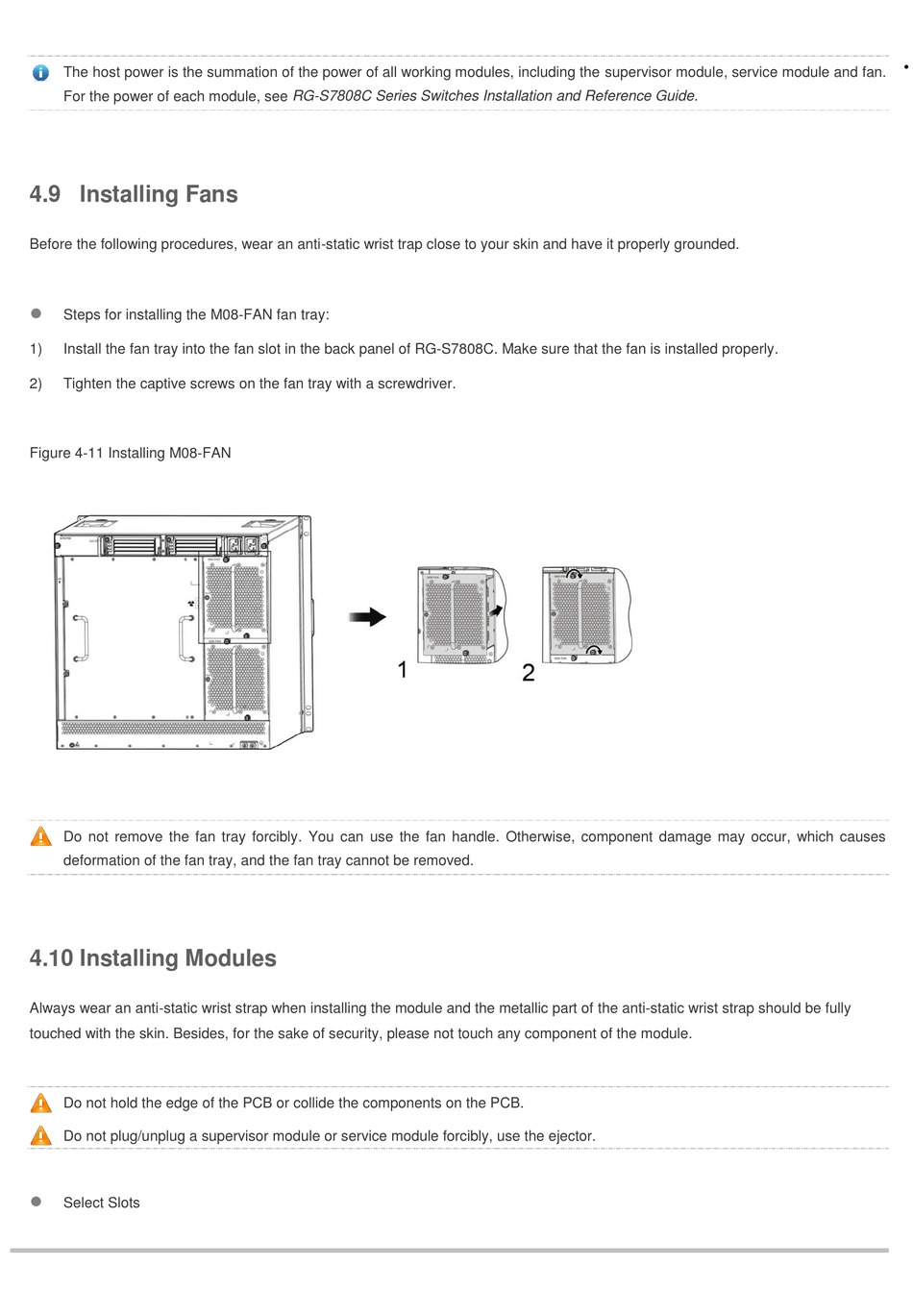

Figure 4-11 Installing M08-FAN
Do not remove the fan tray forcibly. You can use the fan handle. Otherwise, component damage may occur, which causes
deformation of the fan tray, and the fan tray cannot be removed.

4.10 Installing Modules

Always wear an anti-static wrist strap when installing the module and the metallic part of the anti-static wrist strap should be fully
touched with the skin. Besides, for the sake of security, please not touch any component of the module.
Do not hold the edge of the PCB or collide the components on the PCB.
Do not plug/unplug a supervisor module or service module forcibly, use the ejector.

Select Slots
·
