Chapter 4 - Hardware Description
4-8

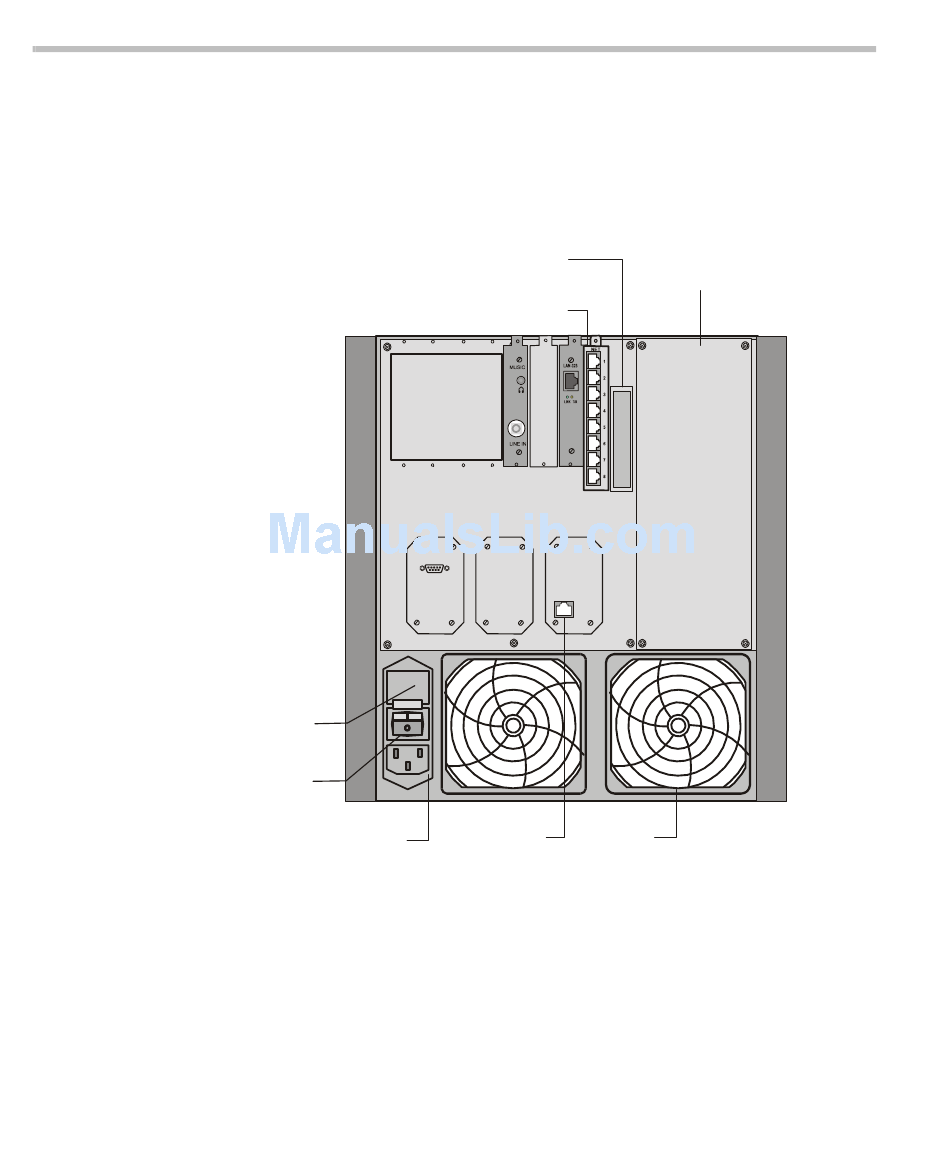

Figure 4-7 shows the rear panel of the MGC-50. I/O cards are inserted via the
rear panel. The rear panel also provides access to the fans, power supply
module, network connections, additional communications ports, the main
power switch, AC inlet, and fuse.
Fuse
Main Switch
AC Inlet
Figure 4-7: MGC-50 rear panel with external connector
Slot A
IO Card
COM 1 LAN
RJ45
Connector
Main Control
Module Cover
Fan
