Chapter 5 - System Maintenance
Replacing the Power Supply Module for the MGC-50
5-12
2.
Pull on the handle of the Power Supply Module to pull the module out of
its slot in the Powerplane.
3.
Carefully slide the Power Supply Module out through the front panel.
4.
Slide in the replacement Power Supply Module.
5.
Push the Power Supply Module firmly into the Powerplane making sure
it is properly seated in its slot.
6.
Tighten the 4 screws on the front panel of the MGC-100 that secure the
Power Supply Module.
The Power Supply Module is not hot swappable and cannot be replaced with
the system running. Use the following procedure to replace a faulty Power
Supply Module:
1.
If the MCU is working, exit the MGC Manager application and turn off
the MCU. Otherwise, skip this step.
2.
Unplug the MCU from the AC outlet.
3.

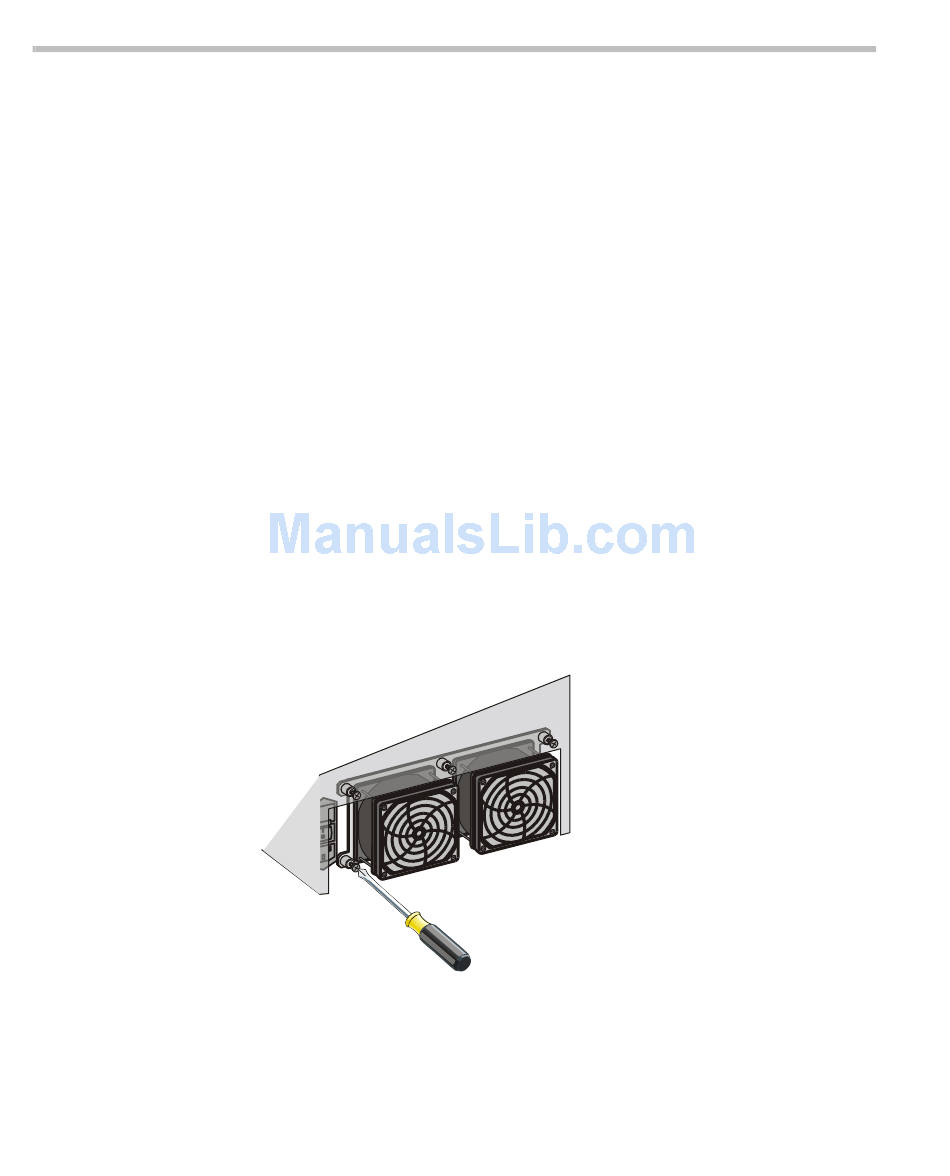

Using a standard Phillips screwdriver, remove six spring-loaded screws
from the fans cover on the MCU's rear panel.
