Connecting and Setting Up the MGC-100

Main Switch
and Circuit Breaker
AC Inlet
Use the MGC-100 rear panel diagram below for reference.
RS232
Connectors
MUSIC
LINE IN
Dry Contacts

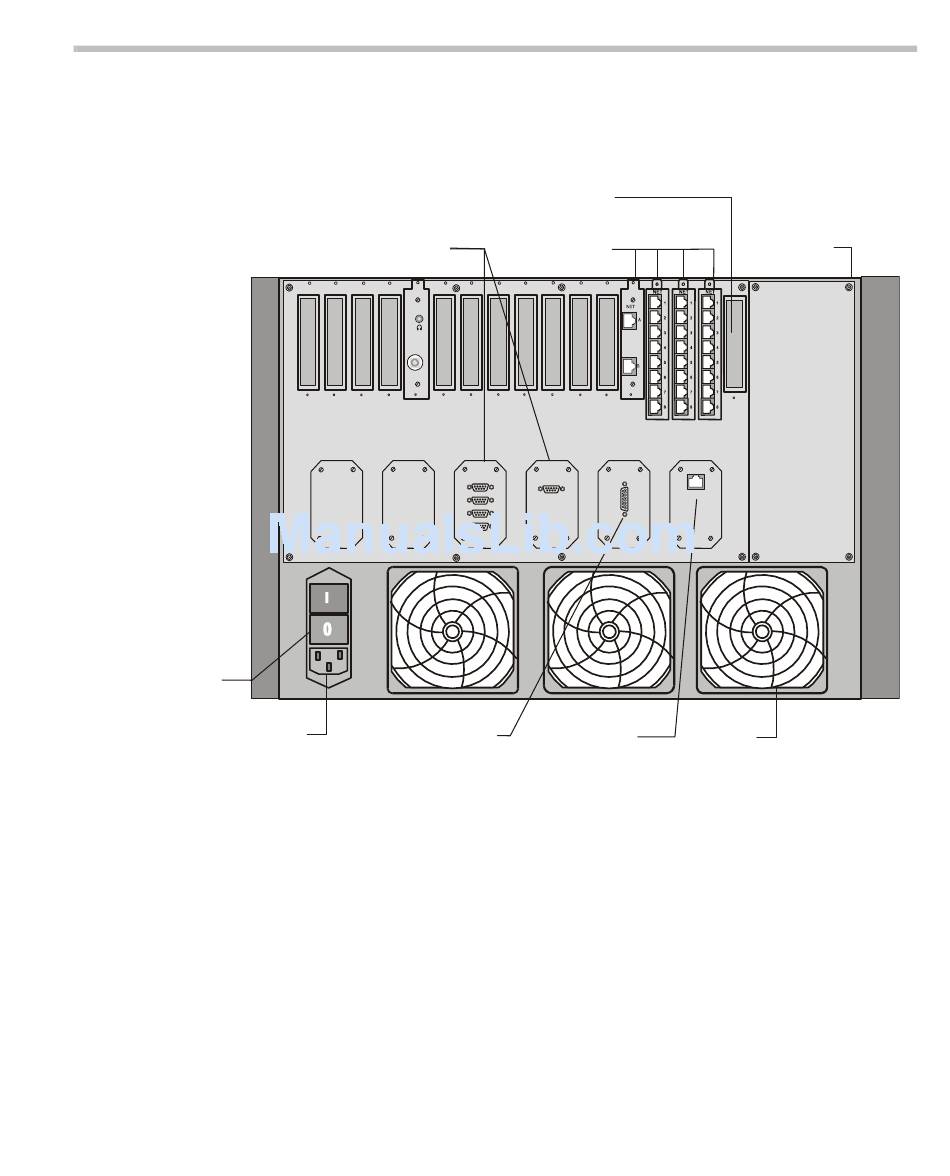

Figure 2-5: MGC-100 Rear Panel with External Connectors
To connect the MGC-100 to the network and power source and set up the
system the following procedures are performed:
Connecting the MGC unit to the power source (AC inlet or -48DC power
•
distribution unit)
Connecting the MGC unit to the LAN Network
•
Connecting the MGC unit to the Operator Workstation (PC) directly via
•
RS-232 (optional)
Connecting the MGC unit to the network(s)
•
MGC Hardware and Installation Manual
Slot A
Network
Connectors
COM COM 1 ALARMS
RJ45 Connector
Main Control
Module Cover
LAN
10/100 Mbits
Fan
2-9
