Audio Card
Female Connector
b
6.
Slide in the Audio module.
7.
Push the Audio module firmly into the backplane, making sure it is
properly seated in its slot.
8.
Tighten the screws on the front panel of the MGC unit to secure the
Audio module.
Attaching the Music I/O Card to the Audio Module
The Music I/O card is used to attach an external audio device such as a tape
recorder or CD player to playback music or recorded messages to participants
waiting in the Welcome queue during Greet and Guide conferences.
The Music I/O card is inserted in the rear panel of the MGC unit, and it is
attached to the Attended Audio module.
To install the Music I/O card in the rear panel of the MGC unit:
1.
Carefully slide the Music I/O card into the slot in the backplane where
the Attended Audio module is inserted in the front.
MGC Hardware and Installation Manual

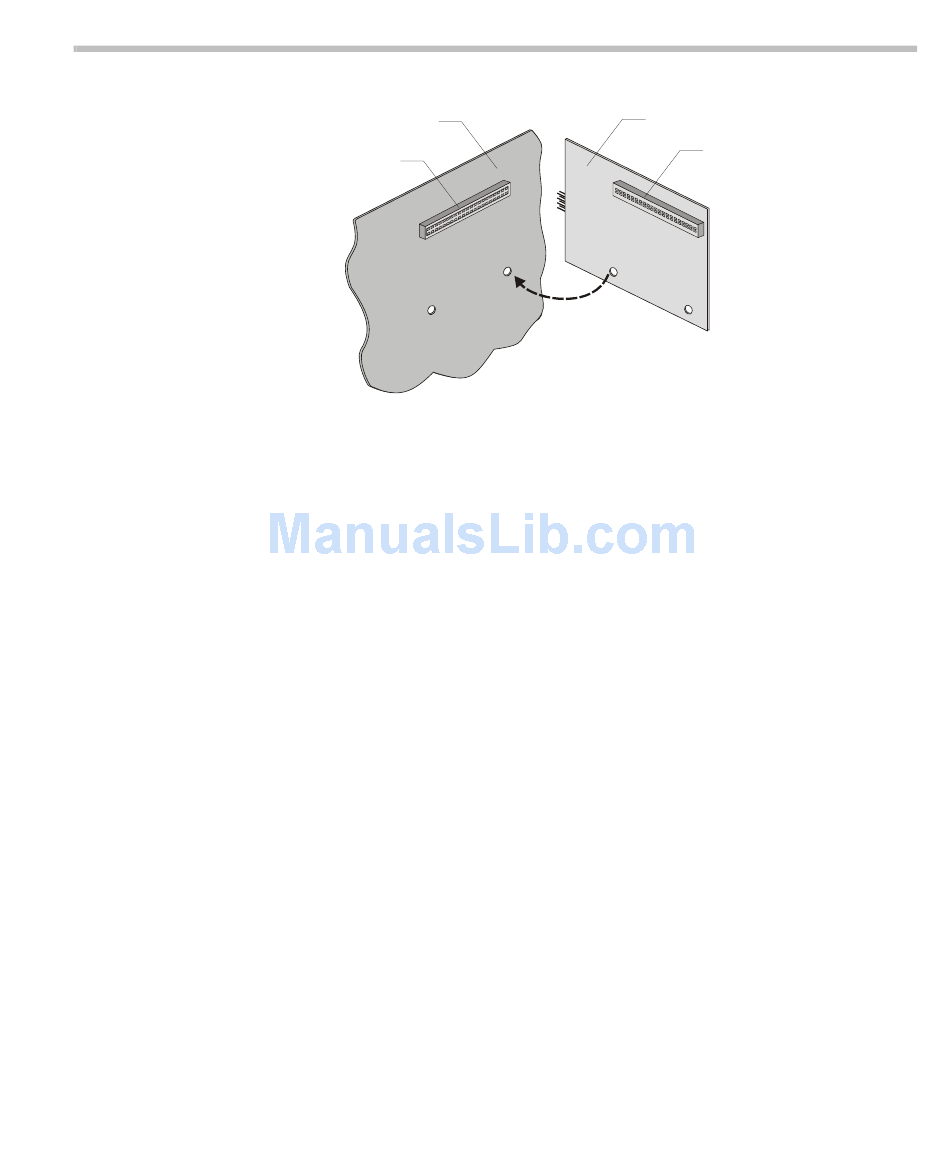

Message Card
a
a
Line Up Holes
b
to Secure Cards
Male Connector
4-69
