Chapter 2 - Hardware Installation
Mounting the MGC-100 on a 19" Rack
2-6
8.
Place the MCU in a 23" rack and while supporting it, screw the mounting
brackets to the rack securing it with bolts and self-locking nuts.
When the unit is installed on a rack, the rack must be properly grounded to the
central office ground. The rack must be grounded with two-hole compression-
type connectors using copper conductors (tinned or untinned). Wire, bus bar or
braided strap connectors are acceptable.
The MGC-100 can be mounted in a 19" rack using the mounting kit (P/N-
KIT2026A). It is highly recommended that the 19" rack be located in an air-
conditioned room.

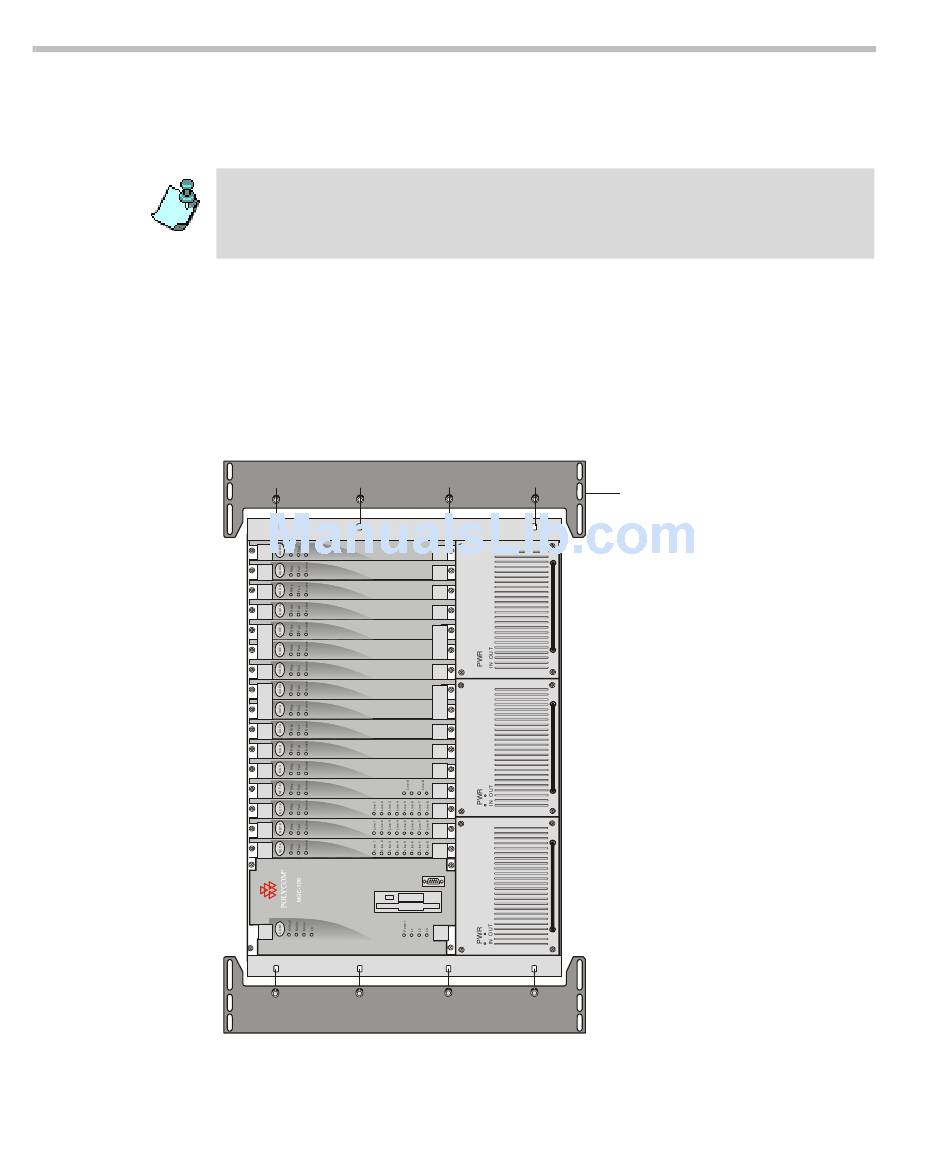

Figure 2-3 shows how to mount the MGC-100 on the 19" rack.
Figure 2-3: MCU Rack Mount
19" Attachment Bar
