Chapter 2 - Hardware Installation
2-12
5.
Turn on the power by pressing on the power switch located on the rear
panel of the MGC-100 unit.

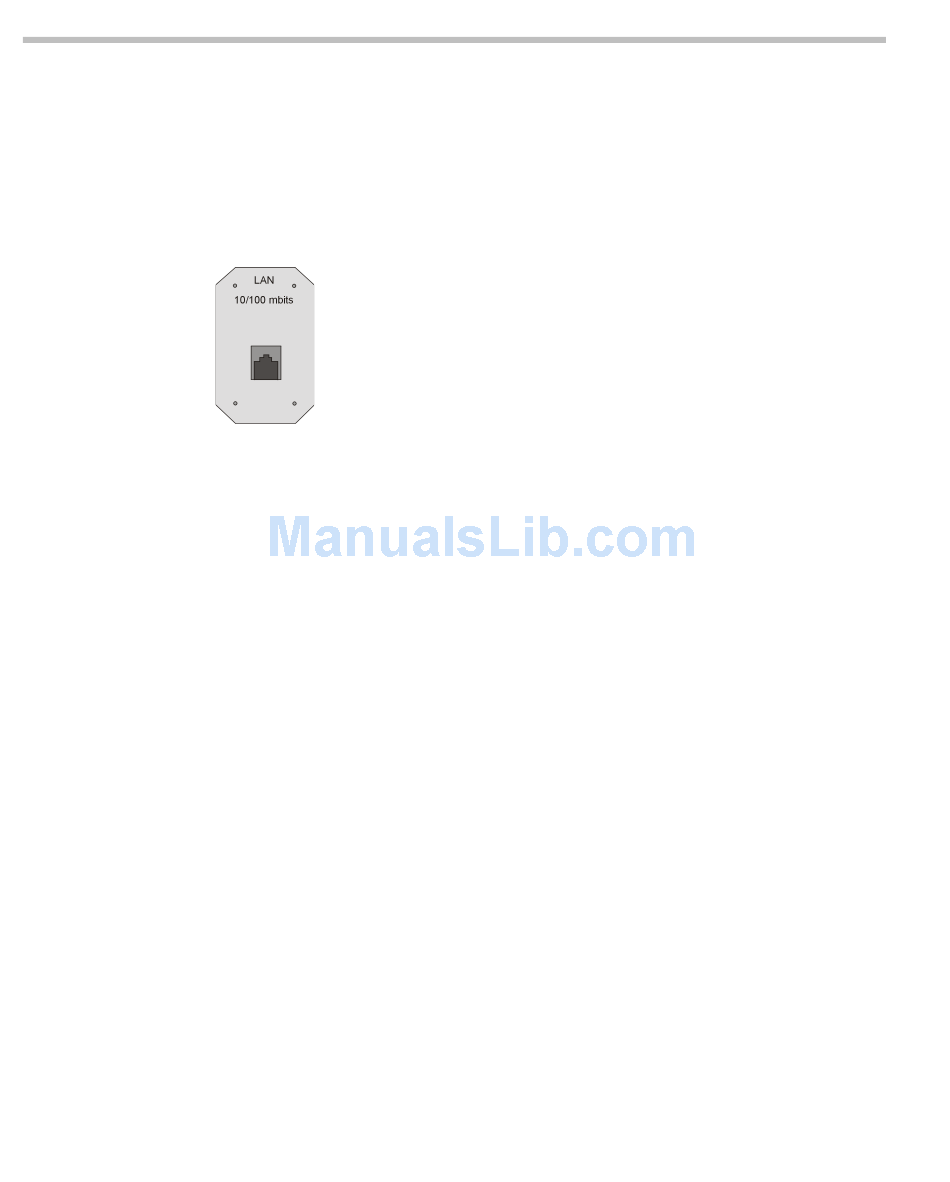

Connecting the MGC-100 to the LAN Network
Connect one end of a network cable to the LAN connector on the rear panel of
the MGC-100 and the other end to the network.
Connecting the MGC-100 to the Operator Workstation (PC) Directly
via RS-232 (Optional)
Connect one end of an RS-232 cable to the COM2 connector on the front
panel of the MGC-100 Control Unit and the other end to the serial port of the
operator station (see RS-232 Pin Assignment, A-3).
