Chapter 2 - Hardware Installation
2-18
4.

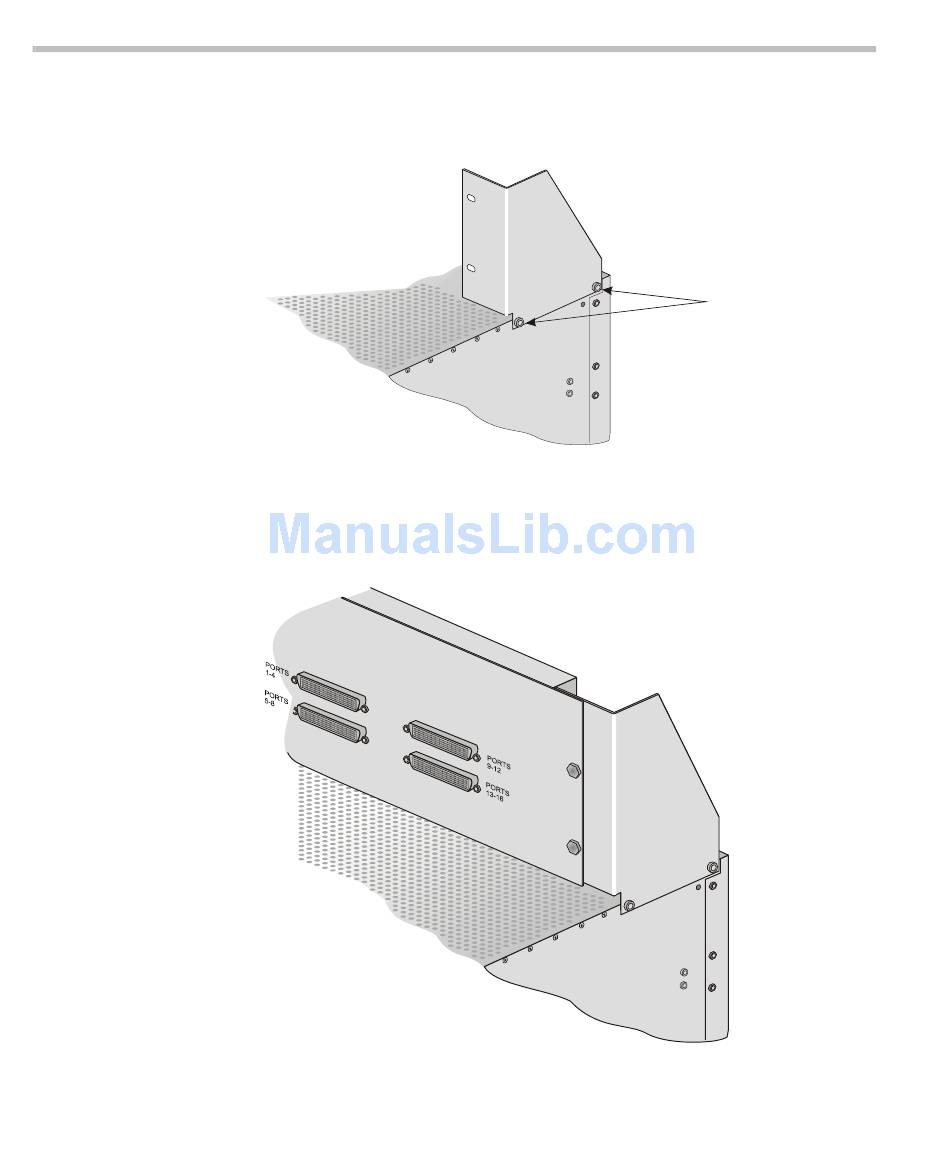

Place the mounting bracket on top of the MCU aligning it against the
screw openings as shown below and tighten the screws.
front
5.
Mount the bracket on the other side of the MCU (repeat step 4).
6.
Place the MPI box with its four 160-pin connectors facing the MCU front
panel between the two mounting brackets. Secure it with the screws
supplied with the MPI Box.
front
rear
tighten
screws
rear
