The MPI-8 Network Interface Module

4-40
MPI is an acronym for the Multi Protocol Interface card. The MPI-8 is a serial
communications interface card that uses certain protocols to communicate to
endpoints, "Data Terminal Equipment" (DTE), or "Data Communications
Equipment" (DCE). The protocols that it uses are RS-449, RS-530, V.35, and
RS-366, which is a dialing protocol.
The MPI-8 Network Interface Module is connected to the DCE (supplied by
the customer) via the MPI box. The front panel of the MPI-8 network
interface contains two 160-pin connectors.
MPI
Stby
Fail
Active
Connection to the
160-pin connector on
the front panel of the
MPI box
Connection to the
160-pin connector on
the front panel of the
MPI box

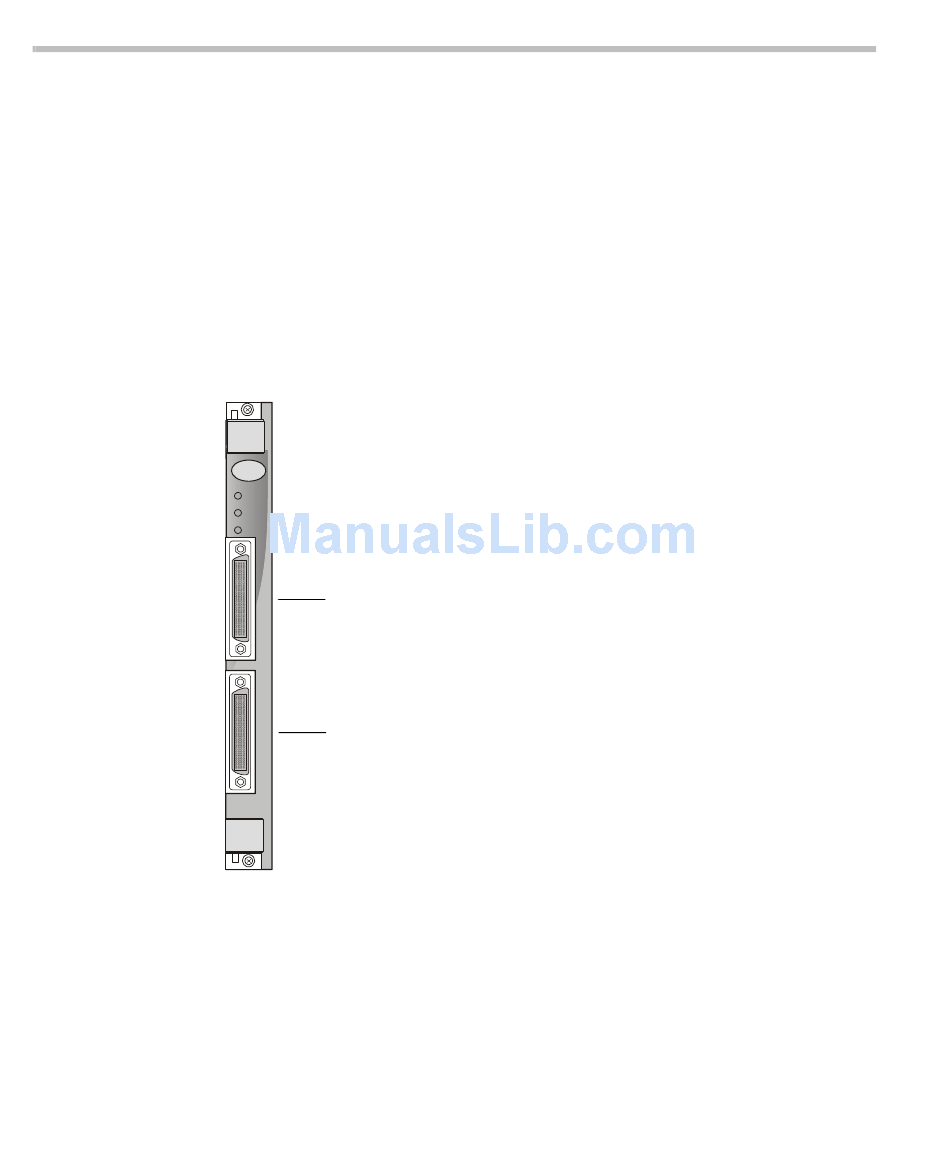

Figure 4-20: MPI-8 Network Interface Module front panel
