7. If the MCU is standalone, reassemble the side panels.
If the MCU is rack mounted, mount the unit on the rack and connect all
the external cables.
PORTS
1-4
PORTS
5-8
CONT NET-8 NET-8 NET-8 NET-E1 MPI
Critical
Stby Stby Stby Stby Stby
Major
Fail Fail Fail Fail Fail
MGC-100
Minor
Active Active Active Active Active
L0
A
Line 1 Line 1 Line 1
Line 2 Line 2 Line 2
Line 3 Line 3 Line 3
Line 4 Line 4 Line 4 B
Power Line 5 Line 5 Line 5
Line A
L1
Line 6 Line 6 Line 6
L2 Line 7 Line 7 Line 7
Line B
L3 Line 8 Line 8 Line 8
PWR PWR
IN OUT IN OUT

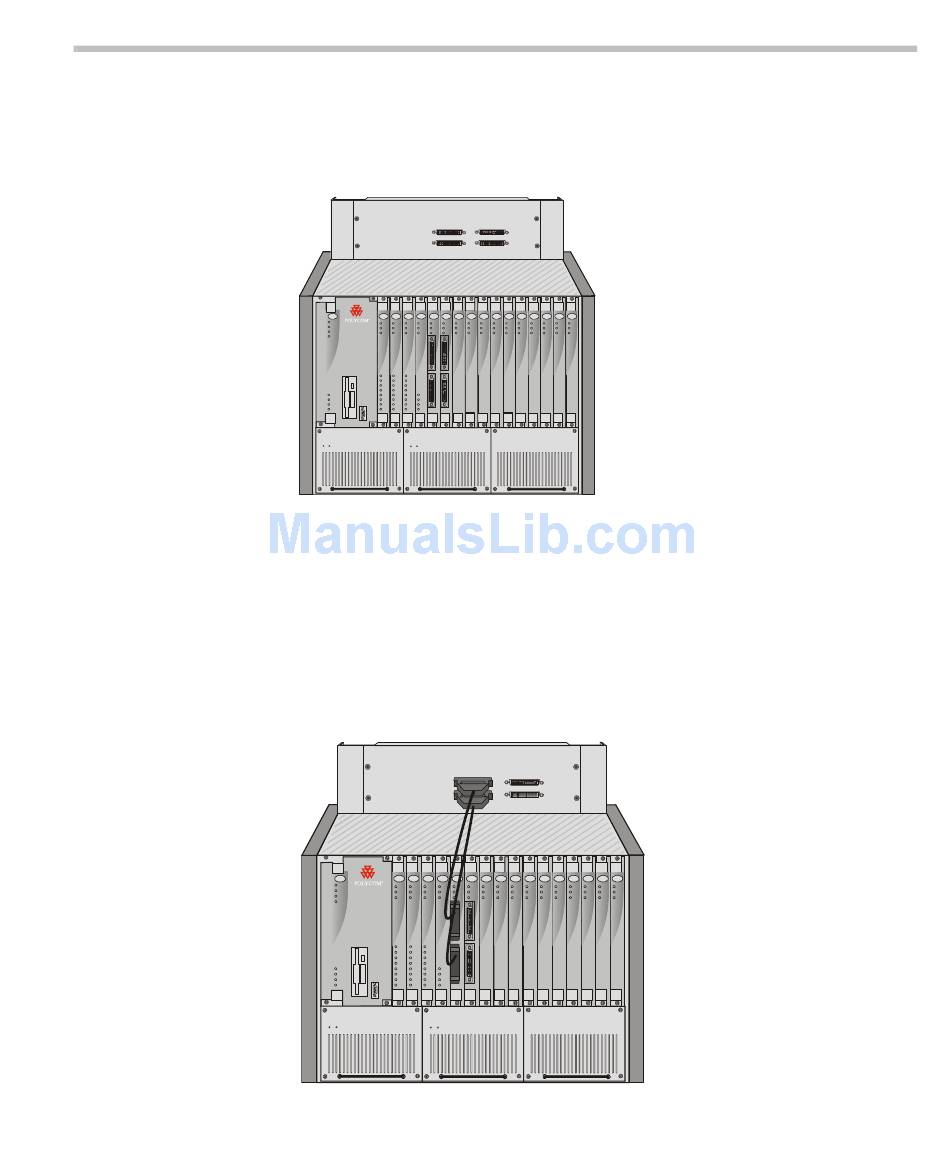

8. Using the cable provided with the MPI kit, connect the 160-pin
connector to Port A of the MPI-8 Network Interface front panel. Connect
the other end of the cable to a (Ports 1-4) 160-pin connector of the MPI
Box; by doing this procedure we have utilized the MPI Box as a MPI-4.
9. Using a second cable, connect the angled 160-pin connector to Port B of
the MPI-8 Network Interface front panel. Connect the other end of the
cable to B (Ports 5-8) 160-pin connector of the MPI Box.
Using this procedure we have utilized the MPI Box as a MPI-8.
CONT NET-8 NET-8 NET-8
Critical
Stby Stby Stby
Major
Fail Fail Fail
MGC-100
Minor
Active Active Active
L0
Line 1 Line 1 Line 1
Line 2 Line 2 Line 2
Line 3 Line 3 Line 3
Line 4 Line 4 Line 4
Power Line 5 Line 5 Line 5
L1 Line 6 Line 6 Line 6
L2 Line 7 Line 7 Line 7
L3 Line 8 Line 8 Line 8
PWR PWR
IN OUT
IN OUT
MGC Hardware and Installation Manual
PORTS
9-12
PORTS
13-16
MPI DATA DATA VIDEO VIDEO VIDEO VIDEO AUDIO AUDIO AUDIO AUDIO
Stby Stby Stby Stby Stby Stby Stby Stby Stby Stby Stby
Fail Fail Fail Fail Fail Fail Fail Fail Fail Fail Fail
Active Active Active Active Active Active Active Active Active Active Active
A
B
PWR
IN OUT
PORTS PORTS
1-4 9-12
PORTS
PORTS
13-16
5-8
NET-E1 MPI MPI DATA DATA VIDEO VIDEO VIDEO VIDEO AUDIO AUDIO AUDIO AUDIO
Stby Stby Stby Stby Stby Stby Stby Stby Stby Stby Stby Stby Stby
Fail Fail Fail Fail Fail Fail Fail Fail Fail Fail Fail Fail Fail
Active Active Active Active Active Active Active Active Active Active Active Active Active
A A
B B
Line A
Line B
PWR
IN OUT
