Dual Detector, Pre-Signal, and Abort Switch with Delay,
Program Custom Control
Equations (continued)
Technical Manuals Online! - http://www.tech-man.com
Equation 6. If one detector in List L26 goes into alarm, SIG1 turns on steady.
This functions as a pre-signal for system operators.
Equation 7. This equation turns off SIG1 and sounds a slow march tone on
SIG2 if either two detectors activate in list L26 or if a pull station activates.
Equation 8. This equation turns SIG2 on steady if any one of the releasing
circuits (NACs) is ON (i.e., it is discharging).

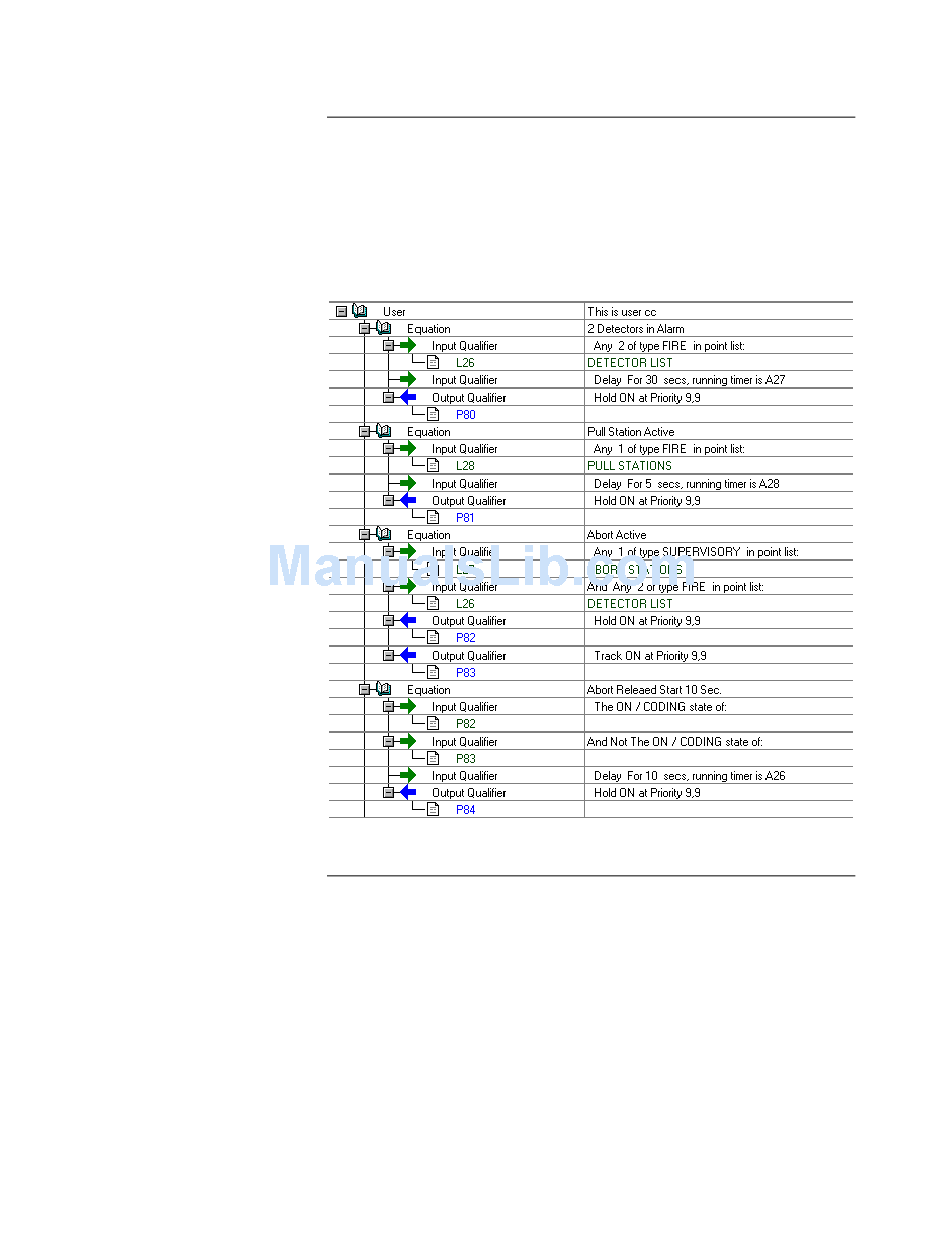

Figure 3-6. Custom Control (Part One)
