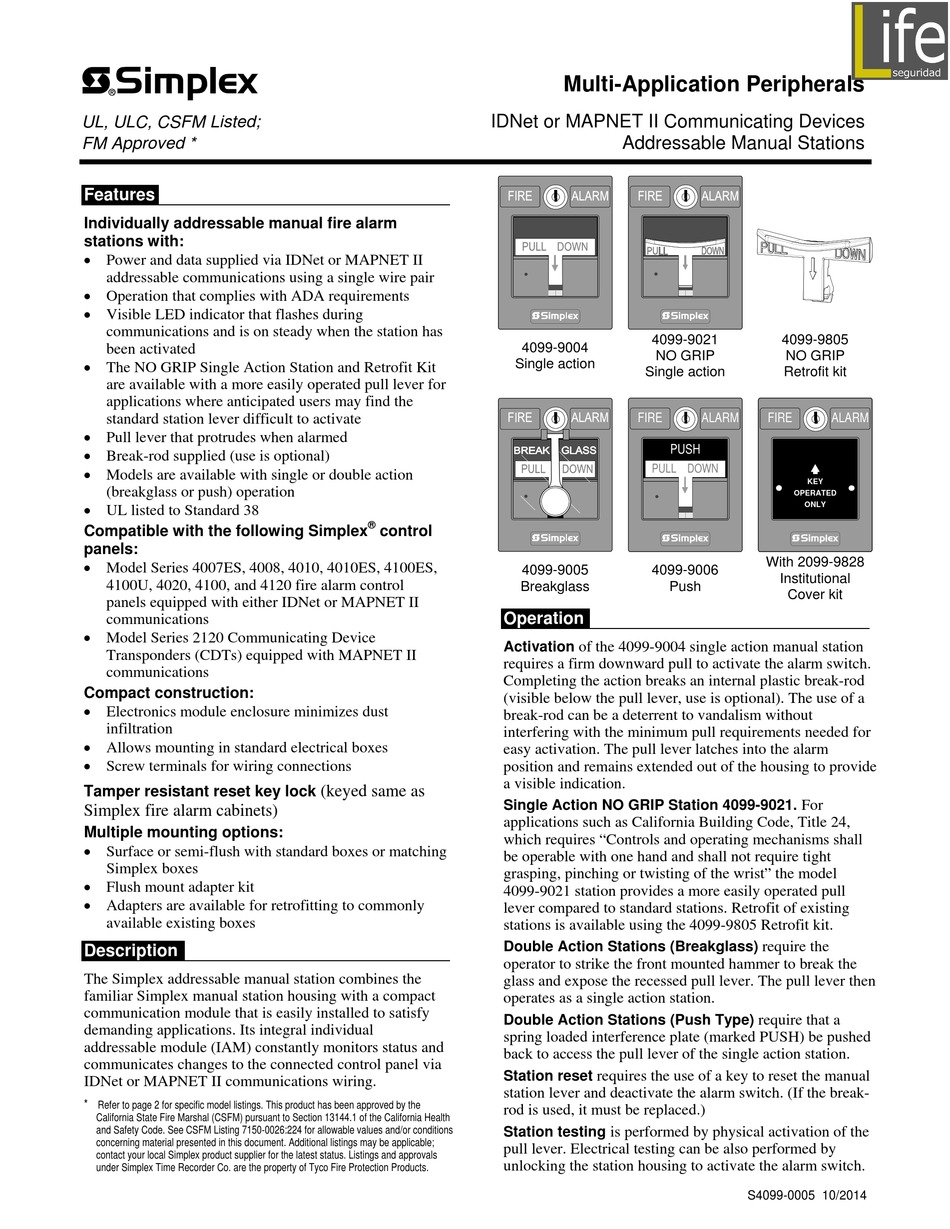

Simplex 4099-9004 Quick Start Manual

UL, ULC, CSFM Listed;
FM Approved *
Features
Individually addressable manual fire alarm
stations with:
 Power and data supplied via IDNet or MAPNET II
addressable communications using a single wire pair
 Operation that complies with ADA requirements
 Visible LED indicator that flashes during
communications and is on steady when the station has
been activated
 The NO GRIP Single Action Station and Retrofit Kit
are available with a more easily operated pull lever for
applications where anticipated users may find the
standard station lever difficult to activate
 Pull lever that protrudes when alarmed
 Break-rod supplied (use is optional)
 Models are available with single or double action
(breakglass or push) operation
 UL listed to Standard 38
Compatible with the following Simplex
panels:
 Model Series 4007ES, 4008, 4010, 4010ES, 4100ES,
4100U, 4020, 4100, and 4120 fire alarm control
panels equipped with either IDNet or MAPNET II
communications
 Model Series 2120 Communicating Device
Transponders (CDTs) equipped with MAPNET II
communications
Compact construction:
 Electronics module enclosure minimizes dust
infiltration
 Allows mounting in standard electrical boxes
 Screw terminals for wiring connections
Tamper resistant reset key lock
Simplex fire alarm cabinets)
Multiple mounting options:
 Surface or semi-flush with standard boxes or matching
Simplex boxes
 Flush mount adapter kit
 Adapters are available for retrofitting to commonly
available existing boxes
Description
The Simplex addressable manual station combines the
familiar Simplex manual station housing with a compact
communication module that is easily installed to satisfy
demanding applications. Its integral individual
addressable module (IAM) constantly monitors status and
communicates changes to the connected control panel via
IDNet or MAPNET II communications wiring.
*
Refer to page 2 for specific model listings. This product has been approved by the
California State Fire Marshal (CSFM) pursuant to Section 13144.1 of the California Health
and Safety Code. See CSFM Listing 7150-0026:224 for allowable values and/or conditions
concerning material presented in this document. Additional listings may be applicable;
contact your local Simplex product supplier for the latest status. Listings and approvals
under Simplex Time Recorder Co. are the property of Tyco Fire Protection Products.
IDNet or MAPNET II Communicating Devices
®
control
(keyed same as
Multi-Application Peripherals
Addressable Manual Stations
4099-9021
4099-9004
NO GRIP
Single action
Single action
FIRE
PUSH
PULL DOWN
4099-9005 4099-9006
Breakglass Push
Operation

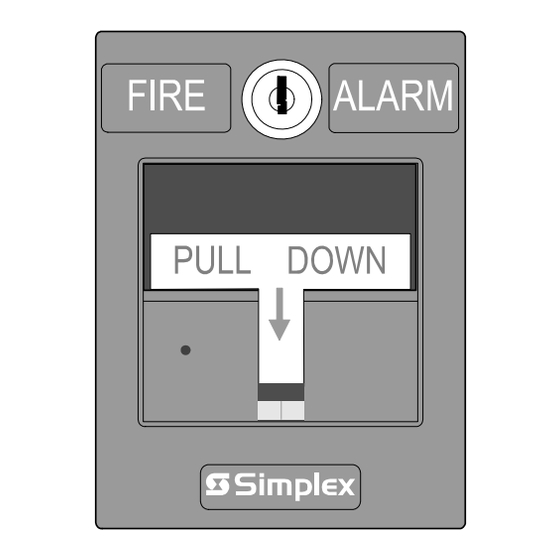

Activation of the 4099-9004 single action manual station
requires a firm downward pull to activate the alarm switch.
Completing the action breaks an internal plastic break-rod
(visible below the pull lever, use is optional). The use of a
break-rod can be a deterrent to vandalism without
interfering with the minimum pull requirements needed for
easy activation. The pull lever latches into the alarm
position and remains extended out of the housing to provide
a visible indication.
Single Action NO GRIP Station 4099-9021.
applications such as California Building Code, Title 24,
which requires "Controls and operating mechanisms shall
be operable with one hand and shall not require tight
grasping, pinching or twisting of the wrist" the model
4099-9021 station provides a more easily operated pull
lever compared to standard stations. Retrofit of existing
stations is available using the 4099-9805 Retrofit kit.
Double Action Stations (Breakglass)
operator to strike the front mounted hammer to break the
glass and expose the recessed pull lever. The pull lever then
operates as a single action station.
Double Action Stations (Push Type)
spring loaded interference plate (marked PUSH) be pushed
back to access the pull lever of the single action station.
Station reset requires the use of a key to reset the manual
station lever and deactivate the alarm switch. (If the break-
rod is used, it must be replaced.)
Station testing is performed by physical activation of the
pull lever. Electrical testing can be also performed by
unlocking the station housing to activate the alarm switch.
4099-9805
NO GRIP
Retrofit kit
ALARM FIRE FIRE ALARM ALARM
KEY KEY
OPERATED OPERATED
ONLY ONLY
With 2099-9828
Institutional
Cover kit
For
require the
require that a
S4099-0005 10/2014
