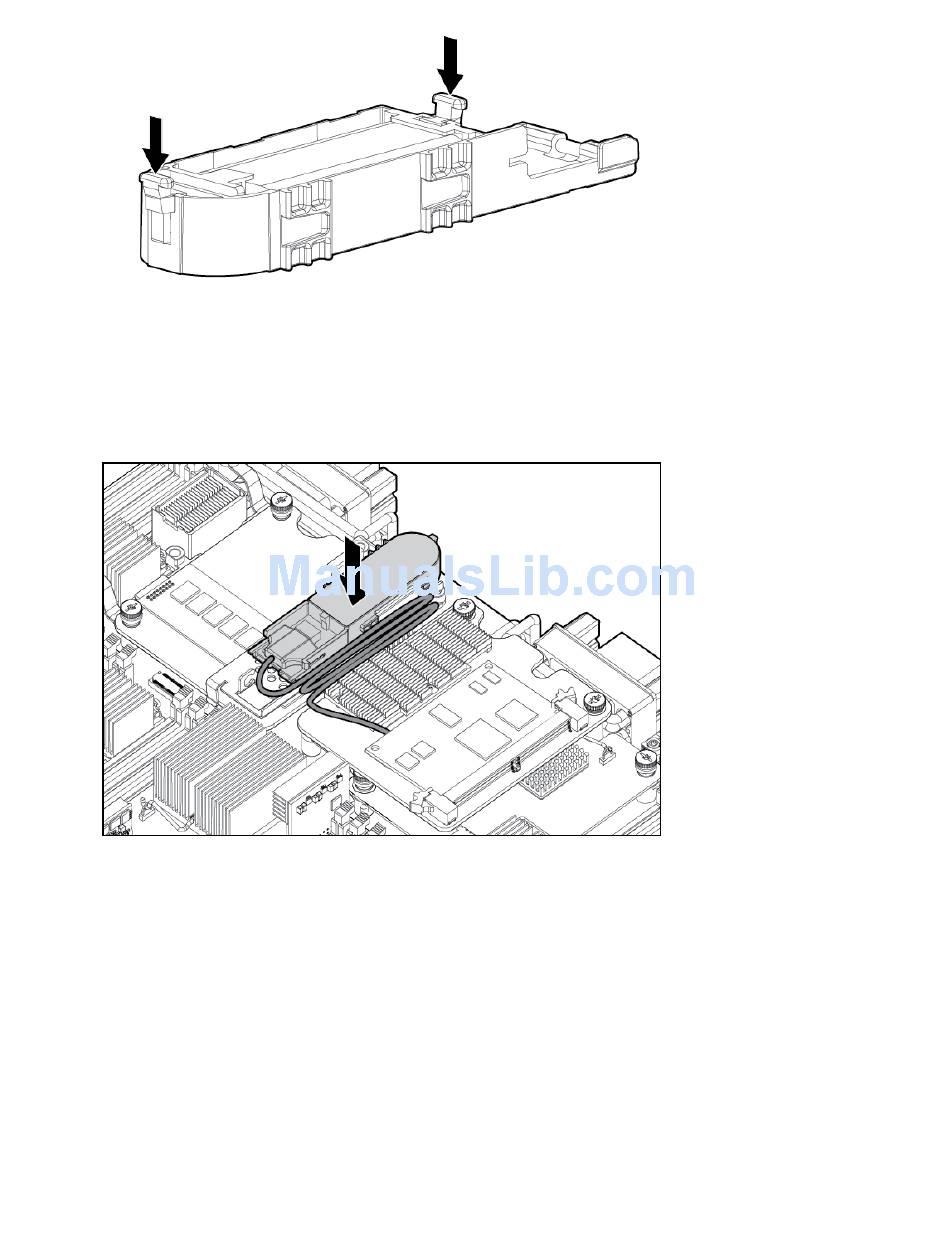

1. Position the Supercap Pack with the print side down and push the end of the cable that is connected
to the Supercap Pack under the mounting bracket's C-hook, routing the cable so its supercap end is
on the side of the hook that is away from slot 3.
2. Push the other end of the Supercap Pack down between the two restraining clips.
3. Consolidate and secure remaining cable length using tie wrap or similar retention method.
To remove the component, reverse the procedure.

Replacing the access panel

Procedure
1. Place the access panel onto the server blade by lining up the keyways on the panel to the posts on the
server blade chassis.
2. Slide the access panel toward the front of the server blade until the panel lock button snaps into place.

Upgrading a conjoined configuration

This section contains information required to complete an upgrade of a BL860c i4, BL870c i4, or BL890c
i4 server blade. This document expands on the information provided in the Read This First document
which is included in the upgrade kit.
Replacing the access panel 59
