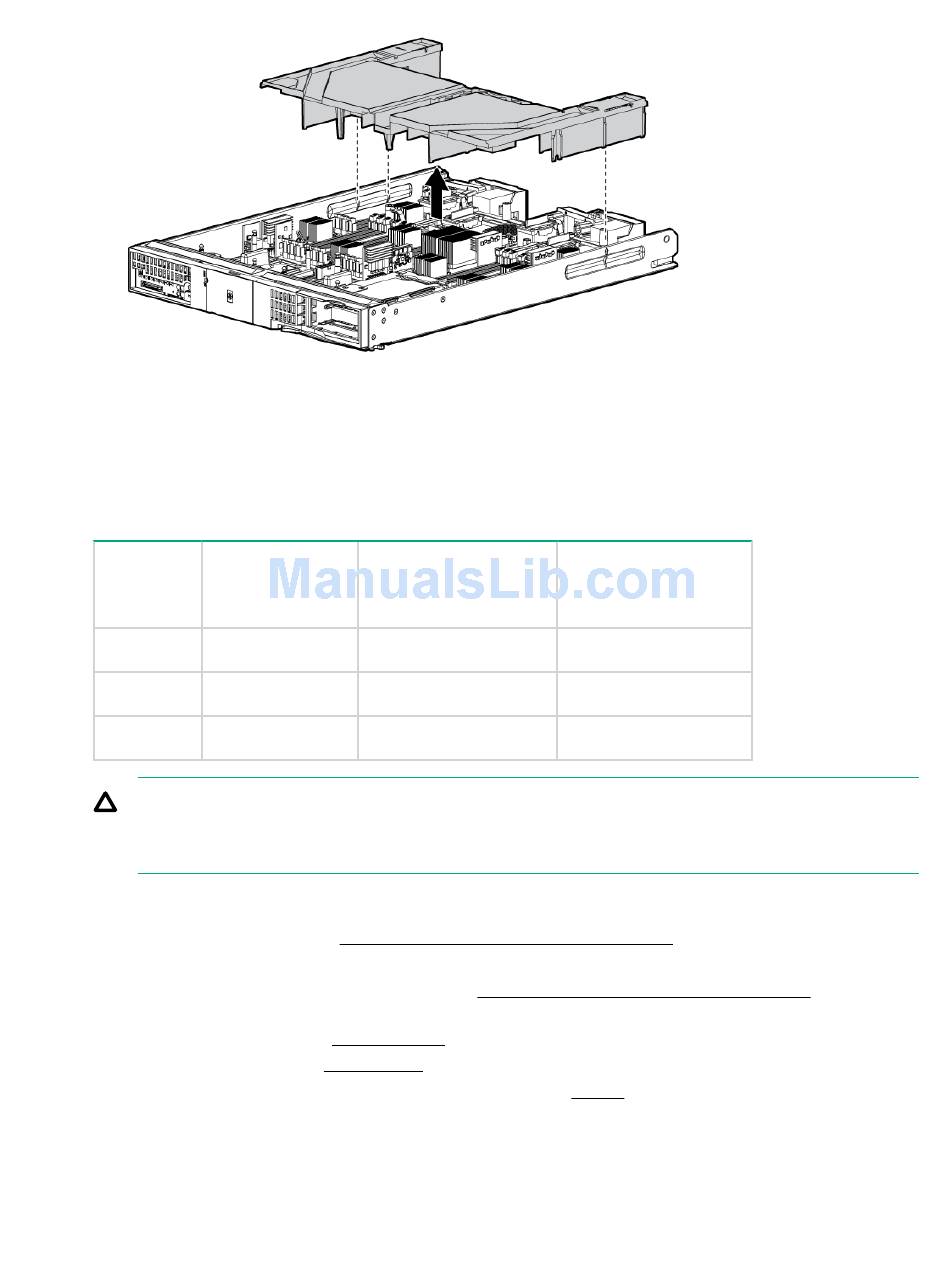

To replace the component, reverse the removal procedure.

DIMMs

The memory subsystem supports only DDR3 SDRAM technology using industry-standard 1.2" high
DIMMs.
Single BL860c i4 Min /
DIMM sizes Max Memory
size
4 GB 8 GB / 96 GB
8 GB 16 GB / 192 GB
16 GB 32 GB / 384 GB
CAUTION:
When a single DIMM is removed it must either be replaced with a new matching DIMM, or the DIMM
load order must be adjusted.
Procedure
1. Power off the server blade. (Preparing the server blade for servicing on page 112).
2. For the conjoined products only, remove the Blade Link.
3. Remove the server blade from the enclosure (Preparing the server blade for servicing on page
112).
4. Remove the access panel (Access panel on page 117).
5. Remove the DIMM baffle (DIMM baffle on page 120).
6. Locate the DIMM slots on the server blade system board (Step 6).
7. Open the DIMM slot latches for the DIMMs that are to be removed.
8. Remove the DIMM from the slot.
BL870c i4 Min / Max
Memory size
16 GB / 192 GB
32 GB / 384 GB
64 GB / 768 GB
BL890c i4 Min / Max
Memory size
32 GB / 384 GB
32 GB / 768 GB
64 GB / 1.5 TB
DIMMs 121
