Preparing The Server Blade For Servicing - HP Integrity BL860C i4 User's & Service Manual

3 BL8x0c i4 Base Unit (part number
AM377-2001A)
7 SAS disk backplane (part number
AD399-60009)
10 System battery
11 Smart Array battery
2 Front bezel
Description with Part Number
1 SAS Hard Drive Blank
2 System Chassis (part number AD399-2102F)
3 CPU Heatsink (part number AD399-2120D)
4 CPU Socket Dust Cover (& airflow baffle) (part
number AD399-2134A)
5 Blade Top Cover (part number AD399-2101B)
6 Memory Airflow Baffle (part number
AD399-2128B)

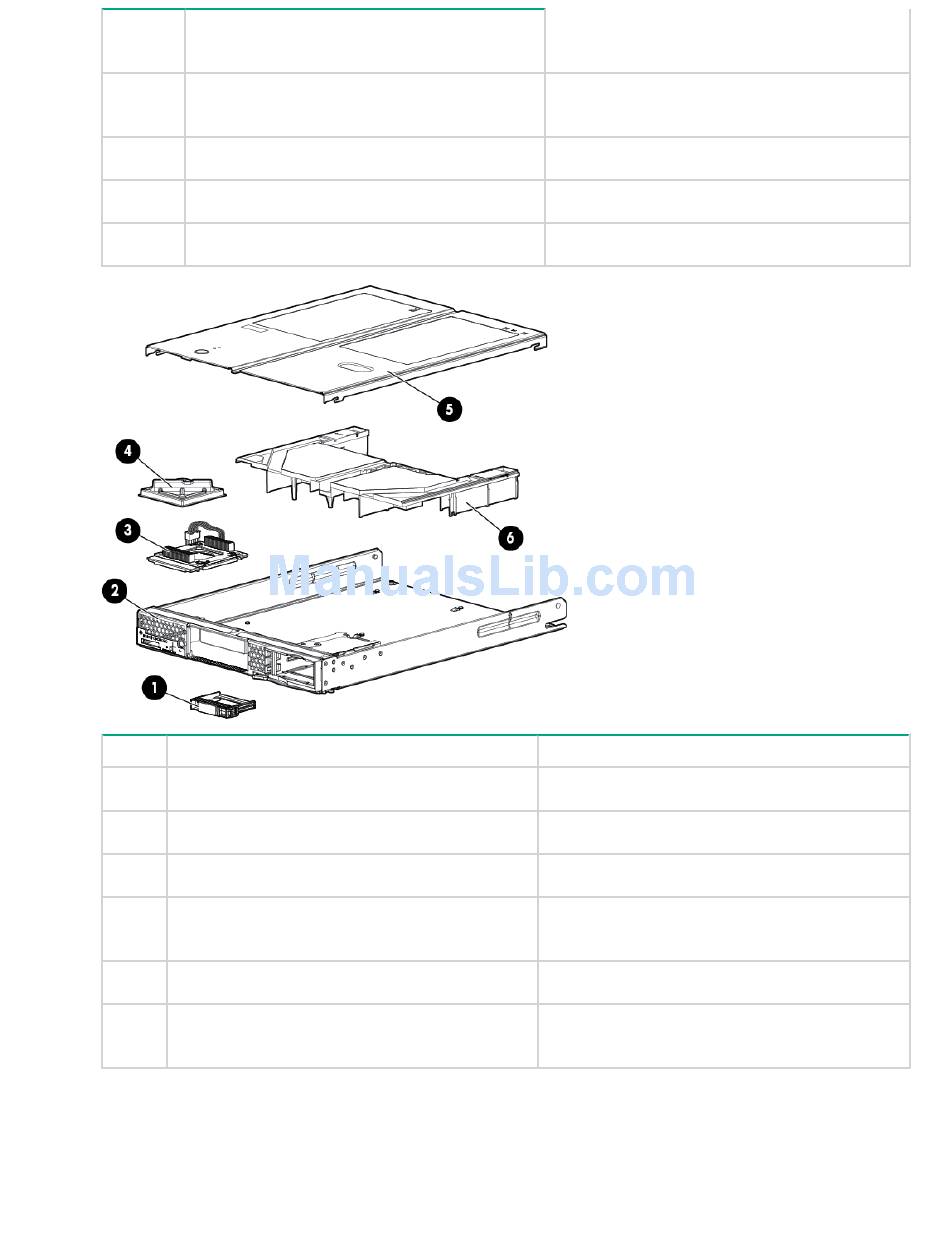

Preparing the server blade for servicing

To service an internal server blade component, power off the server blade and remove it from the server
blade enclosure.
112 Preparing the server blade for servicing
AM377-6901A
AD399-67009
—
—
—
Spare Part Number
—
AD399-2102F
612269-001
AD399-2134A
AD399-2101B
AD399-2128B
