QuickSpecs
Overview

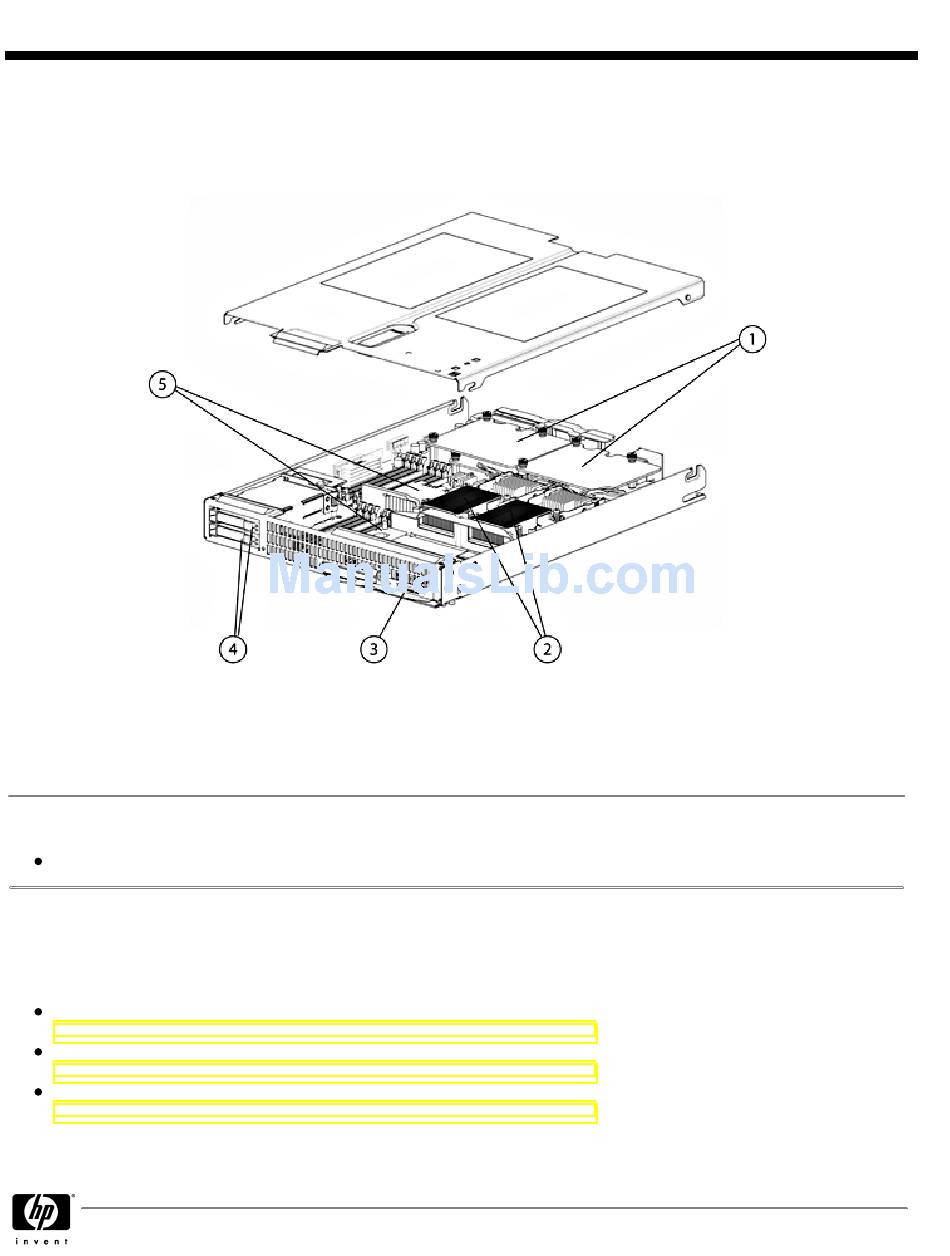

1. Three Mezzanine slots
2. Up to two Intel® Itanium® 9100 series processors
3. Local I/O connector
What's New
Support for Hot Plug SAS Enterprise 300GB 3G SAS 10K SFF DP ENT Hard Drive
At A Glance
This document covers the HP Integrity BL860c server blade only. For more information on HP BladeSystem c-Class
Enclosures and HP BladeSystem c-Class Interconnects, please see the following QuickSpecs:
HP BladeSystem c3000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12790_na/12790_na.html
HP BladeSystem c7000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12810_na/12810_na.html
HP BladeSystem c-Class Interconnect Components QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12524_na/12524_na.html
The HP Integrity BL860c delivers the performance, reliability, and availability on 64-bit operating systems for the
ultimate in scalability and flexibility in deployment: HP-UX 11i v3/v2, 64-bit versions of Red Hat and SUSE Linux,
MicrosoftWindows® Server 2008 for Itanium-based systems, Windows Server and 2003 for Itanium-based systems
DA - 12671 U.S. QuickSpecs — Version 18 — 2/18/2009
HP Integrity BL860c Server Blade
4. Two small form factor (SFF) hot-plug drive bays
5. Up to 48 GB PC2-4200, DDR2 memory (12 DIMMs)
Page 1
