NOTE:
Mezzanine slot 1 must contain the P711m Controller, another mezzanine card, or the mezzanine
card blank. If you are installing the P711m card in mezzanine slot 1, do so now following the
instructions "Installing the P711m Controller Board." If you are not installing the P711m card in
mezzanine slot 1, and no other mezzanine card is present in slot 1, then install the mezzanine
card blank at this time.

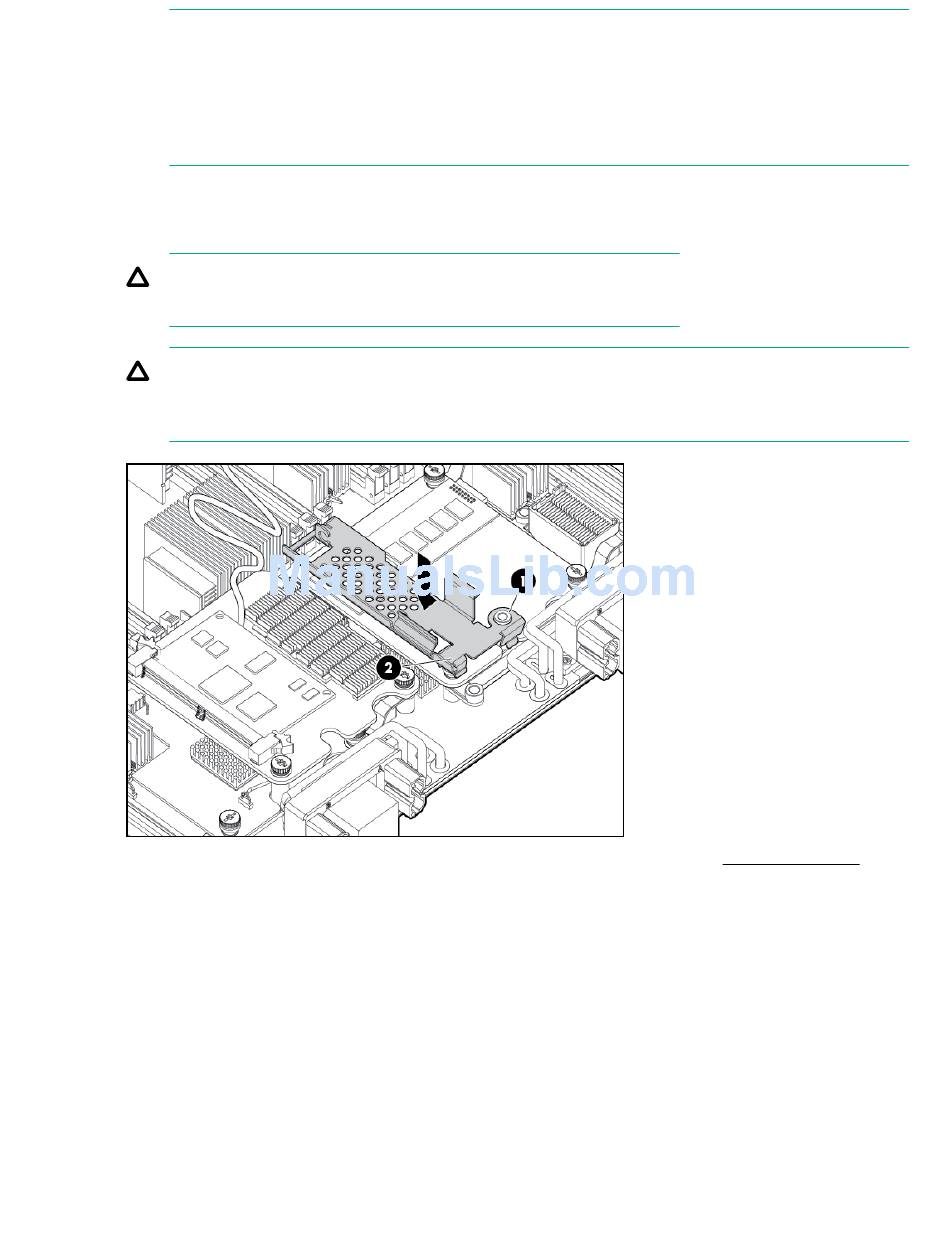

5. Clip the mounting bracket onto the mezzanine card or mezzanine card blank.
6. Press the bracket thumbscrew clip over the thumbscrew closest to the mezzanine post.
7. Push the remaining bracket foot over the other edge of the mezzanine card or mezzanine card blank.
CAUTION:
Push only enough to anchor the bracket, keeping the bracket level.
CAUTION:
To avoid damage to the power cable ensure the battery bracket does not pinch the power cable
to the power connectors.
8. Replace any mezzanine cards that you had to remove from mezzanine slot 2 (Mezzanine cards on
page 127).
To remove the component, reverse the procedure.

Installing the P711m controller board

This card is supported in slots 1, 2, and 3 on the BL860c i4, BL870c i4, and BL890c i4 server blades.
