8.1.1.1 CONFIGURING A STATIC IP ADDRESS ON WINDOWS 7
1. Click on the network icon on the system tray.
2. Click on Open Network and Sharing Center.
3. In the top left corner of the Network and Sharing Center window click on Change adapter settings.
4. Right click on the network port that the Apollo III is connected to and select Properties.
5. From the list below double click on Internet Protocol Version 4.
6. Fill out the options as seen below.
7. Press [OK] and close out the rest of the windows.
The control now has the correct static IP address.

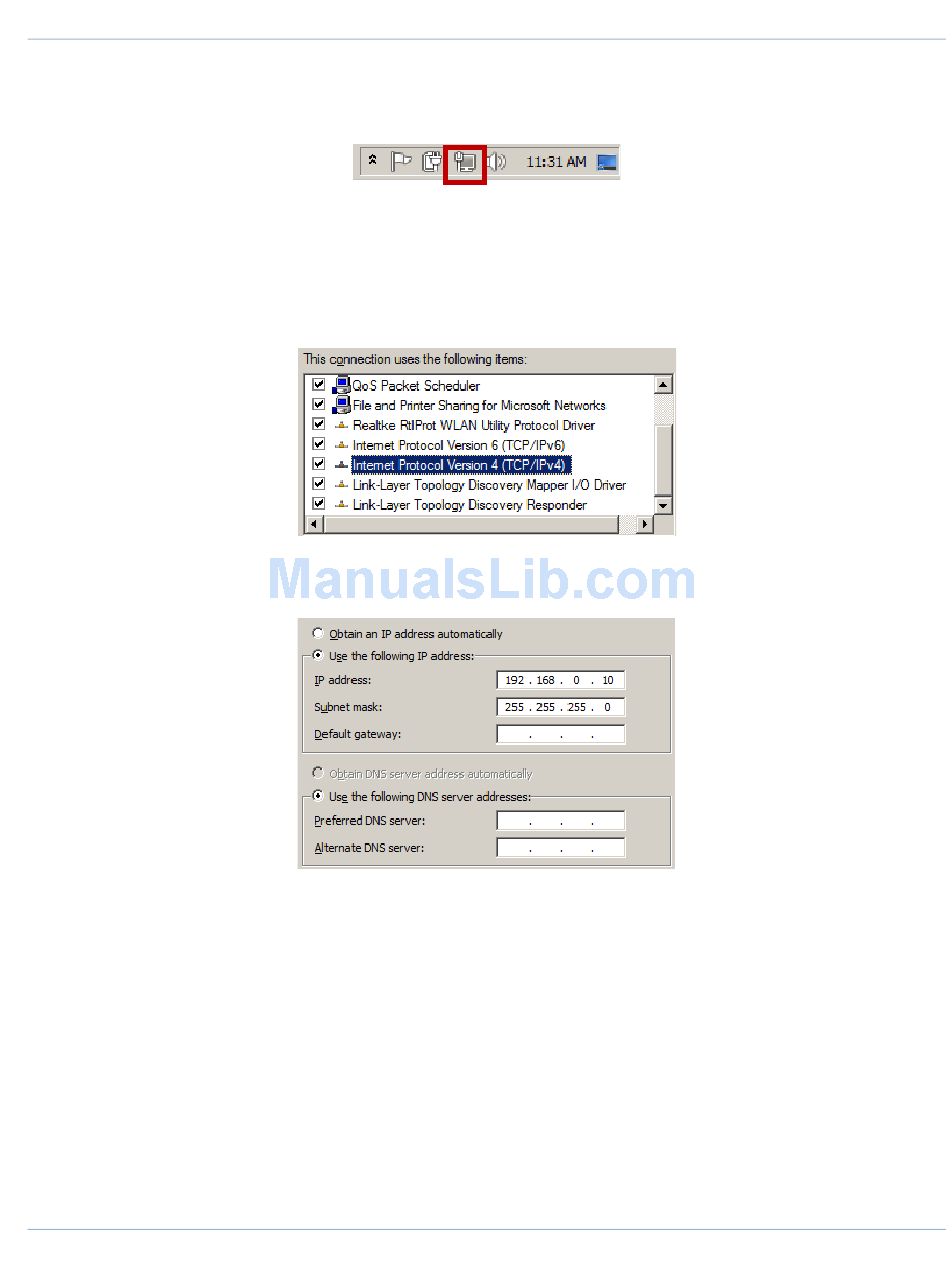

FIGURE 47 SYSTEM TRAY
FIGURE 48 LOCAL AREA CONNECTION PROPERTIES
FIGURE 49 IPV4 PROPERTIES
