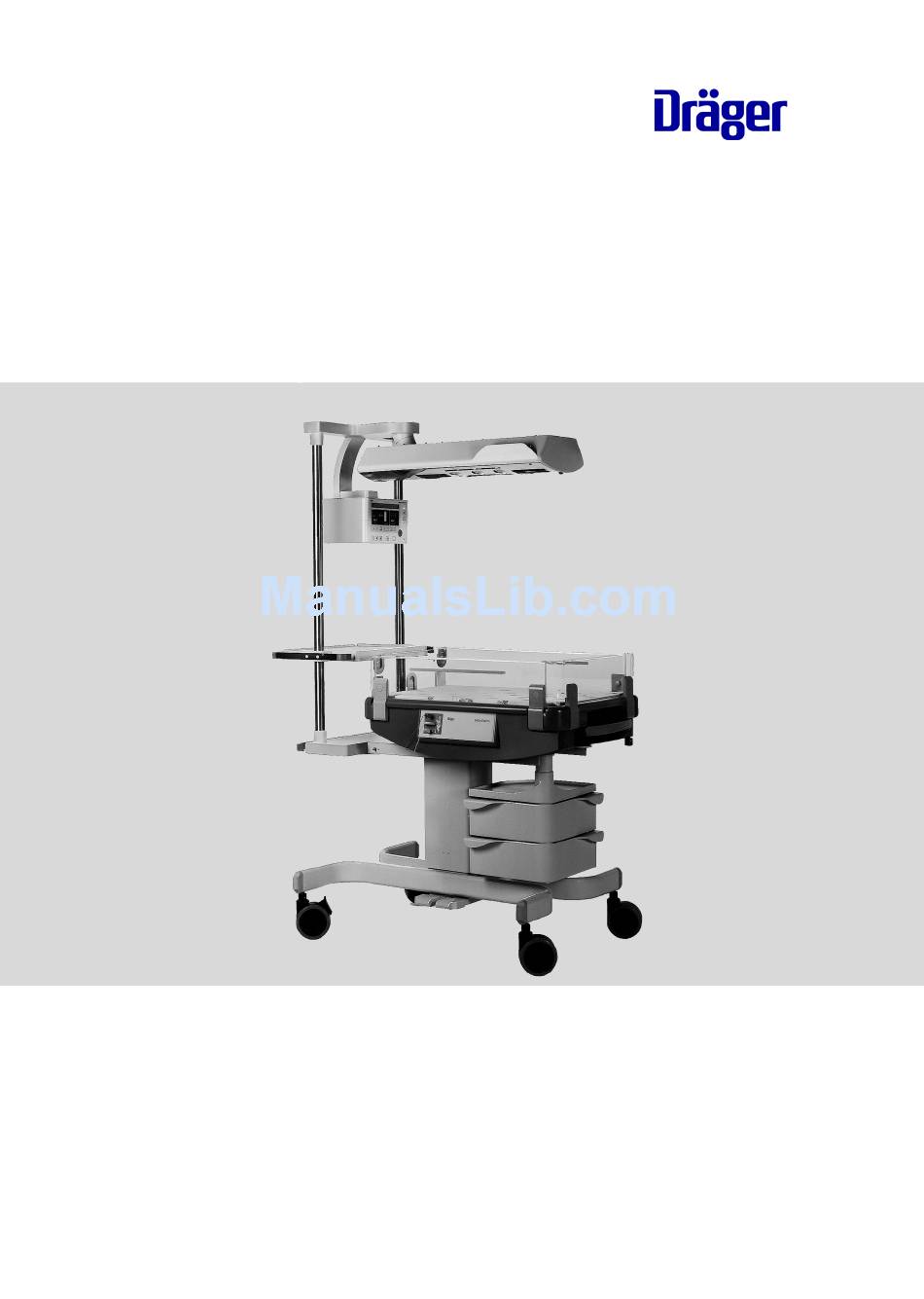

Dräger Babytherm 8004 Instructions For Use Manual

Open intensive care, resuscitation.
Hide thumbs

Advertisement

Babytherm
WARNING
For a full understanding of the perform-
ance characteristics of this medical
device, the user should carefully read
these Instructions for Use before use of
the medical device.
8004/8010
®
Open Intensive Care, Resuscitation
Instructions for Use
