Right view

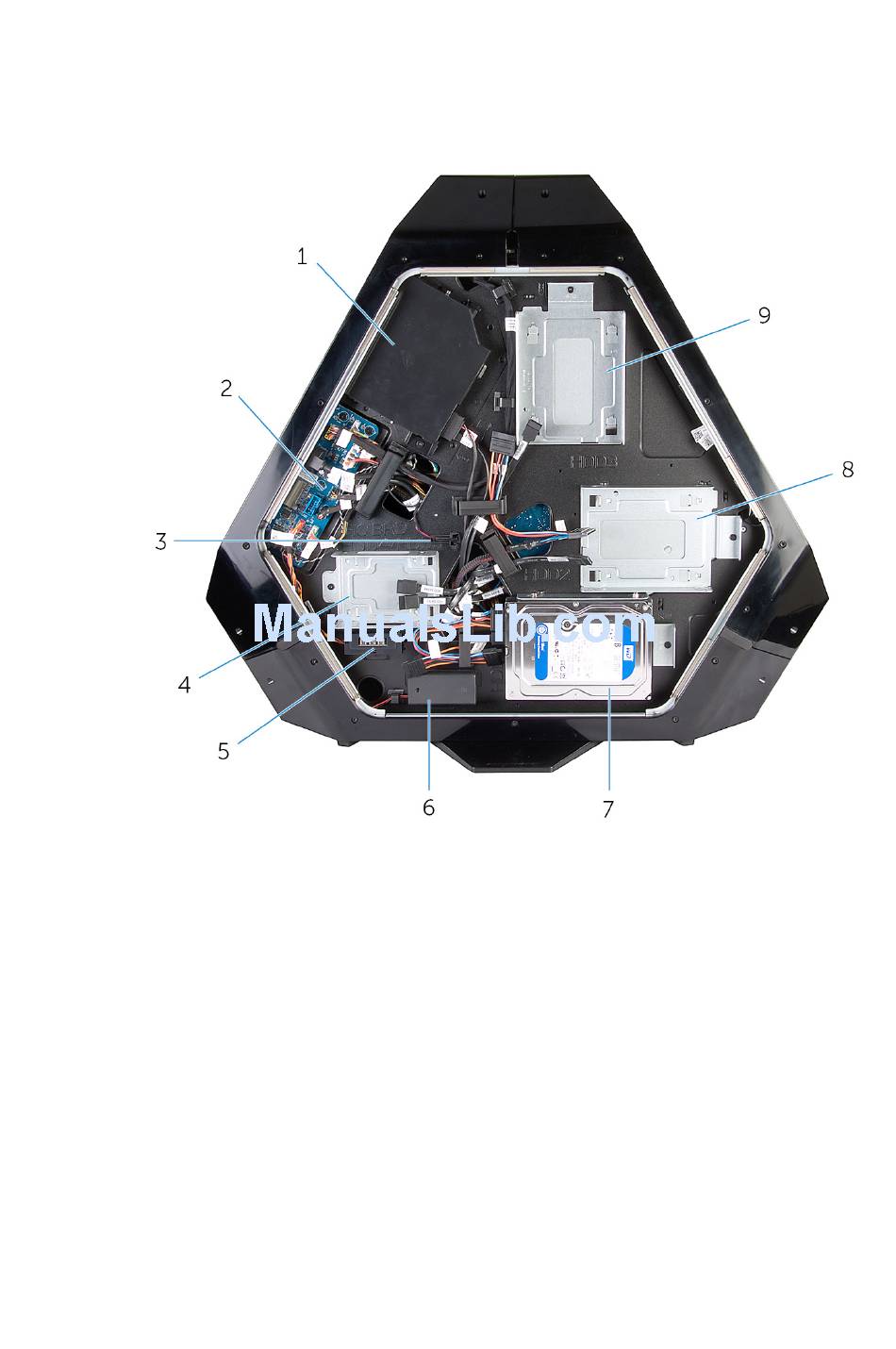

Figure 2. Right view
1
optical drive (ODD)
3
drive-bay heat-sensor
5
AlienFX side-panel connector
7
3.5-inch drive bracket (HDD1)
9
3.5-inch drive bracket (HDD3)
2
I/O board (IO BRD)
4
2.5-inch drive bracket (HDD4/
HDD5)
6
rear I/O accessibility lighting
batteries
8
3.5-inch drive bracket (HDD2)
23
