Installation
connecting a motor to the frequency converter, always use
screened motor cable.
Cable
Impedance
Max. cable length
T T able 2.12

2.7 Optional Equipment

2.7.1 Load Share Terminals

Load share terminals enable the connection of the DC
circuits of several frequency converters. Load share
terminals are available in IP20 frequency converters and
extend out the top of the frequency converter. A terminal
cover, supplied with the frequency converter, must be
installed to maintain the IP20 rating of the enclosure.
Illustration 2.22 shows both the covered and uncovered
terminals.

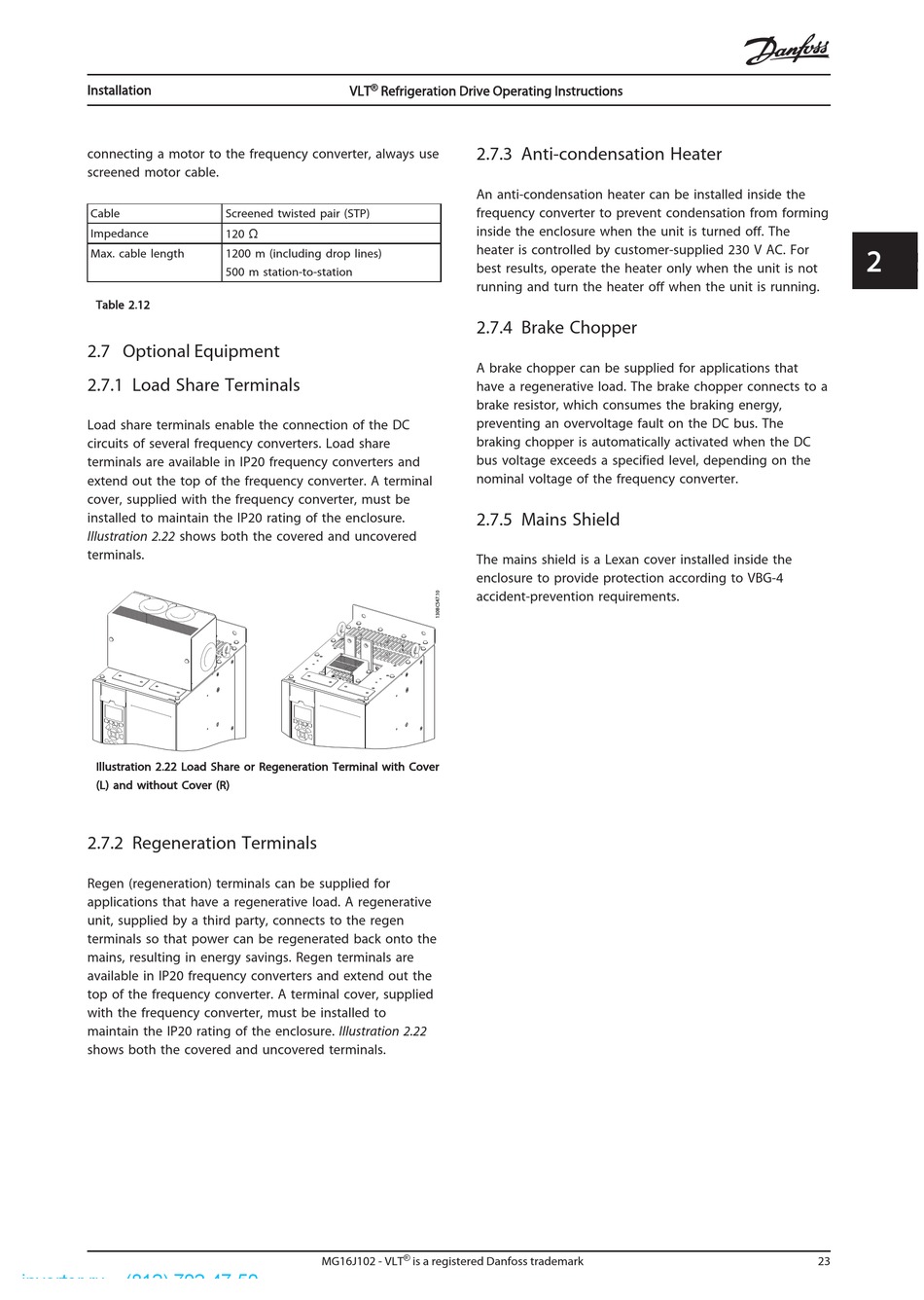

Illustration 2.22 Load Share or Regeneration Terminal with Cover
(L) and without Cover (R)

2.7.2 Regeneration Terminals

Regen (regeneration) terminals can be supplied for
applications that have a regenerative load. A regenerative
unit, supplied by a third party, connects to the regen
terminals so that power can be regenerated back onto the
mains, resulting in energy savings. Regen terminals are
available in IP20 frequency converters and extend out the
top of the frequency converter. A terminal cover, supplied
with the frequency converter, must be installed to
maintain the IP20 rating of the enclosure. Illustration 2.22
shows both the covered and uncovered terminals.
inverter.ru (812) 702-47-50
VLT Refrigeration Drive Operating Instructions
Screened twisted pair (STP)
120
1200 m (including drop lines)
500 m station-to-station
MG16J102 - VLT is a registered Danfoss trademark

2.7.3 Anti-condensation Heater

An anti-condensation heater can be installed inside the
frequency converter to prevent condensation from forming
inside the enclosure when the unit is turned off. The
heater is controlled by customer-supplied 230 V AC. For
best results, operate the heater only when the unit is not
running and turn the heater off when the unit is running.

2.7.4 Brake Chopper

A brake chopper can be supplied for applications that
have a regenerative load. The brake chopper connects to a
brake resistor, which consumes the braking energy,
preventing an overvoltage fault on the DC bus. The
braking chopper is automatically activated when the DC
bus voltage exceeds a specified level, depending on the
nominal voltage of the frequency converter.

2.7.5 Mains Shield

The mains shield is a Lexan cover installed inside the
enclosure to provide protection according to VBG-4
accident-prevention requirements.
