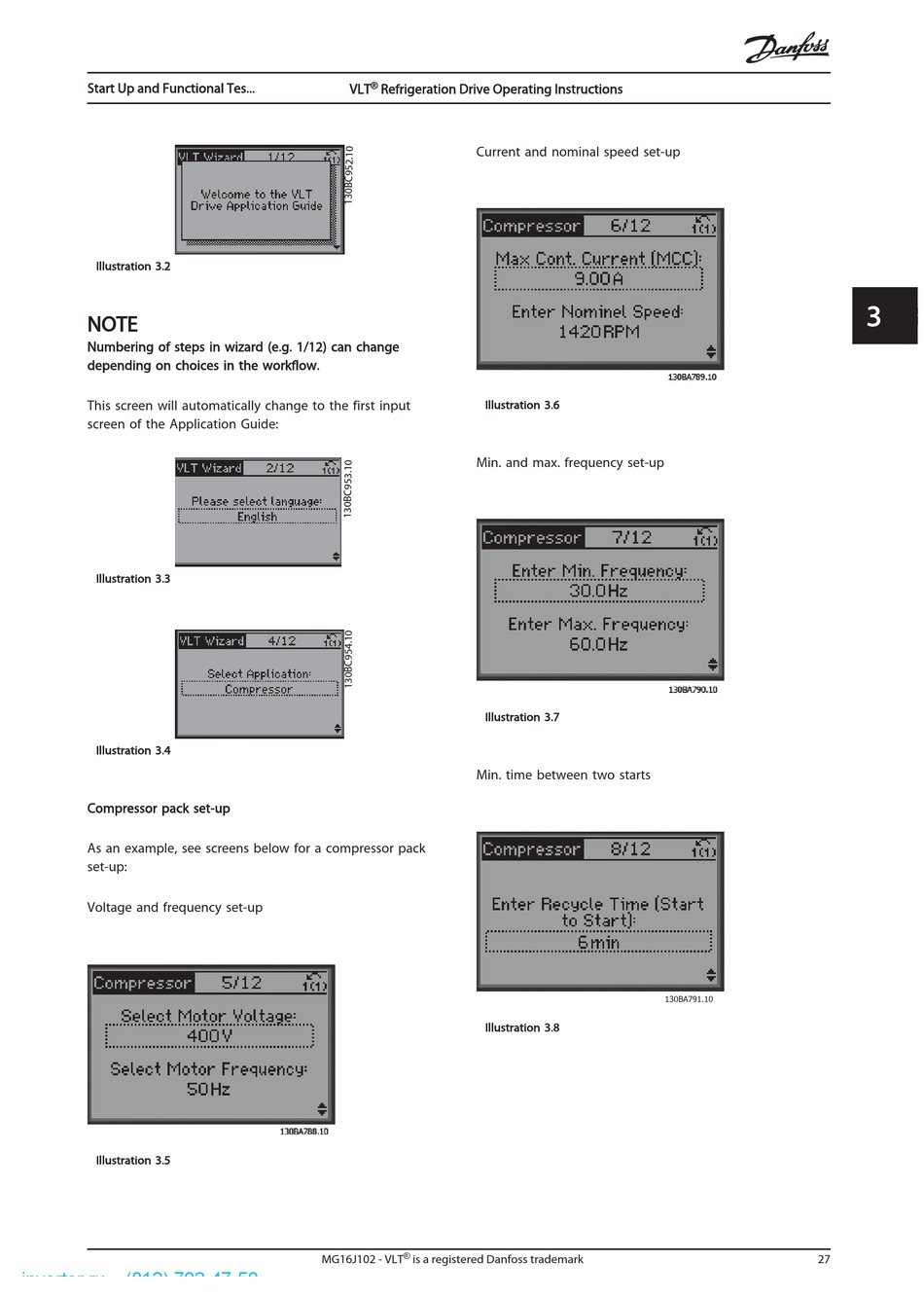

Danfoss VLT FC 103 Operating Instructions Manual page 31

Start Up and Functional Tes...
I I llustration 3.2
NOTE
Numbering of steps in wizard (e.g. 1/12) can change
depending on choices in the workflow.
This screen will automatically change to the first input
screen of the Application Guide:
Illustration 3.3
Illustration 3.4
Compressor pack set-up
As an example, see screens below for a compressor pack
set-up:
Voltage and frequency set-up
Illustration 3.5
inverter.ru (812) 702-47-50
VLT Refrigeration Drive Operating Instructions
Current and nominal speed set-up
Illustration 3.6
Min. and max. frequency set-up
Illustration 3.7
Min. time between two starts
Illustration 3.8
MG16J102 - VLT is a registered Danfoss trademark
3 3
