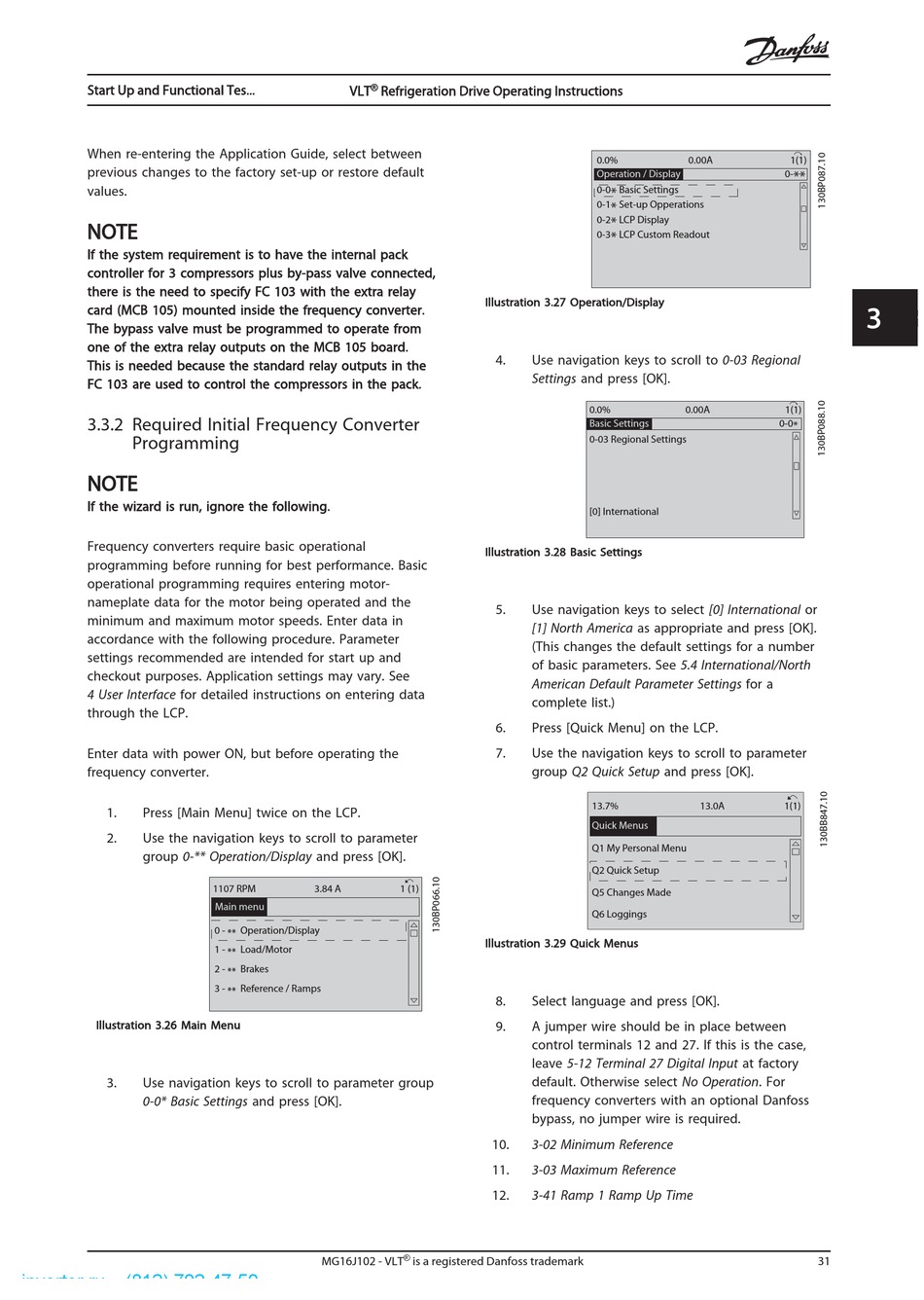

Danfoss VLT FC 103 Operating Instructions Manual page 35

Start Up and Functional Tes...
When re-entering the Application Guide, select between
previous changes to the factory set-up or restore default
values.
N N OTE
If the system requirement is to have the internal pack
controller for 3 compressors plus by-pass valve connected,
there is the need to specify FC 103 with the extra relay
card (MCB 105) mounted inside the frequency converter.
The bypass valve must be programmed to operate from
one of the extra relay outputs on the MCB 105 board.
This is needed because the standard relay outputs in the
FC 103 are used to control the compressors in the pack.
3.3.2 Required Initial Frequency Converter
Programming
NOTE
If the wizard is run, ignore the following.
Frequency converters require basic operational
programming before running for best performance. Basic
operational programming requires entering motor-
nameplate data for the motor being operated and the
minimum and maximum motor speeds. Enter data in
accordance with the following procedure. Parameter
settings recommended are intended for start up and
checkout purposes. Application settings may vary. See
4 User Interface for detailed instructions on entering data
through the LCP.
Enter data with power ON, but before operating the
frequency converter.
1. Press [Main Menu] twice on the LCP.
2. Use the navigation keys to scroll to parameter
group 0-** Operation/Display and press [OK].
Illustration 3.26 Main Menu
3. Use navigation keys to scroll to parameter group
0-0* Basic Settings and press [OK].
inverter.ru (812) 702-47-50
VLT Refrigeration Drive Operating Instructions
1107 RPM 3.84 A
Main menu
0 - ** Operation/Display
1 - ** Load/Motor
2 - ** Brakes
3 - ** Reference / Ramps
MG16J102 - VLT is a registered Danfoss trademark
Illustration 3.27 Operation/Display
4. Use navigation keys to scroll to 0-03 Regional
Settings and press [OK].
Illustration 3.28 Basic Settings
5. Use navigation keys to select [0] International or
[1] North America as appropriate and press [OK].
(This changes the default settings for a number
of basic parameters. See 5.4 International/North
American Default Parameter Settings for a
complete list.)
6. Press [Quick Menu] on the LCP.
7. Use the navigation keys to scroll to parameter
group Q2 Quick Setup and press [OK].
1 (1)
Illustration 3.29 Quick Menus
8. Select language and press [OK].
9. A jumper wire should be in place between
control terminals 12 and 27. If this is the case,
leave 5-12 Terminal 27 Digital Input at factory
default. Otherwise select No Operation. For
frequency converters with an optional Danfoss
bypass, no jumper wire is required.
10. 3-02 Minimum Reference
11.
3-03 Maximum Reference
12. 3-41 Ramp 1 Ramp Up Time
0.0% 0.00A
Operation / Display
0-0 Basic Settings
*
0-1 Set-up Opperations
*
0-2 LCP Display
*
0-3 LCP Custom Readout
*
0.0% 0.00A
Basic Settings
0-03 Regional Settings
[0] International
13.7% 13.0A
Quick Menus
Q1 My Personal Menu
Q2 Quick Setup
Q5 Changes Made
Q6 Loggings
1(1)
0-
**
3 3
1(1)
0-0
*
1(1)
31
