Introduction

1 Introduction
1 1

1.1 Product Overview

1.1.1 Interior Views

1
15
13
(IP 21/54
NEMA 1/12)

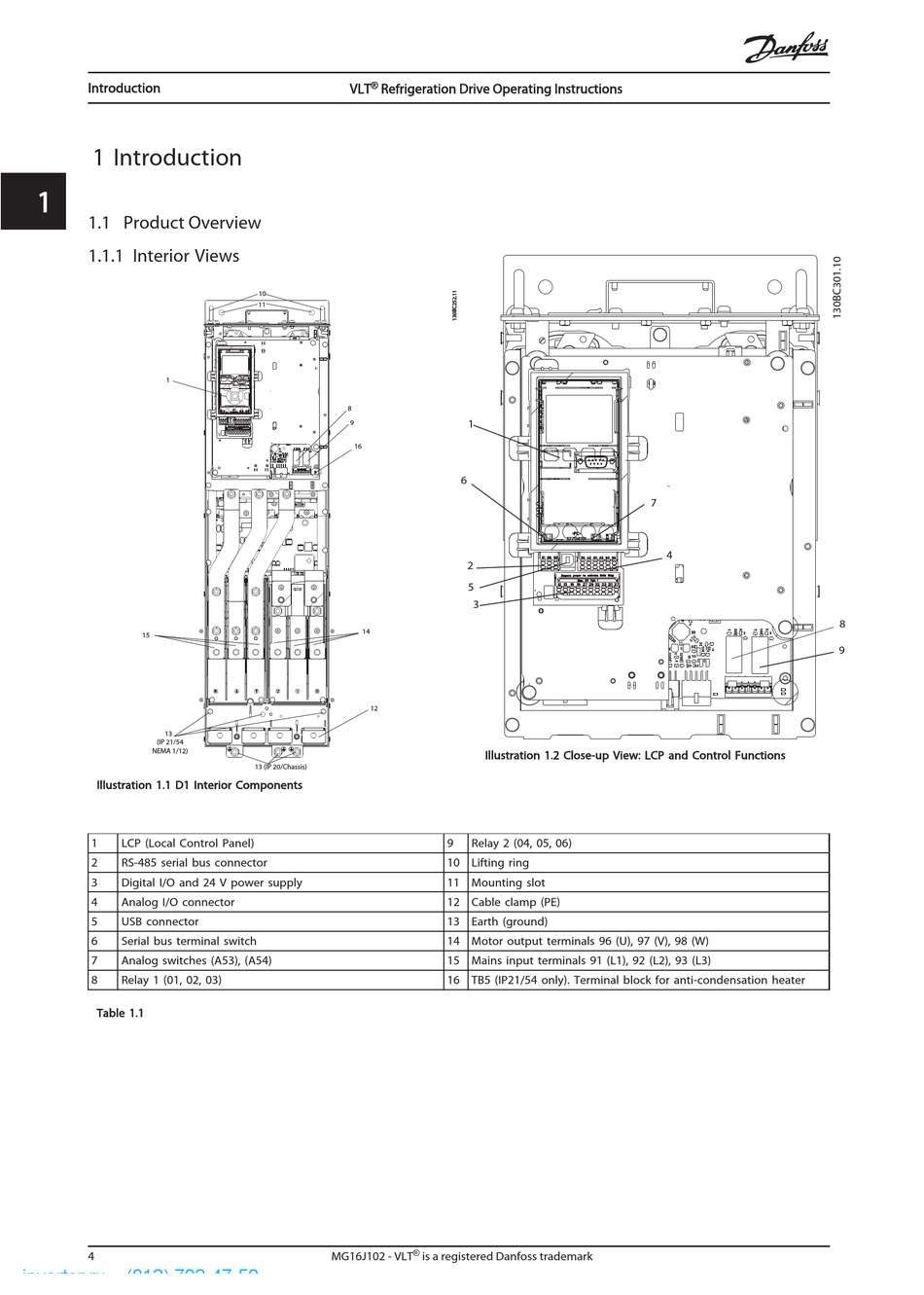

I I llustration 1.1 D1 Interior Components
1 LCP (Local Control Panel)
2 RS-485 serial bus connector
3 Digital I/O and 24 V power supply
4 Analog I/O connector
5 USB connector
6 Serial bus terminal switch
7 Analog switches (A53), (A54)
8 Relay 1 (01, 02, 03)
Table 1.1
4
inverter.ru (812) 702-47-50
VLT Refrigeration Drive Operating Instructions
10
11
8
9
16
14
12
13 (IP 20/Chassis)
MG16J102 - VLT is a registered Danfoss trademark
1
6
2
5
3
Illustration 1.2 Close-up View: LCP and Control Functions
9 Relay 2 (04, 05, 06)
10 Lifting ring
11 Mounting slot
12 Cable clamp (PE)
13 Earth (ground)
14 Motor output terminals 96 (U), 97 (V), 98 (W)
15 Mains input terminals 91 (L1), 92 (L2), 93 (L3)
16 TB5 (IP21/54 only). Terminal block for anti-condensation heater
7
4
8
9
