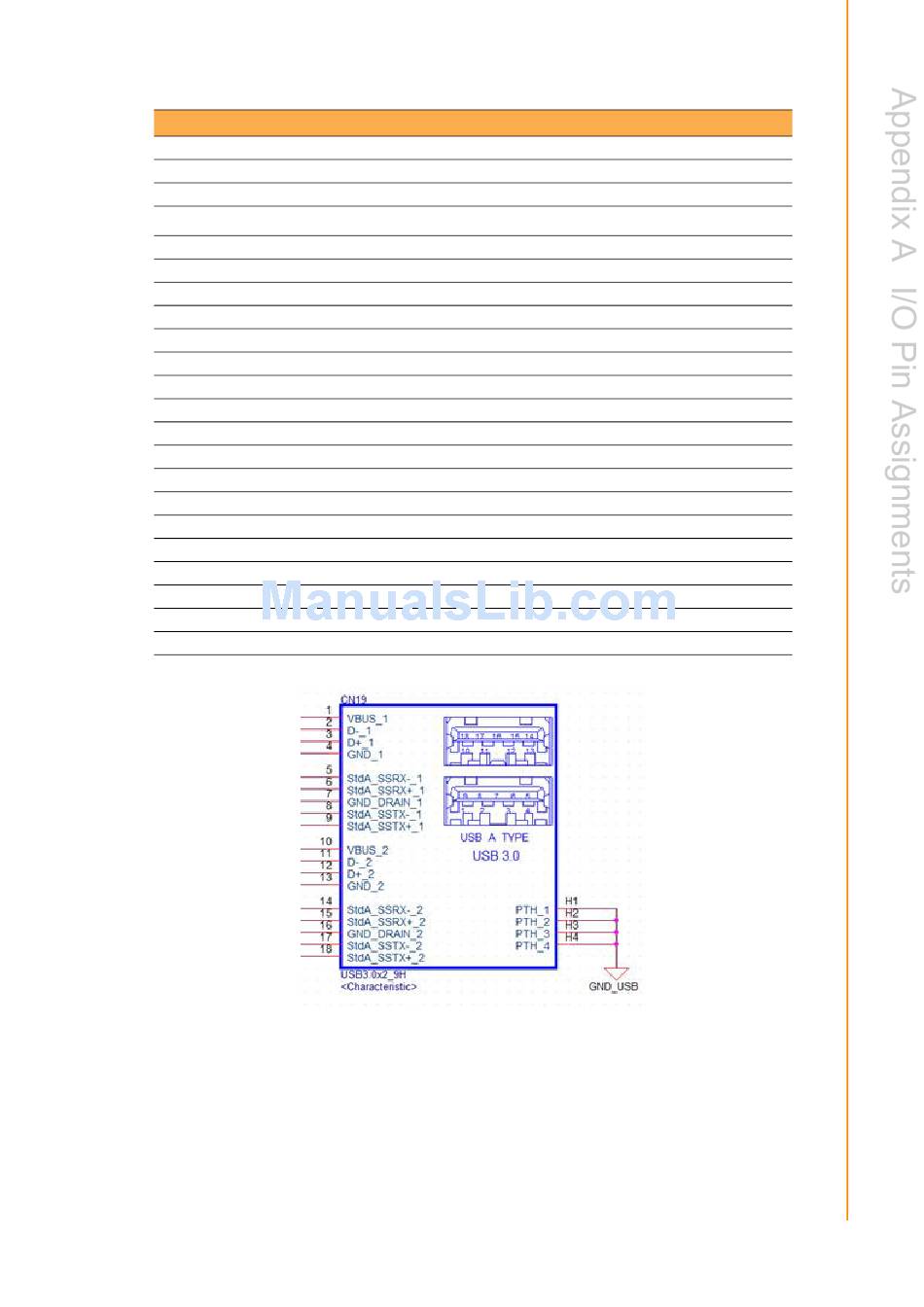

Table A.18: CN19: External USB
Part Number
1654010969-01
Footprint
USB_9x2P_UEA1112C-8HS6-4F
Description
USB Conn. 18P 2.0 mm 90D(F) DIP UEA1112C
Pin
Pin Name
1
+5VSB
2
D-
3
D+
4
GND
5
SSRX-
6
SSRX+
7
GND
8
SSTX-
9
SSTX+
10
+5VSB
11
D-
12
D+
13
GND
14
SSRX-
15
SSRX+
16
GND
17
SSTX-
18
SSTX+
43
