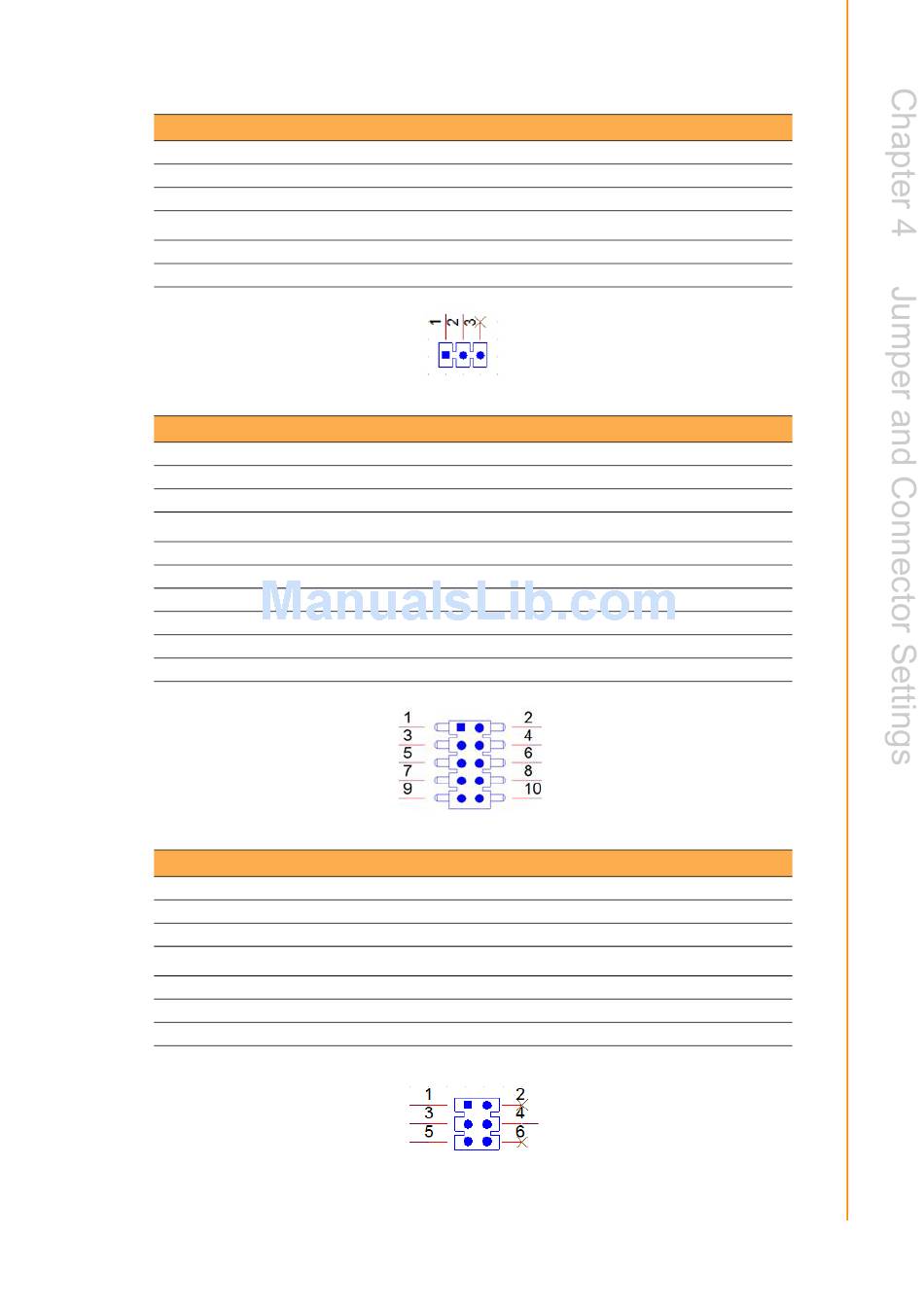

Table 4.8: JP6: CLEAR CMOS

Part Number 1653005101
Footprint HD_5x1P_79_D
Description Pin Header 3 x 1P 2.0 mm 180D(M) DIP 2000-13 WS
Setting Function
(1-2) Clear CMOS
(2-3)* Normal
Table 4.9: CN9: COM1/COM2 RING POWER
Part Number 1653005261
Footprint HD_5x2P_79
Description Pin Header 5 x 2P 2.0 mm 180D(M) SMD 21N22050
Setting Function
(1-3) * COM1 RING
(3-5) COM1 RI output +5 V
(7-9) COM1 RI output +12 V
(2-4) * COM2 RING
(4-6) COM2 RI output +5 V
(8-10) COM2 RI output +12 V
Table 4.10: CN10: CSAFE Power
Part Number 1653003201
Footprint HD_3x2P_79_D
Description Pin Header 3 x 2P 2.0 mm 180D(M) DIP 21N22050
Setting Function
(1-3) * CSAFE output +5 V
(3-4) CSAFE output +9 V
(3-5) CSAFE output +12 V
25 UTC-318 User Manual
