42

StructureScan

This feature is automatically enabled when a TotalScan or
StructureScan HD transducer is plugged in before the unit has been
powered on.
It is possible to set a Structure depth offset for the structure
transducer. This setting is in the Echosounder Settings dialog.

Radar setup

Ú Note:
The 5" unit does not support radar.

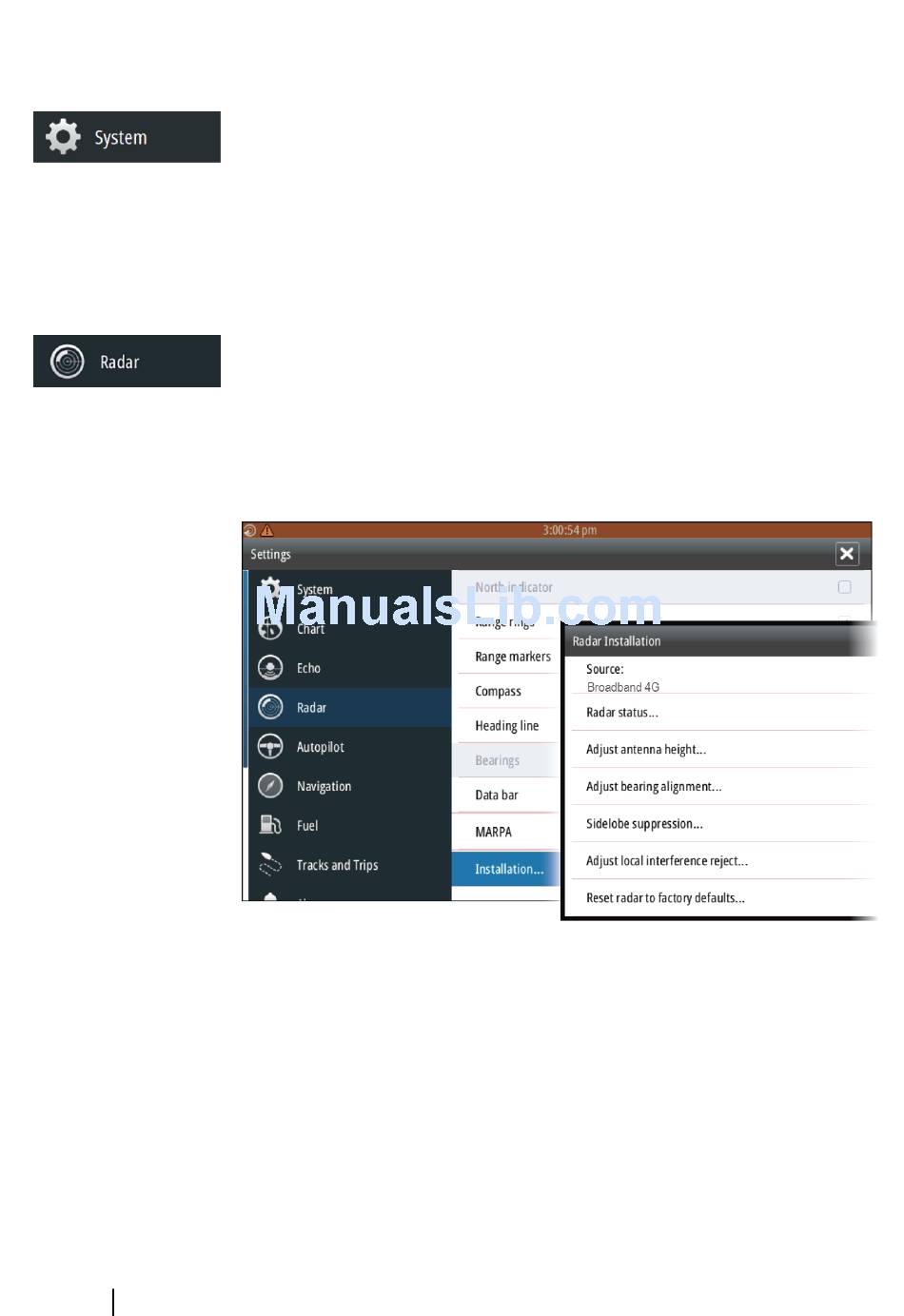

Use the Radar Installation dialog to setup the radar.
Ú Note:
The installation can vary depending on the radar. Follow
the installation and setup instructions supplied with the radar.
Radar source
In a system with more than one radar, the correct device to
configure can be selected from this menu.
Ú Note:
Radars that support dual radar mode are represented
twice in the source list, with an A and B suffix.
Software Setup | GO XSE Installation Manual
