Ú Note:
Do not connect the NMEA 2000 power cable to the same
terminals as the engine start batteries, autopilot computer, bow
thruster or other high current devices.

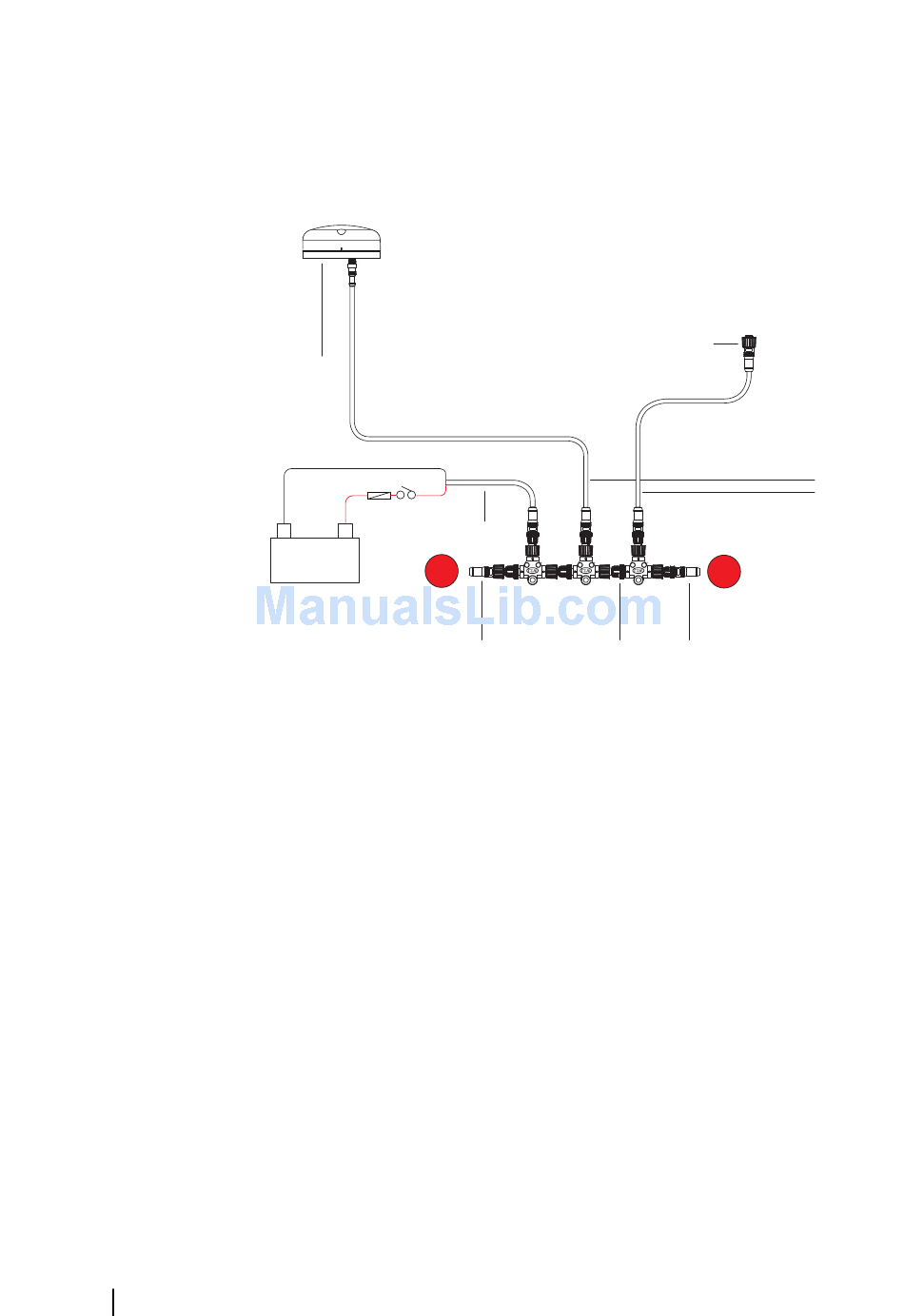

The following drawing demonstrates a typical small network. The
backbone is made up of directly interconnected T-connectors.
1
_
+
12 V DC
1
NMEA 2000 device
2
Connector to unit
3
Drop-cable, should not exceed 6 m (20 ft)
4
Terminators
5
Backbone
6
Power cable

CZone connection to NMEA 2000

When interfacing to CZone network it is recommended to use a BEP
Network interface bridge to join the two network backbones
together.
The CZone / NMEA 2000 Network interface bridge isolates the
power of the two networks, but allows data to be freely shared
between both sides.
Wiring | GO XSE Installation Manual
6
T
4
2
T
5 4
3
