9" unit dimensional drawings
12" unit dimensional drawings

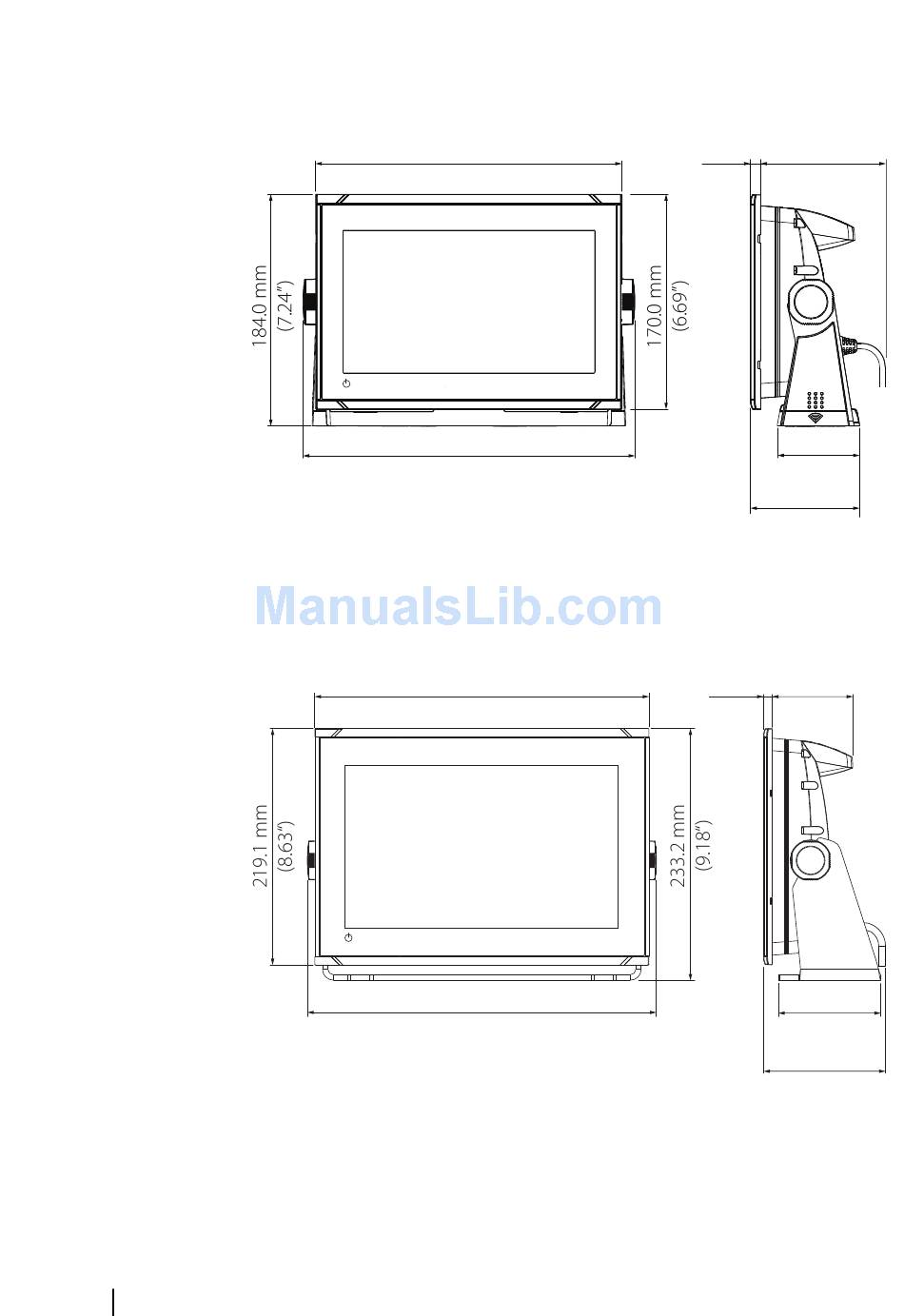

Dimensional drawings
242.0 mm
(9.52")
263.0 mm
(10.35")
310.0 mm
(12.20")
323.5 mm
(12.74")
| GO XSE Installation Manual
90.0 mm
8.0 mm
(3.54")
(0.31")
24.0 mm
(0.94")
79.0 mm
(3.11")
8.0 mm
74.7 mm
(0.32")
(2.94")
95.0 mm
(7.74")
110.6 mm
(4.36")
