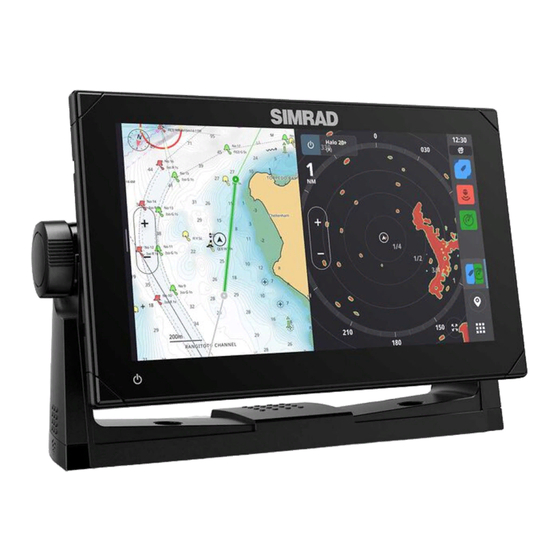

Summary of Contents for Simrad NSX

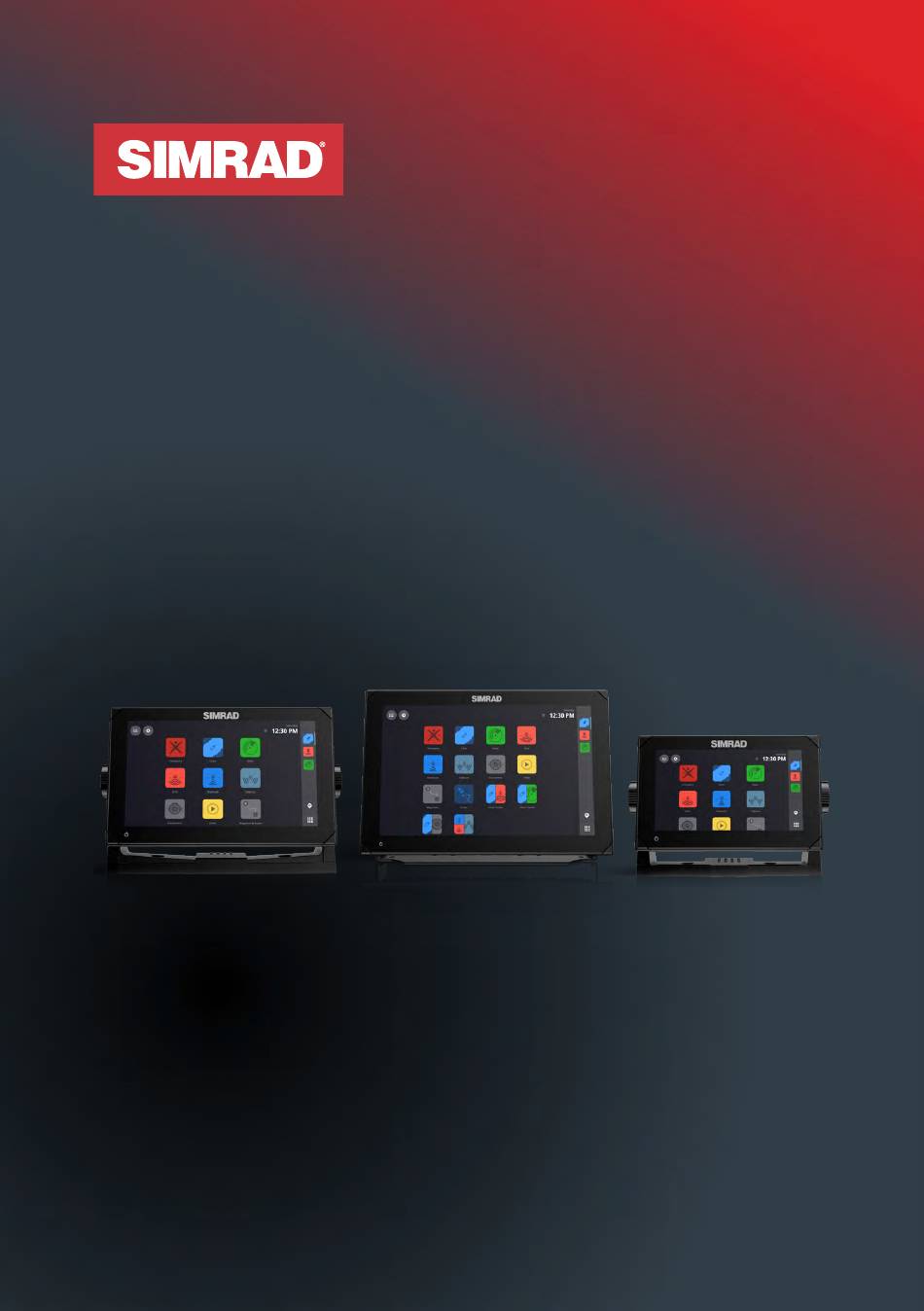

- Page 1 INSTALLATION MANUAL ENGLISH www.simrad-yachting.com...
- Page 3 SD™ and microSD™ are trademarks of SD-3C, LLC. Compliance statements Declarations The relevant declarations of conformity are available in the product’s section at the following website: www.simrad-yachting.com. United Kingdom Simrad NSX complies with UKCA under The Radio Equipment Regulations 2017.
- Page 4 Contact your service provider for information about charges and data download restrictions. About this manual Product features Features described and illustrated in this guide may vary from your display unit due to continuous development of the software. More documentation For the latest version of this document in supported languages, visit: www.simrad-yachting.com.
-
Page 5: Table Of Contents
CONTENTS 7 Introduction 11 Installation 15 Wiring 22 Dimensional drawings 24 Specifications 26 Supported data... -
Page 7: Introduction
INTRODUCTION Parts included Display unit Panel mounting kit Sun cover Corner clips Power cable Fuseholder and fuse Documentation package U-bracket mounting kit - 7” and 9” units U-bracket mounting kit - 12” unit... - Page 8 Front controls Power key • Press and hold to turn the unit on or off. • Press once to display the quick access menu. Repeat short presses to toggle through the default screen brightness levels. Touchscreen...
- Page 9 Connectors 7” unit 9” and 12” units Power and power control (4-pin connector) Ethernet (5-pin connector) NMEA 2000 (Micro-C connector) Echosounder (9-pin connector) USB (Type-A connector)
- Page 10 Card reader A microSD card can be used to: • Provide detailed charts • Store screenshots • Update software • Transfer user data (waypoints, routes, tracks, screenshots). ¼ Notes: • Do not download, transfer or copy files to a chart card as it can damage chart information on the card.
-
Page 11: Installation
INSTALLATION General mounting guidelines ⚠Warning: Do not install the unit in a hazardous/flammable atmosphere. ¼ Note: Choose a mounting location that will not expose the unit to conditions that exceed the technical specifications. Mounting location This product generates heat which must be considered when choosing the mounting location. Ensure the selected area allows for: •... - Page 12 Compass safe distance The unit outputs electromagnetic interference that can cause inaccurate readings on a nearby compass. To prevent compass inaccuracy, the unit must be mounted far enough away so the interference does not affect compass readings. For minimum compass safe distance, refer to the technical specifications.
- Page 13 Touchscreen Touchscreen performance can be affected by the location of the unit. Avoid locations where the screen is exposed to: • Direct sunlight. • Prolonged rainfall. Corner clip fitment and removal Panel mounting Refer to the separate mounting template for panel mounting instructions.
- Page 14 U-bracket mounting Place the bracket in the desired mounting location. Ensure that the chosen location has enough height to accommodate the unit fitted in the bracket, and allows tilting of the unit. Adequate space is also required on both sides to allow tightening and loosening of the knobs. Mark the screw locations using the bracket as a template, and drill pilot holes.
-
Page 15: Wiring
WIRING Wiring guidelines Don’t: • Make sharp bends in the cables. • Run cables in a way that allows water to flow down into the connectors. • Run the data cables adjacent to radar, transmitter, or large/high current carrying cables or high frequency signal cables. - Page 16 Power and power control The power connector is used for power control. Power connector details Unit socket (male) Purpose DC negative Power control + 12 V DC Power connection The unit is designed to be powered by 12 V DC. It is protected against reverse polarity, under voltage and over voltage (for a limited duration).
- Page 17 Power control connection The yellow wire in the power cable can be used to control how the unit is turned on and off. Power controlled by power key The unit will turn on/off when the power key on the unit is pressed. Leave the yellow power control wire disconnected and tape or heat-shrink the end to prevent shorting.
- Page 18 NMEA 2000 The NMEA 2000 data port allows receiving and sharing of a multitude of data from various sources. Connector details Unit socket (male) Purpose Shield NET-S (+ 12 V DC) NET-C (DC negative) NET-H NET-L Plan and install an NMEA 2000 network An NMEA 2000 network consists of a powered backbone from which drop cables connect to NMEA 2000 devices.
- Page 19 NMEA 2000 device Drop cable Terminator Power supply Backbone Power the NMEA 2000 network The network requires its own 12 V DC power supply, protected by a 3 A fuse. For smaller systems, connect power at any location in the backbone. For larger systems, connect power at a central point in the backbone to balance the voltage drop of the network.
- Page 20 USB port The USB-A port can be used to connect a: • Storage device • Card reader ¼ Note: USB devices should be standard PC-compatible hardware. USB connector details Unit socket (female) - Standard USB type-A. Ethernet The Ethernet port(s) can be used for transfer of data and synchronization of user created data. It is recommended that each device in the system is connected to the Ethernet network.
- Page 21 Echosounder Supports: • Sonar / CHIRP Sonar • DownScan • SideScan • Active Imaging/Active Imaging 3-in-1/TotalScan/StructureScan ¼ Note: A 7-pin transducer cable can be connected to a 9-pin port using a 7-pin to 9-pin adaptor cable. However, if the transducer has a paddle wheel speed sensor, the water-speed data will not display on the unit.
-
Page 22: Dimensional Drawings
DIMENSIONAL DRAWINGS 7” unit 220.0 mm 107.0 mm (8.66 in) (4.21 in) 195.0 mm 8.0 mm 71.5 mm (7.68 in) (0.32 in) (2.82 in) 62.0 mm (2.44 in) 9” unit 263.0 mm 109.9 mm (10.35 in) (4.33 in) 239.0 mm 8.0 mm 72.6 mm (9.40 in) - Page 23 12” unit 319.5 mm 151.4 mm (12.58 in) (5.96 in) 309.5 mm 8.0 mm 78.0 mm (12.19 in) (0.32 in) (3.10 in) 95.0 mm (3.74 in)
-
Page 24: Specifications
SPECIFICATIONS Display Resolution 7” unit 1024 x 600 px 9” unit 1280 x 720 px 12” unit 1280 x 800 px Brightness >1200 nits Touch screen Full touch screen (multi-touch) Viewing angles in degrees (typical value at contrast 85° (top, bottom, left, and right) ratio = 10) Electrical Supply voltage... - Page 25 Data card slot 1 (microSD, SDHC) 9” and 12” unit 1 port (USB A) Output: 5 V DC, 1.5 A Physical Weight (display only) 7” unit 0.8 kg (1.7 lbs) 9” unit 1.2 kg (2.6 lbs) 12” unit 2.2 kg (4.9 lbs) Compass safe distance 50 cm (1.7 ft)
-
Page 26: Supported Data
SUPPORTED DATA NMEA 2000 PGN (receive) 59392 ISO Acknowledgement 59904 ISO Request 60160 ISO Transport Protocol, Data Transfer 60416 ISO Transport Protocol, Connection M 65240 ISO Commanded Address 60928 ISO Address Claim 126208 ISO Command Group Function 126992 System Time 126996 Product Info 126998... - Page 27 127507 Charger Status 127508 Battery Status 127509 Inverter Status 128259 Speed, Water referenced 128267 Water Depth 128275 Distance Log 129025 Position, Rapid Update 129026 COG & SOG, Rapid Update 129029 GNSS Position Data 129033 Time & Date 129038 AIS Class A Position Report 129039 AIS Class B Position Report 129040...
- Page 28 129801 AIS Addressed Safety Related Message 129802 AIS Safety Related Broadcast Message 129808 DSC Call Information 129809 AIS Class B “CS” Static Data Report, Part A 129810 AIS Class B “CS” Static Data Report, Part B 130060 Label 130074 Route and WP Service - WP List - WP Name & Position 130306 Wind Data 130310...
- Page 29 NMEA 2000 PGN (transmit) 60160 ISO Transport Protocol, Data Transfer 60416 ISO Transport Protocol, Connection M 126208 ISO Command Group Function 126992 System Time 126993 Heartbeat 126996 Product Info 127237 Heading/Track Control 127250 Vessel Heading 127258 Magnetic Variation 127502 Switch Bank Control 128259 Speed, Water referenced 128267...
- Page 30 NOTES:...
- Page 32 ®Reg. U.S. Pat. & Tm. Off, and ™ common law marks. Visit www.navico.com/intellectual-property to review www.simrad-yachting.com the global trademark rights and accreditations for Navico Holding AS and other entities.
