  • Page 1: Getting Started

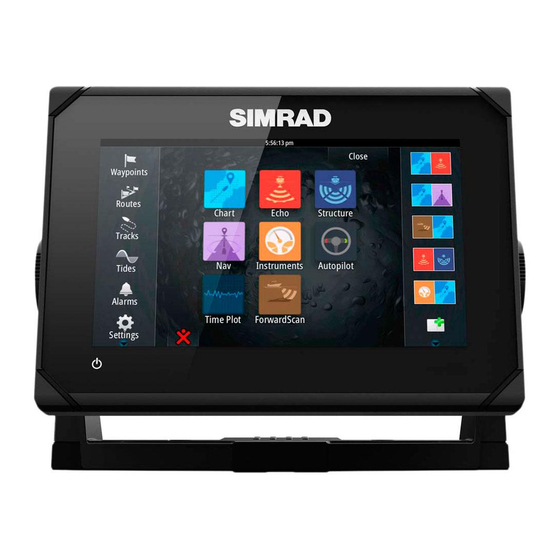

    GO XSE Getting Started ENGLISH simrad-yachting.com...

  • Page 2: Table Of Contents

    Tracks 22 Navigating Navigation panels Navigate to cursor position Navigate a route 24 Autopilot Safe operation with the autopilot Activating the autopilot Switching from automatic mode to manual steering Autopilot indication on the pages Contents | GO XSE Getting Started...
  • Page 3 Connect and disconnect from a wireless hotspot 36 Audio Enabling audio The Audio panel Operating the audio system 38 Alarms Alarm system Alarms dialog 39 Tools Waypoints/routes/tracks Tides Alarms Settings Vessels Sun, Moon TripIntel Contents | GO XSE Getting Started...
  • Page 4 Files Find GoFree Shop Contents | GO XSE Getting Started...
  • Page 5 Contents | GO XSE Getting Started...

  • Page 6: Introduction

    Select a button to display the application as a full page panel. Press and hold a button to display pre-configured split page options for the application. Close button Select to exit the Home page and return to the previous active page. Introduction | GO XSE Getting Started...

  • Page 7: Application Pages

    Quick access to basic system settings. Display the dialog by a short press on the Power key or by swiping down from top of the screen. Status bar Dialog Information to or input from the user. Introduction | GO XSE Getting Started...
  • Page 8 Note: Ú The number of pre-configured split pages cannot be changed, and the pages cannot be customized or deleted. Access a pre-configured split page by pressing and holding the main panel button. Introduction | GO XSE Getting Started...

  • Page 9: Basic Operation

    You turn the system on and off by pressing and holding the Power key. You can also turn the unit off from the System Controls dialog. If the Power key is released before the shut-down is completed, the power off process is cancelled. Basic operation | GO XSE Getting Started...

  • Page 10: Selecting Pages And Panels

    Adjust the panel size by dragging the adjustment icon Confirm your changes by tapping one of the panels or selecting the save option in the menu. The changes are saved to the active favorite or split page. Basic operation | GO XSE Getting Started...

  • Page 11: Adding New Favorite Pages

    When you activate the MOB function the following actions are automatically performed: • a MOB waypoint is created at the vessel’s position • the display switches to a zoomed chart panel, centered on the vessel's position Basic operation | GO XSE Getting Started...
  • Page 12 Select the MOB waypoint to activate it Select the MOB waypoint's pop-up to display the MOB waypoint dialog Select the delete option in the dialog. A MOB waypoint can also be deleted from the menu when it is activated. Basic operation | GO XSE Getting Started...

  • Page 13: Charts

    Range rings* Track* Chart range scale Range rings interval (only displayed when Range rings are turned on) * Optional chart items. You turn the optional chart items on/off individually from the Chart settings dialog. Charts | GO XSE Getting Started...

  • Page 14: Showing Dual Chart Types

    Press and hold your finger on the screen to switch the cursor symbol to a selection circle, appearing above your finger. Without removing your finger from the screen, drag the selection circle over the desired item to display item information. Charts | GO XSE Getting Started...

  • Page 15: Positioning The Vessel On The Chart Panel

    The grey icon follows the vessel as the vessel moves, while the blue icon remains at the position given when you activated the function. You terminate the measuring function by selecting the Finish measuring menu option. Positioning the vessel on the chart panel Charts | GO XSE Getting Started...

  • Page 16: Displaying Information About Chart Items

    Note: Ú If you are viewing applicable Jeppesen charts on your system, you can select marine objects to display information about services and available multimedia (photos) associated with the location or object. Charts | GO XSE Getting Started...

  • Page 17: Find Objects On Chart Panels

    All chart types work in 3D mode, but without 3D cartography for the appropriate area the chart appears flat. When 3D chart option is selected, the Pan and the Rotate icons appear on the right side of the chart panel. Charts | GO XSE Getting Started...

  • Page 18: Waypoints, Routes, And Tracks

    Activate the menu and select the waypoint in the menu Select the move option Select the new waypoint position Select Finish in the menu. The waypoint is now automatically saved at the new position. Waypoints, Routes, and Tracks | GO XSE Getting Started...

  • Page 19: Routes

    Select the route edit option in the menu. Position the new routepoint on the chart panel: - If you set the new routepoint on a leg, a new point is added between existing routepoints. Waypoints, Routes, and Tracks | GO XSE Getting Started...

  • Page 20: Tracks

    The automatic tracking function can be turned off from the Tracks dialog. Creating new Tracks You can start a new track from the Tracks dialog, activated by using the Tracks tool on the Home page. Waypoints, Routes, and Tracks | GO XSE Getting Started...

  • Page 21: Navigating

    The Nav panels can be used to display information when you are navigating. The Nav panel The Nav panel is activated from the Home page, either as a full page panel or as part of a multiple panel page. Data fields Route information Vessel heading Navigating | GO XSE Getting Started...

  • Page 22: Navigate To Cursor Position

    You can start navigating a route from the chart panel or from the Route dialog. When route navigation is started, the menu expands and shows options for canceling the navigation, for skipping a waypoint, and for restarting the route from current vessel position. Navigating | GO XSE Getting Started...

  • Page 23: Autopilot

    Instrument bar, followed by selecting a mode in the Autopilot Controller. Switching from automatic mode to manual steering You switch the autopilot to STBY mode from any automatic operation mode from the autopilot pop-up or the physical standby button. Autopilot | GO XSE Getting Started...

  • Page 24: Autopilot Indication On The Pages

    You remove the pop-up from a page by selecting the X in the upper right corner. You turn it on again by selecting the autopilot tile in the instrument bar. The following pop-ups are available: Autopilot | GO XSE Getting Started...

  • Page 25: The Autopilot Panel

    The autopilot panel is used to display navigation data. It can be shown as a full screen panel, or in a multi-panel page. The number of data fields included in the autopilot panel is dependent on available panel size. Autopilot | GO XSE Getting Started...

  • Page 26: Echosounder

    The Echosounder image Depth Temperature Frequency and Zoom scale Bottom Zoom buttons Depth range scale Instrument panel Zoom column Fish arches * Optional Echosounder items. Echosounder | GO XSE Getting Started...

  • Page 27: Viewing Echosounder History

    Select Clear cursor to return to the normal Echosounder menu. Main menu Advanced menu View menu Note: Ú The A-scope and Zoom bars options are only available on the GO7 XSE view menu. Echosounder | GO XSE Getting Started...

  • Page 28: Structurescan

    The StructureScan panel can be set up as a DownScan image, or showing left/right side scanning. The DownScan image can also be added as an overlay to the traditional Echosounder image. Depth Temperature Frequency Bottom StructureScan | GO XSE Getting Started...

  • Page 29: Setting Up The Image

    Use the StructureScan menu options to set up the image. When the cursor is active, some options on the StructureScan menu are replaced with cursor mode features. Select Clear cursor to return to the normal StructureScan menu. Advanced menu View menu Main menu StructureScan | GO XSE Getting Started...

  • Page 30: Forwardscan

    Do not use this equipment to gauge depth or other conditions for swimming or diving. The ForwardScan image Transducer location shown as the origin on the page Depth range scale and vessel position Forward range scale Point data ForwardScan | GO XSE Getting Started...

  • Page 31: Setting Up The Image

    ForwardScan menu. Main menu View menu Heading extension You can use the heading extension to monitor ForwardScan on the chart panel. Heading extension colors are based on the ForwardScan alarm values. ForwardScan | GO XSE Getting Started...
  • Page 32 ForwardScan extension Red - Critical Yellow - Warning Green - Safe Select ForwardScan in the Chart Settings dialog to view the ForwardScan heading extension on the chart panel. ForwardScan | GO XSE Getting Started...

  • Page 33: Instrument Panels

    You can also select the dashboard from the menu. Vessel dashboard Navigation dashboard Angler dashboard Note: Ú Additional dashboards can be activated from the menu if other systems (e.g. CZone) are present on the network. Instrument panels | GO XSE Getting Started...

  • Page 34: Wireless Connection

    Disconnect. This changes the wireless mode to Access point mode. In this mode, you can connect a wireless device so that Apps such as GoFree Controller & Viewer can access the vessel's navigation information. Wireless connection | GO XSE Getting Started...

  • Page 35: Audio

    Audio If a SonicHub server or a FUSION marine entertainment system is connected to the NMEA 2000 network, you can use the GO XSE to control and customize the audio system on your vessel. When connected to a WM-3 Satellite module with an active subscription, you can include SiriusXM products on your system.

  • Page 36: The Audio Panel

    Select the source icon and then select the audio source. - Number of sources depends on the active audio server. Use the panel buttons to control your audio system. For available options, refer to the documentation following your audio equipment. Audio | GO XSE Getting Started...

  • Page 37: Alarms

    The alarm is recorded in the alarm listing so that you can see the details and take the appropriate corrective action. Alarms dialog All alarms are setup in the Alarms Settings dialog. Alarms | GO XSE Getting Started...

  • Page 38: Tools

    Alarm settings List of all available alarm options in the system, with current settings. Settings Provides access to application and system settings. Vessels Status listing List of all AIS and DSC vessels with available information. Tools | GO XSE Getting Started...

  • Page 39: Sun, Moon

    Map charts. When you log on, the system automatically gives you a notification if a new software version is available for your system. If an update is available, you can download it to a card slot or defer the download until later. Tools | GO XSE Getting Started...
