Warning:
Inadequate ventilation and subsequent
overheating of the unit may cause unreliable operation
and reduced service life. Exposing the unit to
conditions that exceeds the specifications could
invalidate your warranty. – refer to
page 67.

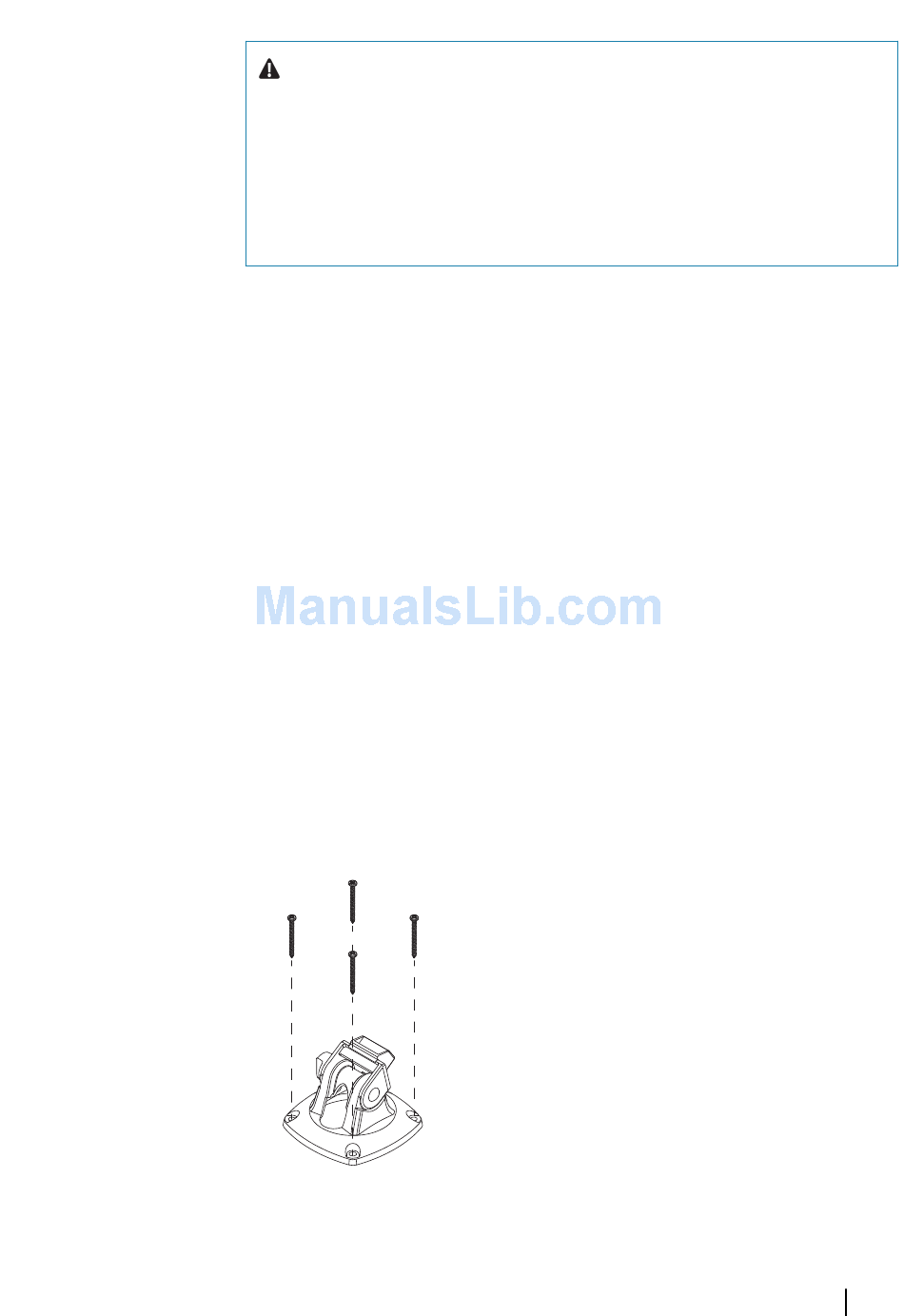

Bracket mounting

Quick release bracket mounting
The GO5 XSE can be mounted with the quick release bracket.
1.
Place the bracket in the desired mounting location. Ensure that
the chosen location has enough height to accommodate the
unit fitted in the bracket, allows tilting of the unit and
connecting cables in the back.
Ú Note:
Ensure that the chosen location has enough height to
accommodate the unit fitted in the bracket, allows tilting of the
unit and connecting cables in the back.
2.
Mark the screw locations using the bracket as a template, and
drill pilot holes.
Ú Note:
Use fasteners suited to the mounting surface material. If
the material is too thin for self-tappers, reinforce it, or mount
the bracket with machine screws and large washers. Use only
304 or 316 stainless steel fasteners.
3.
Screw down the bracket.
4.
Snap the unit to the bracket.
Installation | GO XSE Installation Manual
"Technical specifications"
on
17
