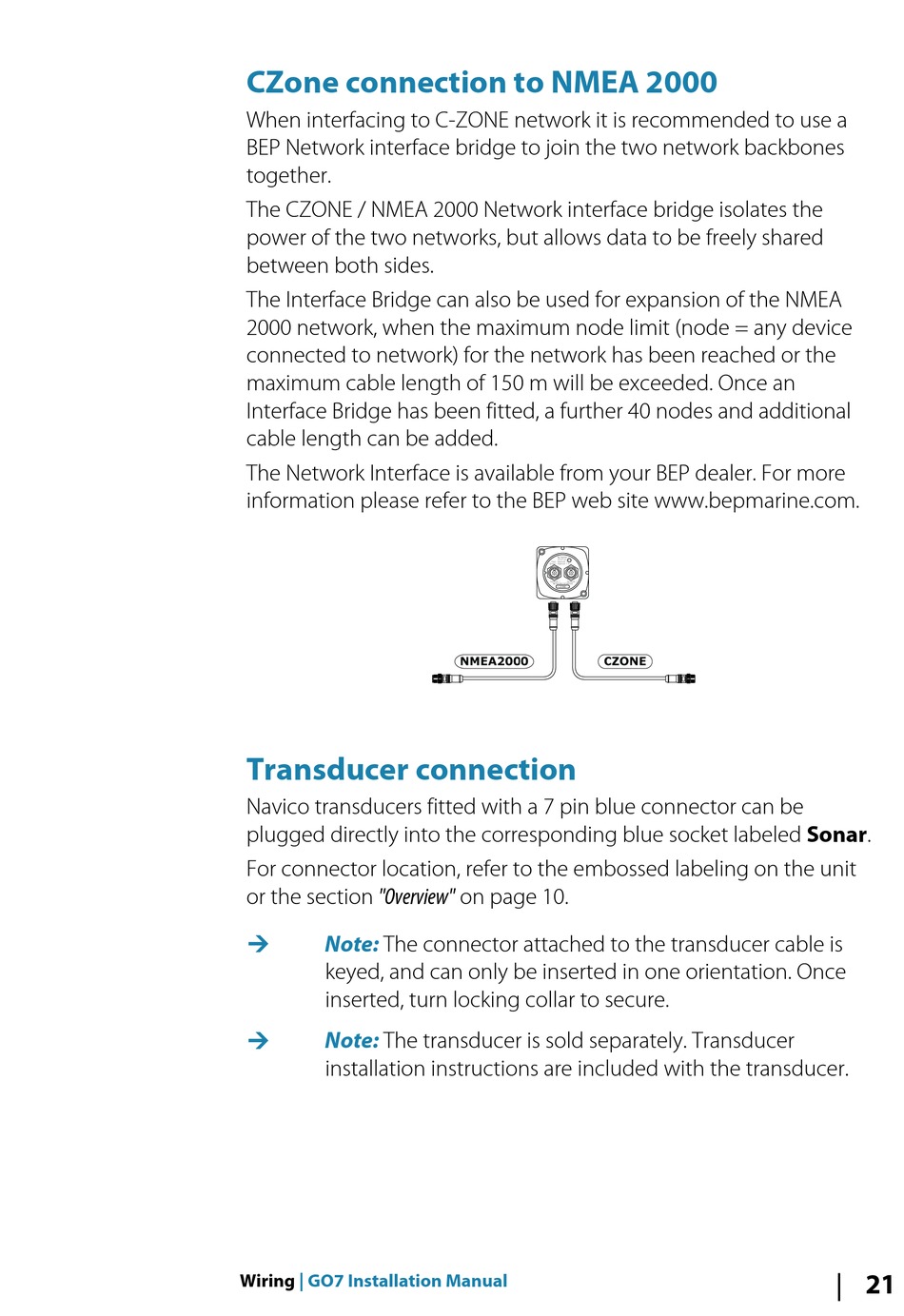

CZone connection to NMEA 2000

When interfacing to C-ZONE network it is recommended to use a
BEP Network interface bridge to join the two network backbones
together.
The CZONE / NMEA 2000 Network interface bridge isolates the
power of the two networks, but allows data to be freely shared
between both sides.
The Interface Bridge can also be used for expansion of the NMEA
2000 network, when the maximum node limit (node = any device
connected to network) for the network has been reached or the
maximum cable length of 150 m will be exceeded. Once an
Interface Bridge has been fitted, a further 40 nodes and additional
cable length can be added.
The Network Interface is available from your BEP dealer. For more
information please refer to the BEP web site www.bepmarine.com.

Transducer connection

Navico transducers fitted with a 7 pin blue connector can be
plugged directly into the corresponding blue socket labeled Sonar.
For connector location, refer to the embossed labeling on the unit
or the section "Overview" on page 10.
Note:
Ú The connector attached to the transducer cable is
keyed, and can only be inserted in one orientation. Once
inserted, turn locking collar to secure.
Note:
Ú The transducer is sold separately. Transducer
installation instructions are included with the transducer.
