Adding the Module to RSLogix
User Manual

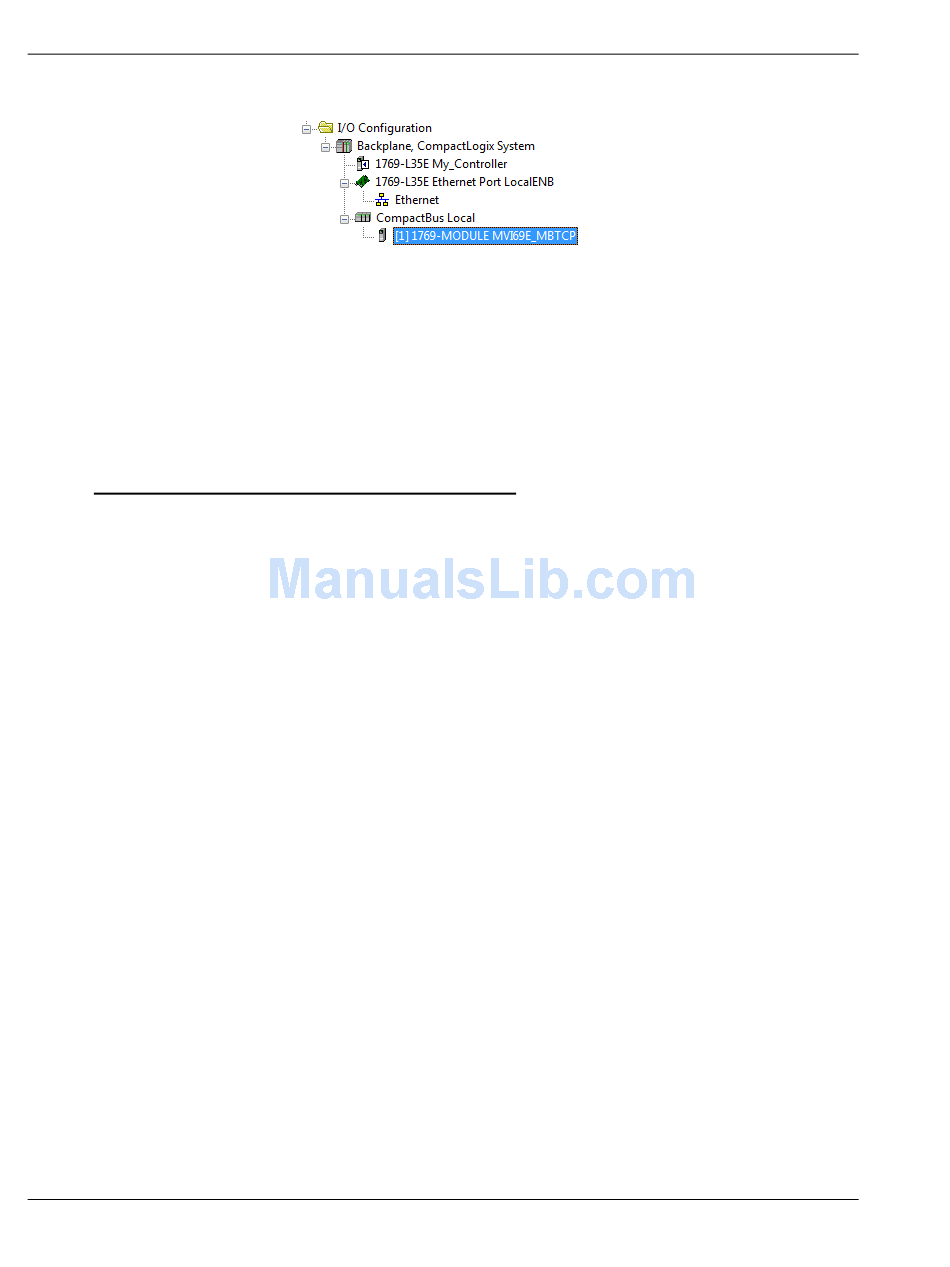

The MVI69E-MBTCP module is now visible in the I/O Configuration tree.
2.2

Installing ProSoft Configuration Builder

Use the ProSoft Configuration Builder (PCB) software to configure the module.
You can find the latest version of the ProSoft Configuration Builder (PCB) on our
website: http://www.prosoft-technology.com. The installation filename contains
the PCB version number. For example, PCB_4.3.4.5.0238.
If you are installing PCB from the ProSoft website:
1 Open a browser window and navigate to Error! Hyperlink reference not
valid..
2 Perform a search for 'pcb' in the Search bar. Click on the ProSoft
Configuration Builder search result.
3 On the PCB page, click the download link for ProSoft Configuration Builder,
and save the file to your Windows desktop.
4 After the download completes, double-click the file to install. If you are using
Windows 7, right-click the PCB installation file and then choose R
A
DMINISTRATOR
5 If you want to find additional software specific to your MVI69E-MBTCP, enter
the model number into the ProSoft website search box and press the Enter
key.
Page 24 of 150
. Follow the instructions that appear on the screen.
MVI69E-MBTCP ♦ CompactLogix Platform
Modbus TCP/IP Enhanced Communication Module
.
EXE
ProSoft Technology, Inc.
UN AS
