Configuring the MVI69E-MBTCP Using PCB
User Manual

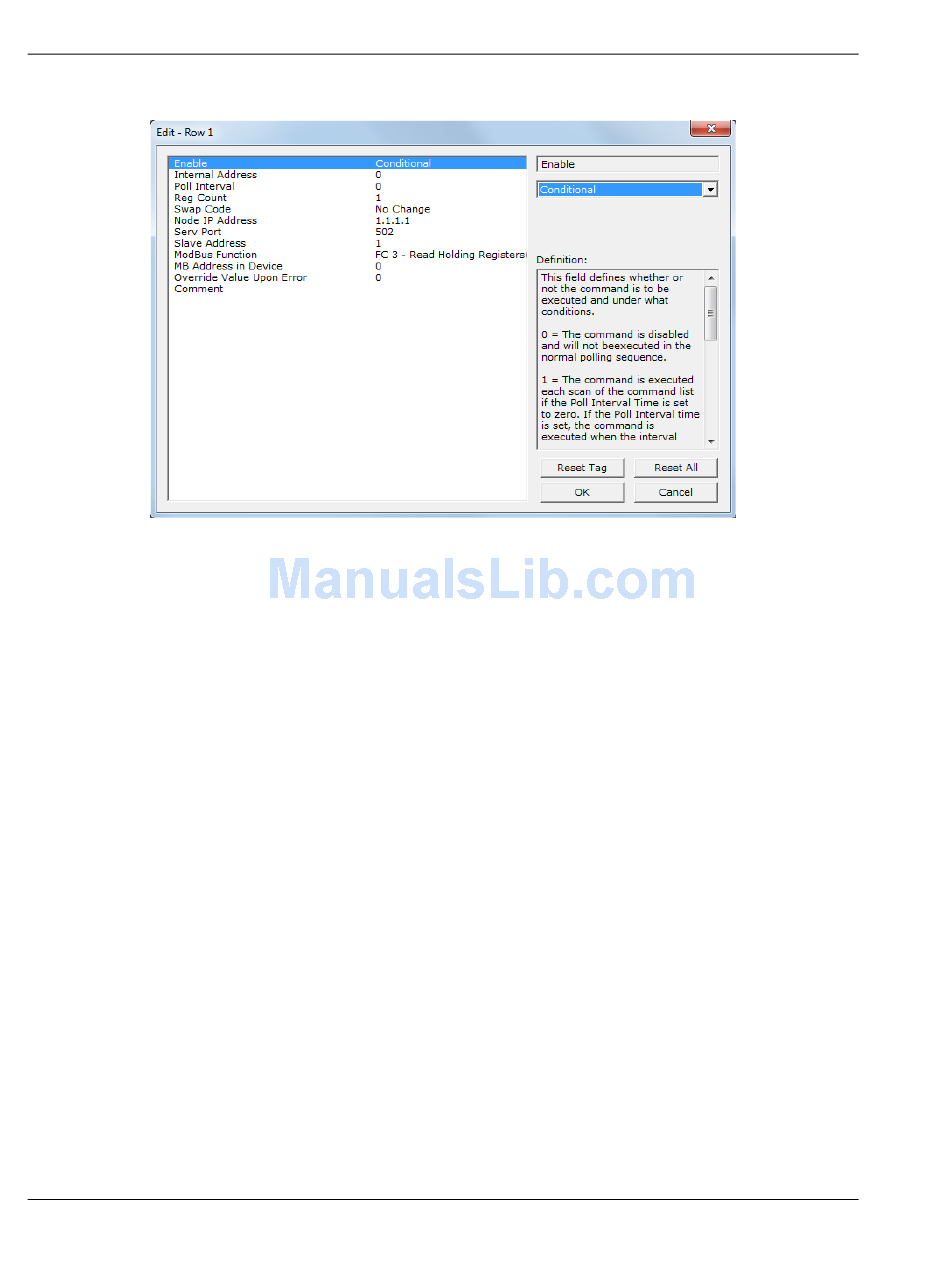

7 To edit the row, click E

3.1.4 Printing a Configuration File

1 In the main PCB window, right-click the MVI69E-MBTCP icon and then
choose V
IEW
2 In the View Configuration dialog box, click the F
P .
RINT
3 In the Print dialog box, choose the printer to use from the drop-down list,
select the printing options, and then click OK.
Page 46 of 150
R . This opens an Edit dialog box.
DIT OW
C .
ONFIGURATION
MVI69E-MBTCP ♦ CompactLogix Platform
Modbus TCP/IP Enhanced Communication Module
menu and then click
ILE
ProSoft Technology, Inc.
June 28, 2017
