MVI69E-MBTCP ♦ CompactLogix Platform
Modbus TCP/IP Enhanced Communication Module

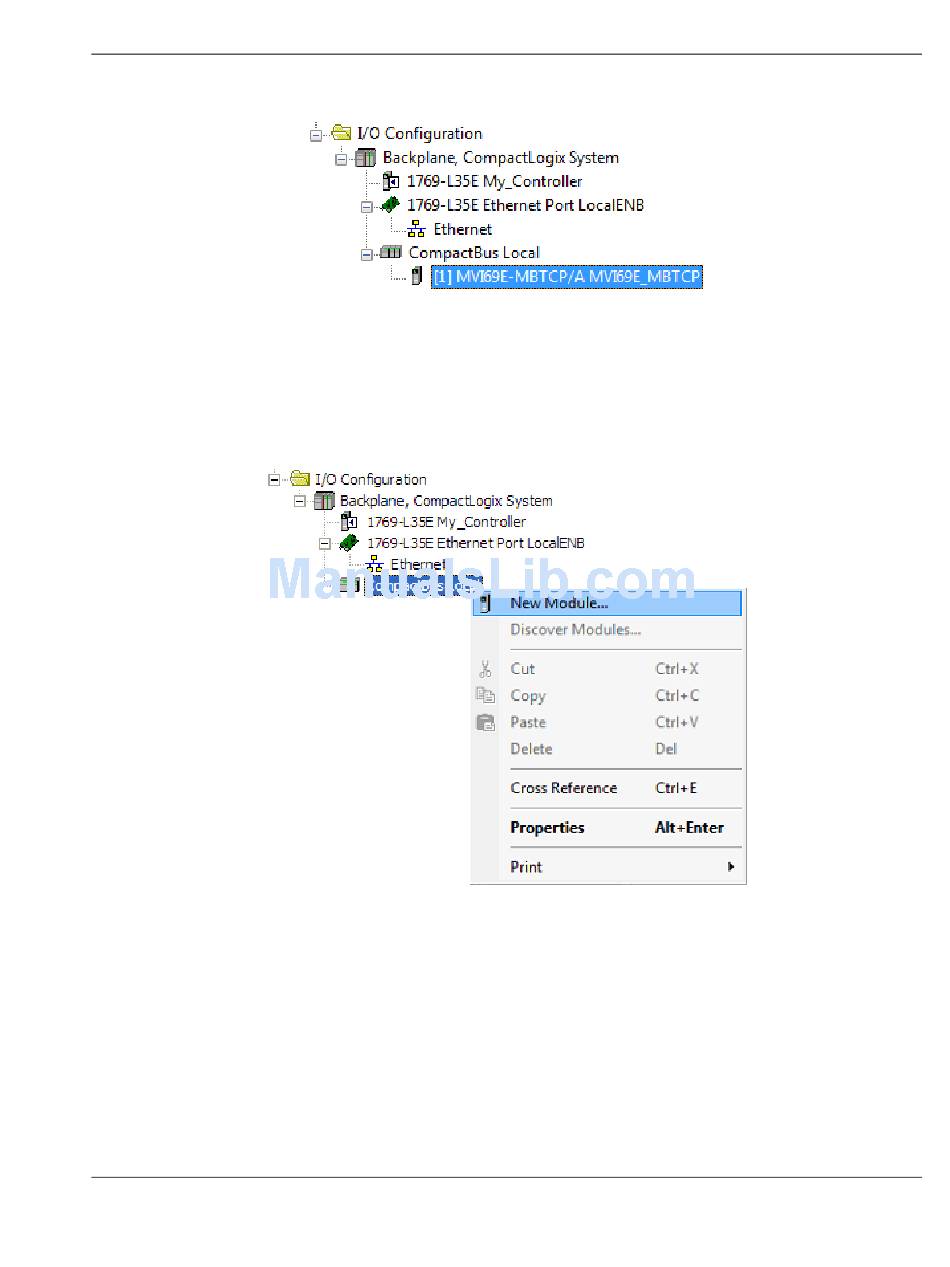

The MVI69E-MBTCP module is now visible in the I/O Configuration tree.
2.1.2 Creating a Module in the Project Using a Generic 1769 Module
Profile
1 Expand the I/O C
appropriate communications bus and choose N
This opens the Select Module Type dialog box.
ProSoft Technology, Inc.
June 28, 2017
folder in the Project tree. Right-click the
ONFIGURATION
Adding the Module to RSLogix
M .
EW ODULE
User Manual
Page 21 of 150
