MVI69E-MBTCP ♦ CompactLogix Platform
Modbus TCP/IP Enhanced Communication Module
2

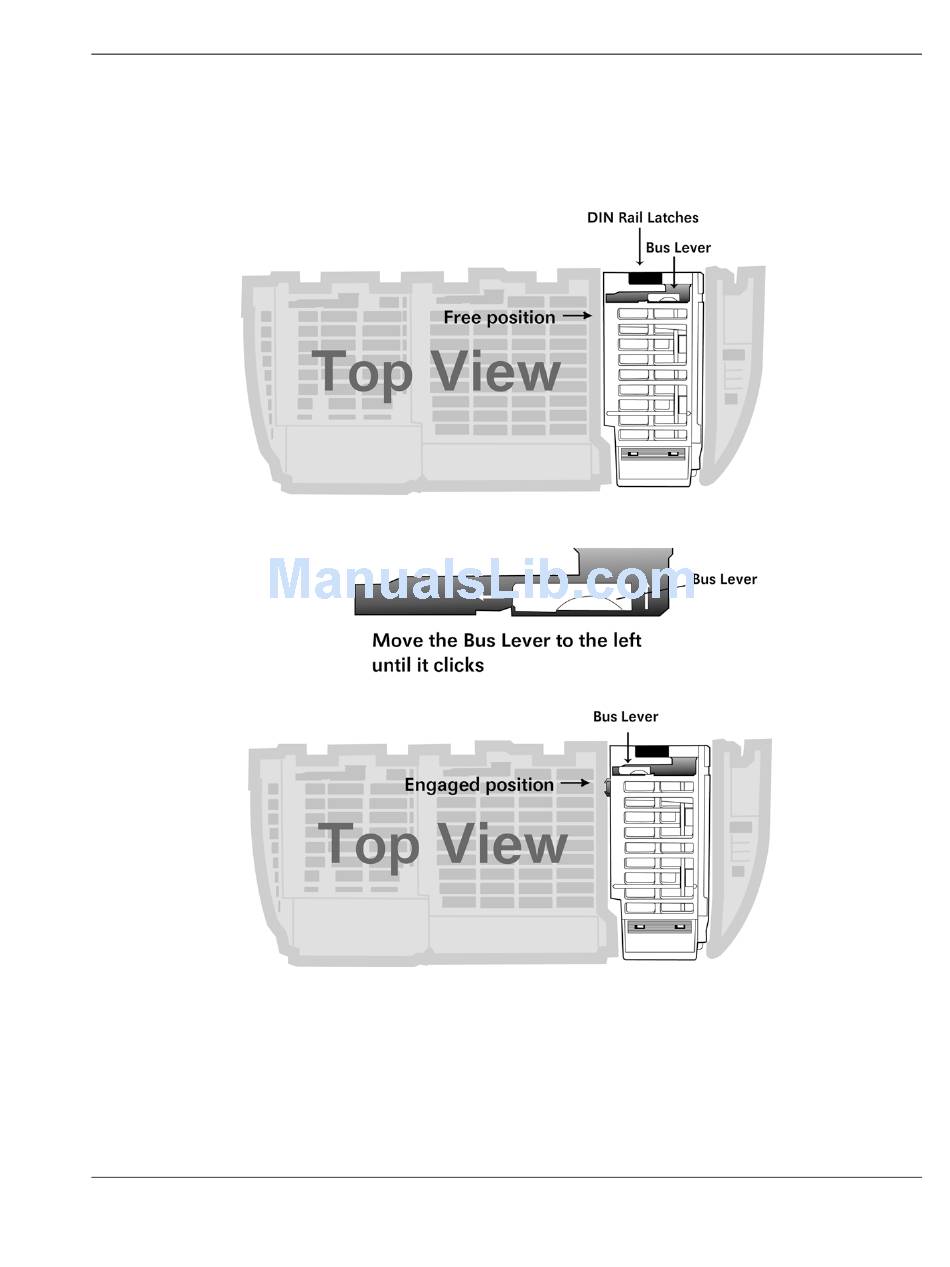

Move the module back along the tongue-and-groove slots until the bus
connectors on the MVI69 module and the adjacent module line up with each
other.
Push the module's bus lever back slightly to clear the positioning tab and
3
move it firmly to the left until it clicks. Ensure that it is locked firmly in place.
4
Close all DIN-rail latches.
