Configuring the MVI69E-MBTCP Using PCB
User Manual
3

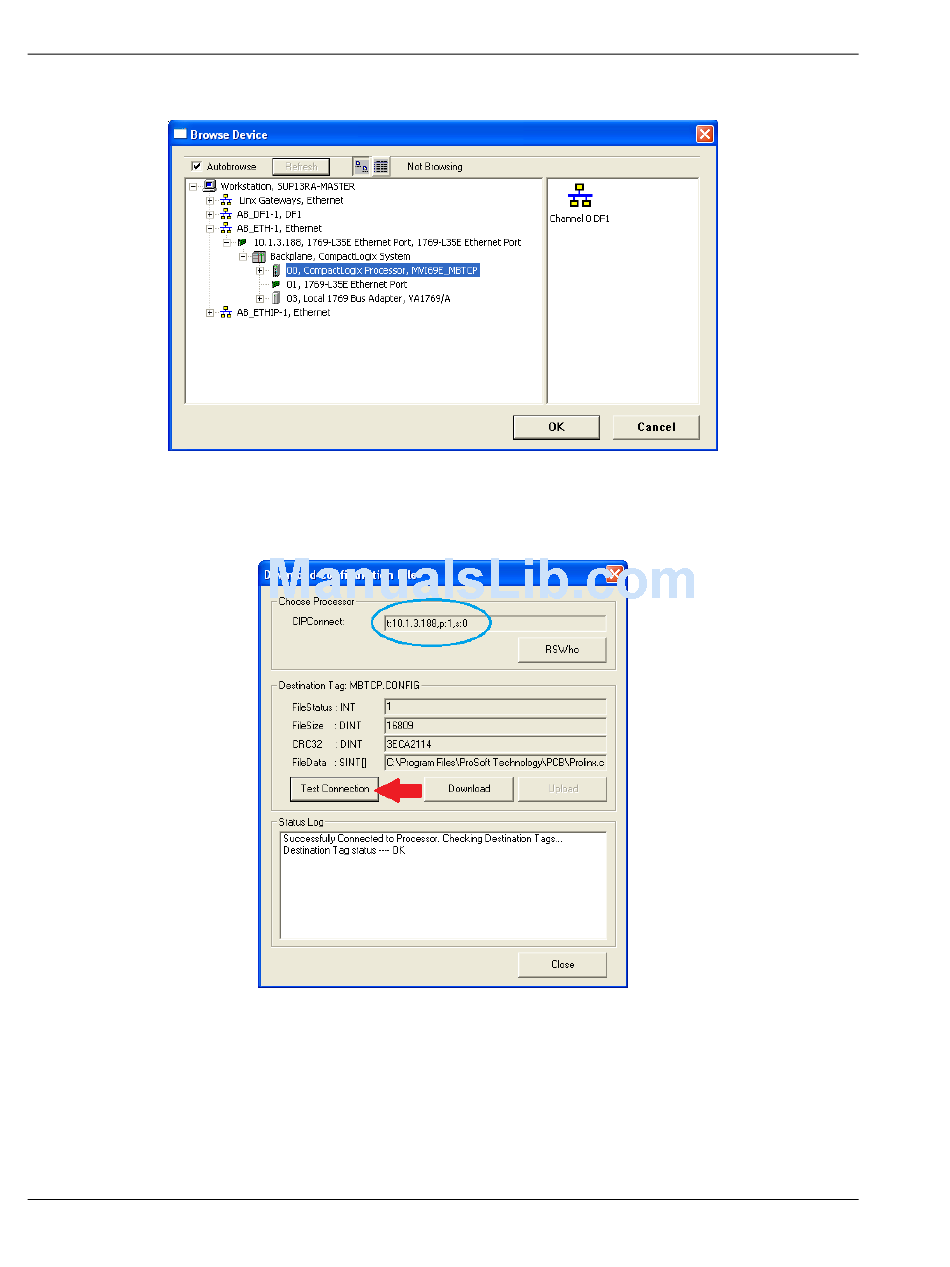

Browse to, and then click the CompactLogix processor and click OK.
4
Notice the CIPConnect path has been updated in the Download Configuration
File dialog box. Click T
successfully connect to the processor.
Page 58 of 150
Modbus TCP/IP Enhanced Communication Module
C
to verify the path is active and can
EST
ONNECTION
MVI69E-MBTCP ♦ CompactLogix Platform
ProSoft Technology, Inc.
June 28, 2017
