2.1.1 Creating a Module in the Project Using an Add-On Profile

Installing an Add-On Profile

Download the AOP file (MVI69x_RevX.X_AOP.zip) from the product webpage

(www.prosoft-technology.com) onto your local hard drive and then extract the

files from the zip archive. Make sure you have shut down RSLogix 5000 and

RSLinx before you install the Add-On Profile (AOP).

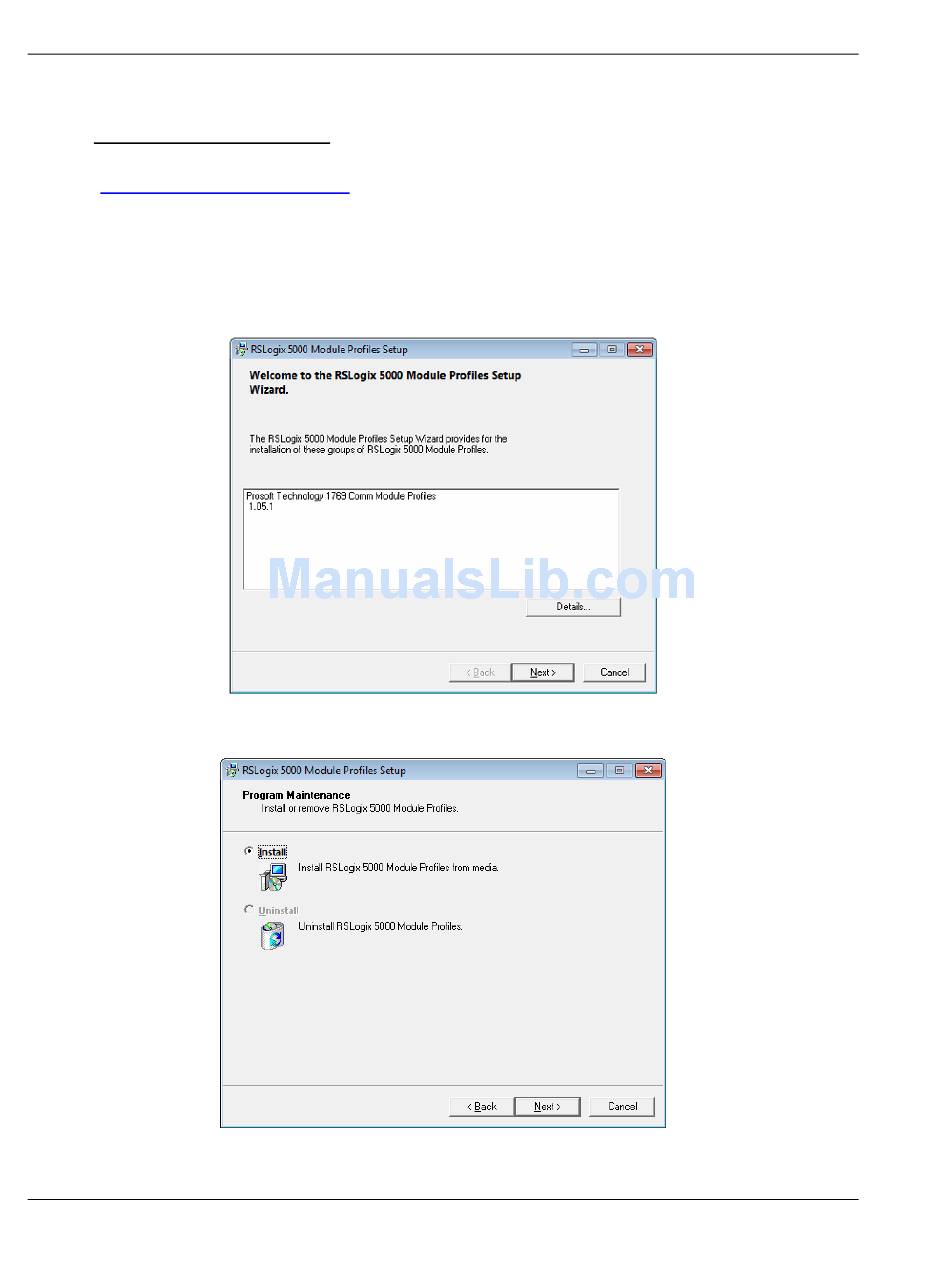

Run the MPSetup.exe file to start the Setup Wizard. Follow the Setup Wizard

to install the AOP.

Continue to follow the steps in the wizard to complete the installation.

Page 18 of 150

MVI69E-MBTCP ♦ CompactLogix Platform

Modbus TCP/IP Enhanced Communication Module

ProSoft Technology, Inc.

June 28, 2017
