MVI69E-MBTCP ♦ CompactLogix Platform
Modbus TCP/IP Enhanced Communication Module
2

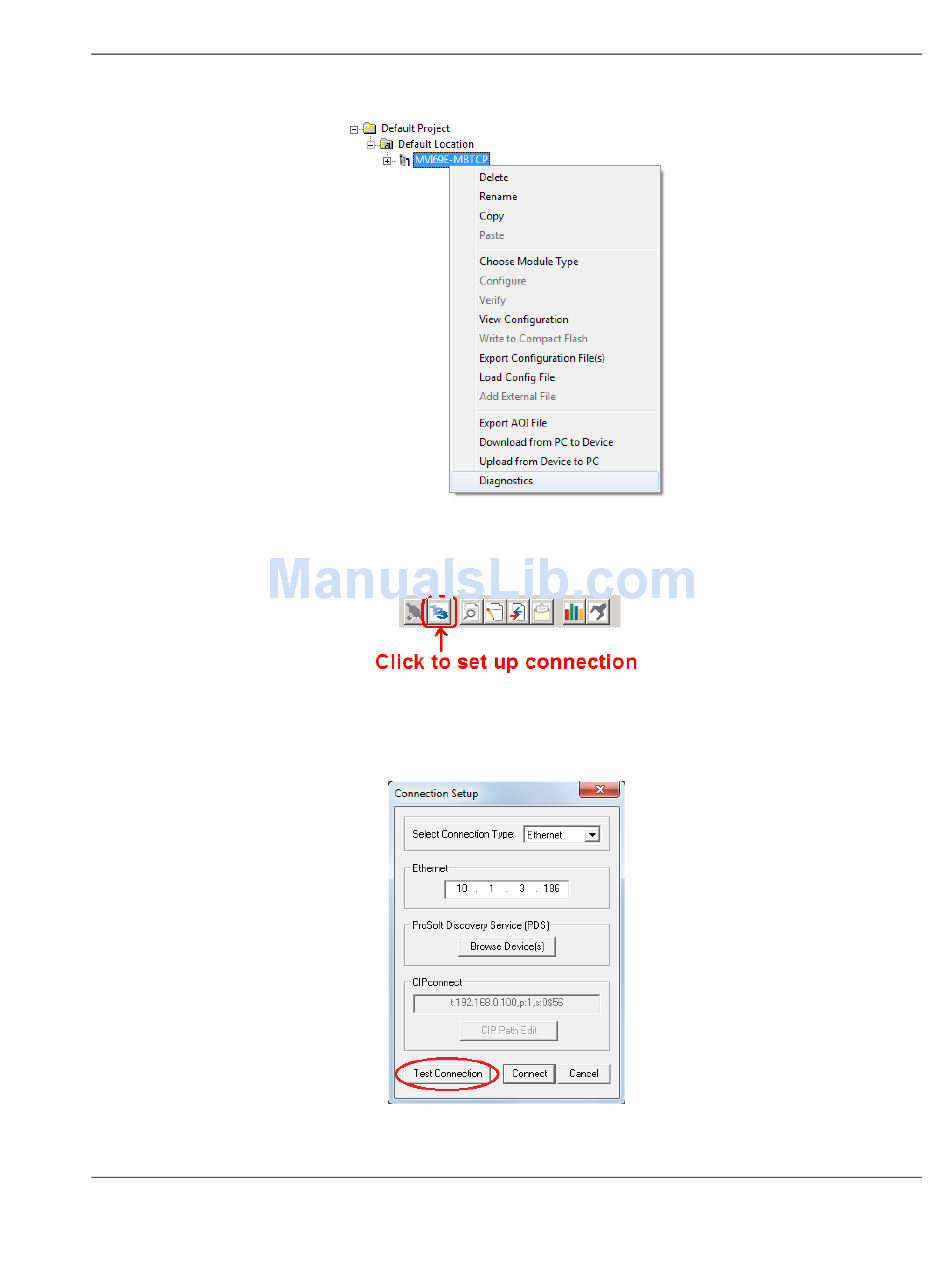

Right-click the module and choose D
3
After the Diagnostics window opens, click the S
browse for the module's IP address.
4
In the Ethernet field of the Connection Setup dialog box, enter the current IP
address, whether it is temporary or permanent. Click T
verify that the module is accessible with the current settings.
ProSoft Technology, Inc.
June 28, 2017
.
IAGNOSTICS
C
ETUP
ONNECTION
EST
Diagnostics and Troubleshooting
User Manual
button to
C
to
ONNECTION
Page 99 of 150
