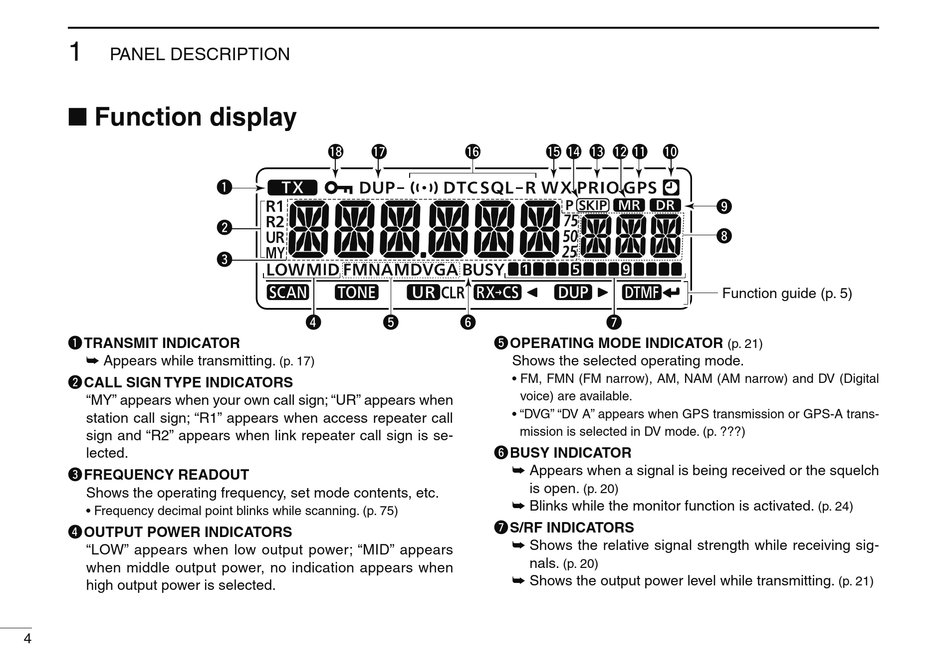

PANEL DESCRIPTION

Function display

q TRANSMIT INDICATOR
Appears while transmitting.
w CALL SIGN TYPE INDICATORS
"MY" appears when your own call sign; "UR" appears when
station call sign; "R1" appears when access repeater call
sign and "R2" appears when link repeater call sign is se-
lected.
e FREQUENCY READOUT
Shows the operating frequency, set mode contents, etc.
• Frequency decimal point blinks while scanning. (p. 75)
r OUTPUT POWER INDICATORS
"LOW" appears when low output power; "MID" appears
when middle output power, no indication appears when
high output power is selected.
4
!8 !7
q
w
e
r t
(p. 17)
!6 !5 !4 !3 !2 !1
y u
t OPERATING MODE INDICATOR
Shows the selected operating mode.
• FM, FMN (FM narrow), AM, NAM (AM narrow) and DV (Digital
voice) are available.
• "DVG" "DV A" appears when GPS transmission or GPS-A trans-
mission is selected in DV mode. (p. ???)
y BUSY INDICATOR
Appears when a signal is being received or the squelch
is open.
(p. 20)
Blinks while the monitor function is activated.
u S/RF INDICATORS
Shows the relative signal strength while receiving sig-
nals.
(p. 20)
Shows the output power level while transmitting.
!0
o
i
