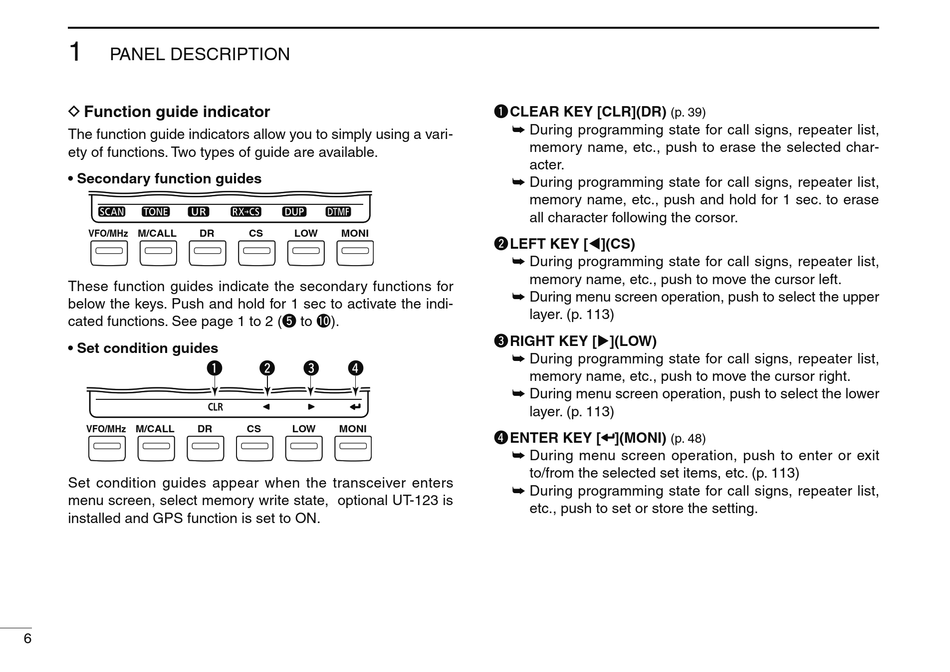

Icom ID-880H Instruction Manual page 21

1
PANEL DESCRIPTION
D Function guide indicator
The function guide indicators allow you to simply using a vari-
ety of functions. Two types of guide are available.
• Secondary function guides
VFO/MHz M/CALL DR
These function guides indicate the secondary functions for
below the keys. Push and hold for 1 sec to activate the indi-
cated functions. See page 1 to 2 (t to !0 ) .
• Set condition guides
VFO/MHz M/CALL DR
Set condition guides appear when the transceiver enters
menu screen, select memory write state, optional UT-123 is
installed and GPS function is set to ON.
6
CS LOW MONI
q w e r
CS LOW MONI
q CLEAR KEY [CLR](DR)
(p. 39)
During programming state for call signs, repeater list,
memory name, etc., push to erase the selected char-
acter.
During programming state for call signs, repeater list,
memory name, etc., push and hold for 1 sec. to erase
all character following the corsor.
w LEFT KEY [ ](CS)
During programming state for call signs, repeater list,
memory name, etc., push to move the cursor left.
During menu screen operation, push to select the upper
layer. (p. 113)
e RIGHT KEY [ ](LOW)
During programming state for call signs, repeater list,
memory name, etc., push to move the cursor right.
During menu screen operation, push to select the lower
layer. (p. 113)
r ENTER KEY [ ](MONI)
(p. 48)
During menu screen operation, push to enter or exit
to/from the selected set items, etc. (p. 113)
During programming state for call signs, repeater list,
etc., push to set or store the setting.
