QUICK REFERENCE GUIDE

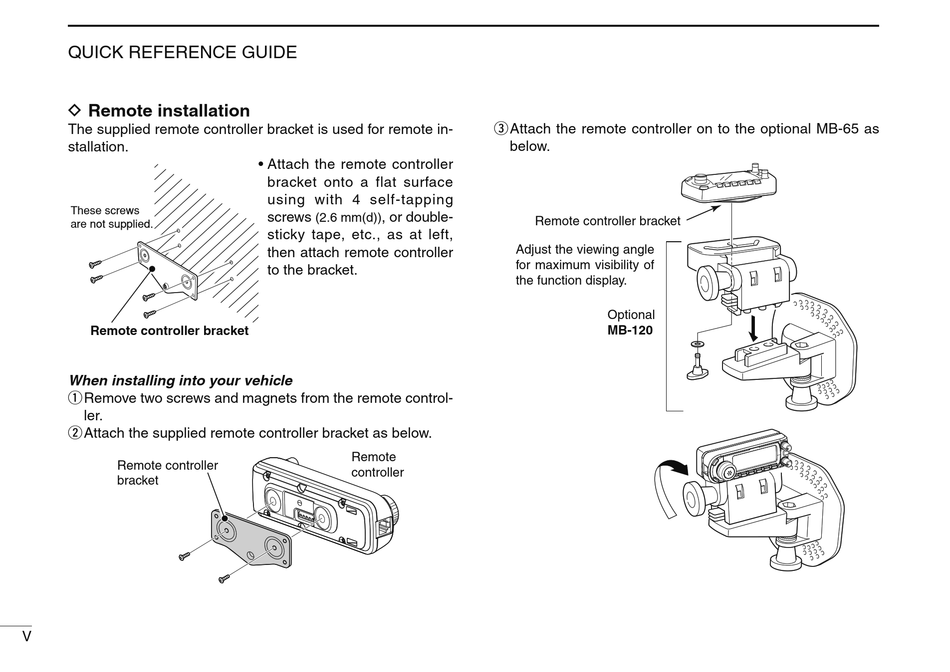

D Remote installation
The supplied remote controller bracket is used for remote in-
stallation.
These screws
are not supplied.
Remote controller bracket
When installing into your vehicle
q Remove two screws and magnets from the remote control-
ler.
w Attach the supplied remote controller bracket as below.
Remote controller
bracket
V
• Attach the remote controller
bracket onto a flat surface
using with 4 self-tapping
screws , or double-
(2.6 mm(d))
sticky tape, etc., as at left,
then attach remote controller
to the bracket.
Remote
controller
e Attach the remote controller on to the optional MB-65 as
below.
Remote controller bracket
Adjust the viewing angle
for maximum visibility of
the function display.
Optional
MB-120
