Icom ID-880H Instruction Manual page 8

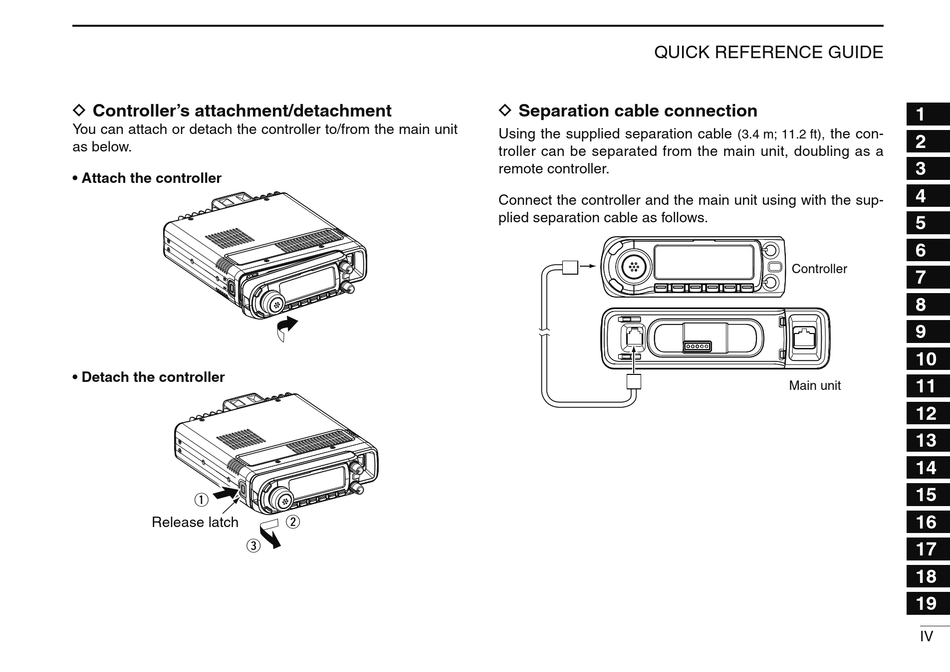

D Controller's attachment/detachment
You can attach or detach the controller to/from the main unit
as below.
• Attach the controller
• Detach the controller
q
Release latch
e
w
QUICK REFERENCE GUIDE
D Separation cable connection
Using the supplied separation cable
troller can be separated from the main unit, doubling as a
remote controller.
Connect the controller and the main unit using with the sup-
plied separation cable as follows.
1
the con-
(3.4 m; 11.2 ft),
2
3
4
5
6
Controller
7
8
9
10
11
Main unit
12
13
14
15
16
17
18
19
IV
