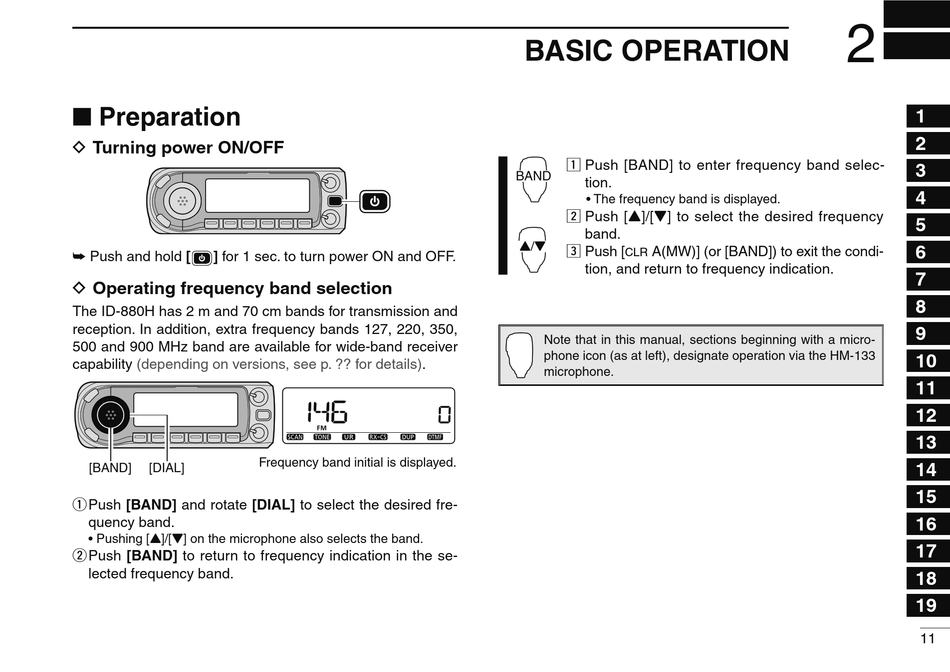

Icom ID-880H Instruction Manual page 26

Preparation
D Turning power ON/OFF
Push and hold [ ] for 1 sec. to turn power ON and OFF.
D Operating frequency band selection
The ID-880H has 2 m and 70 cm bands for transmission and
reception. In addition, extra frequency bands 127, 220, 350,
500 and 900 MHz band are available for wide-band receiver
capability (depending on versions, see p. ?? for
[BAND] [DIAL]
q Push [BAND] and rotate [DIAL] to select the desired fre-
quency band.
• Pushing [Y]/[Z] on the microphone also selects the band.
w Push [BAND] to return to frequency indication in the se-
lected frequency band.
details).
Frequency band initial is displayed.
BASIC OPERATION
z Push [BAND] to enter frequency band selec-
BAND
tion.
• The frequency band is displayed.
x Push [Y]/[Z] to select the desired frequency
band.
Y/Z
c Push [
A(MW)] (or [BAND]) to exit the condi-
CLR
tion, and return to frequency indication.
Note that in this manual, sections beginning with a micro-
phone icon (as at left), designate operation via the HM-133
microphone.
2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
11
