Remote Management of InfiniteStorage 6120

The InfiniteStorage 6120 can be managed locally through the RS-232 interface or remotely via SSH.
The CLUI is the same regardless of the management interface (RS-232 or SSH).
3.6.1

Network Connection

Connect the Telnet port on the back of the controllers to your Ethernet network
configure the network interface as described below.

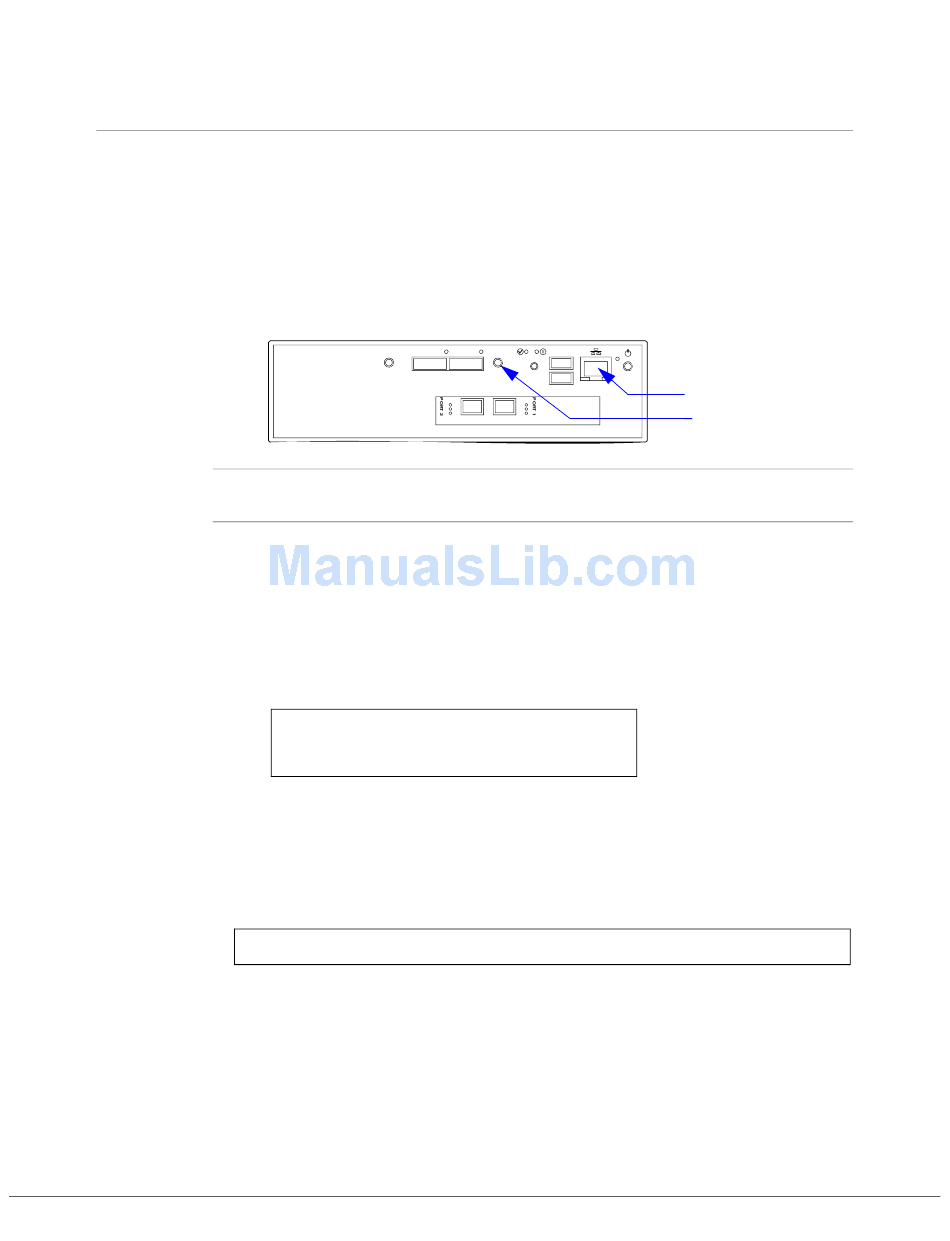

Figure 81. Connectors on Controller
NOTE : Currently, the InfiniteStorage 6120 does not support network configuration
protocols such as DHCP or BOOTP.
3.6.2

Network Interface Setup

UI SHOW NETWORK_INTERFACE [LOCAL|REMOTE] * displays the list of the network interfaces
with their associated controller IDs and devices
controller that you are currently logged into. REMOTE gives you information from the other controller
in the pair.
Figure 82. Current Network Interface Settings Screen
To change the network interface settings on the controller you are connected to, enter this command:
UI SET NETWORK_INTERFACE LOCAL IP_ADDRESS=<ip_address> IP_MASK=<netmask>
IP_GATEWAY=<gateway>
where <ip_address> is an address appropriate to the local network. The netmask and gateway values
can also be entered
Figure 83. Set Network Interface Example
RAID$ ui set network_interface local ip_address=10.32.31.31 ip_mask=255.255.240.0 ip_gateway=10.32.16.2
NETWORK_INTERFACE 0 set with STATUS='Success' (0x0)
Enter command SHUTDOWN SUBSYSTEM RESTART to restart the controllers and make the changes
take effect.
3.6.3

Logins

By default, the login name is user and its password is user.
Only one SSH session is permitted at a time. Once a SSH session is initiated, the RS-232 console
switches to a CLI sub-shell. The SSH client should be using port 22 with its local echoing function
disabled.
