1.2.5

Drive Expander Module (DEM) Card

The InfiniteStorage 6120 contains eight (8) top-loadable, hot-swappable DEMs
DEMs provide the SAS connectivity between the controllers and the HDDs located with the
enclosure.
The DEMs are organized into four module pairs, with each module pair controlling a bank of 15
drives. If a DEM card fails, its sister card will provide continuous operation of the unit until a
replacement is inserted bringing the unit back to full redundancy.
Each DEM
within which it is installed. Each card provides power control signals to each drive slot. It controls
HDD identify/service LEDs and monitors the status from partner DEM. Each pair of DEMs supports
15 drives.
0 0 7 - 5 5 3 3 - 0 0 1

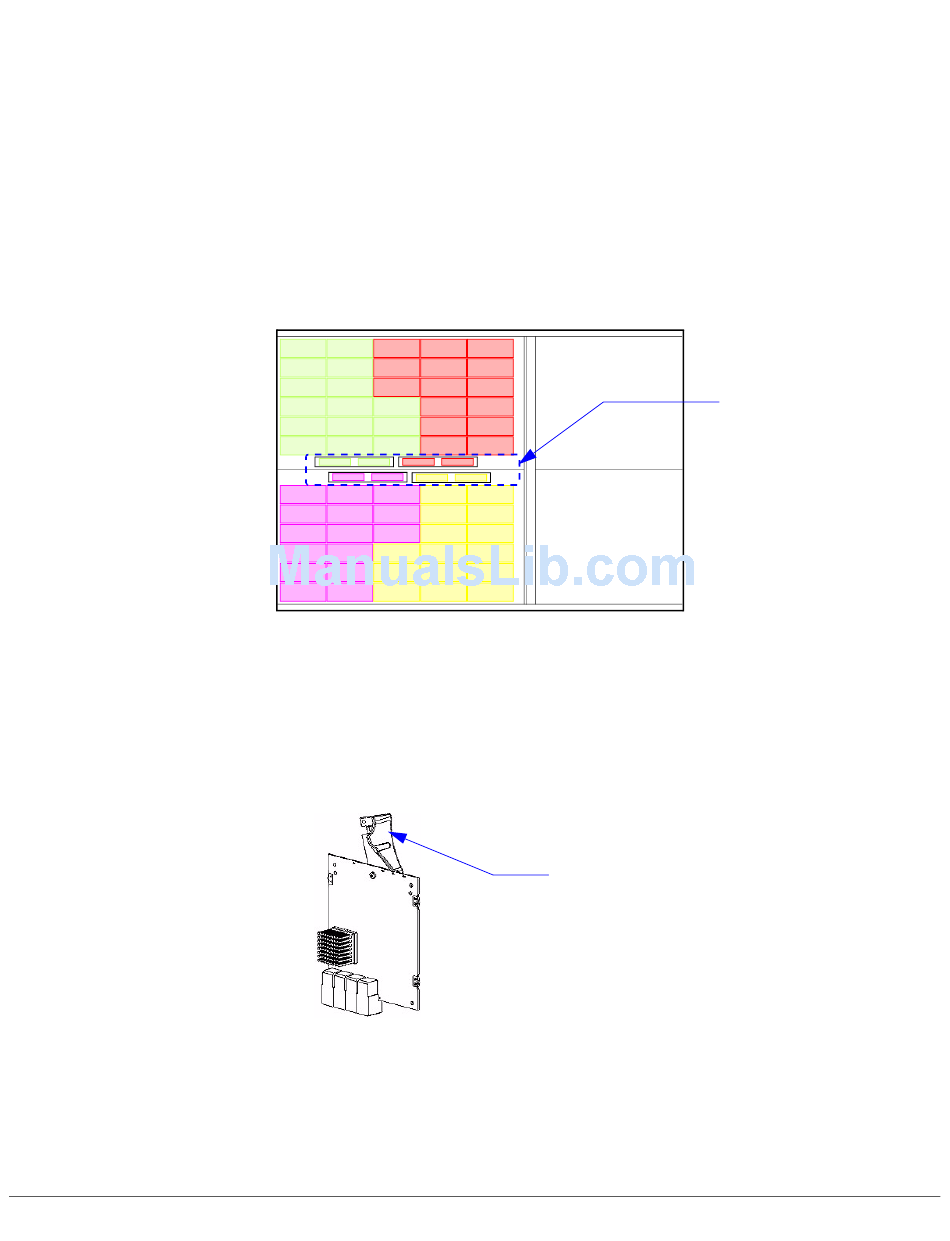

Figure 9. DEM Card Locations (Viewing from Top)
connects to a single port of the HDD based on the location within the enclosure
(Figure 10)
Figure 10. DEM Card
The InfiniteStorage 6120 System Hardware
DEM Card x 8
Locking Mechanism
. The
(Figure 9)
