Using two (2) 10-32 ×0.50" (100d) Phillips flathead screws for each CMA, attach the CMA to
5.
the CMA brackets
the CMA directly to the rack, above the rail kits. For square-hole rack, add 100d #10 shoulder
washers.
6. With the help of a partner, hold the chassis close to the rail kits. Align the rear flanges on chassis
with the rail kit flanges
(slide in about 12 inches until stopped). Then slide the chassis out until locked. Depress the
slider locks and proceed to slide the chassis all the way in.
Secure the two CMA to rear of chassis with two (2) 8-32 ×0.25" Phillips panhead screws.
7.
0 0 7 - 5 5 3 3 - 0 0 1
. If the depth of your rack is 25.5 inches (647 mm) or less, attach
(Figure 17)
and slide the chassis into rack until the sliders are engaged
(Figure 17)

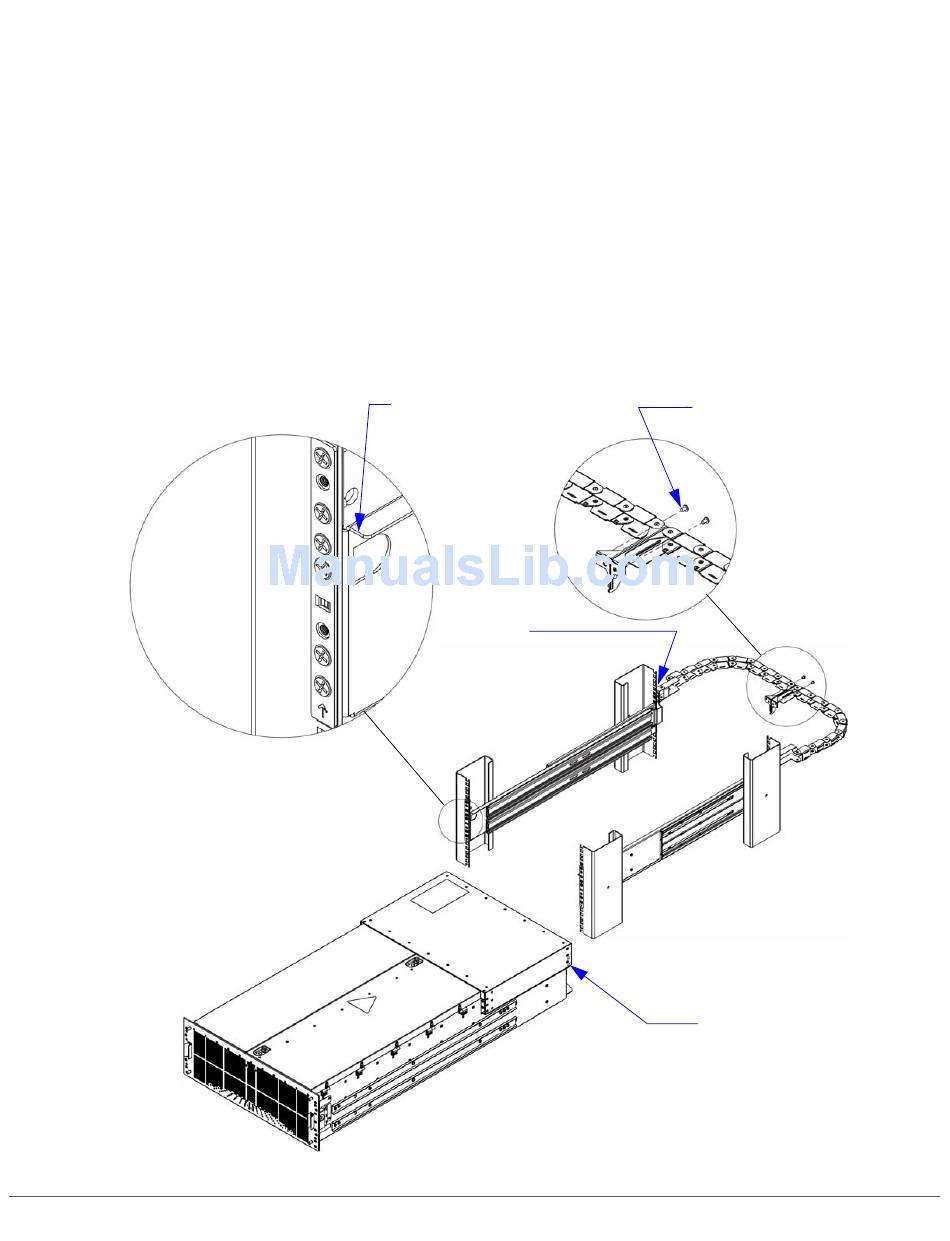

Figure 17. Install Chassis to Rack
Rail Kit Flange
(Rear Flange of Chassis
must set on Rail Kit Flange)
Attach CMA with
(2) 10-32x0.50" (100d)
Phillips Flathead Screws
(Add 100d #10 Shoulder Washers
for Square-Hole Rack)
Setting Up the InfiniteStorage 6120
Attach CMA to Chassis with
(2) 8-32x0.25" Phillips
Panhead Screws
Rear Flange on Chassis
