Page 1 Export Administration Regulations. Export of this data to any foreign country, or disclosure of this data to a Non-US person, may be a violation of Federal law. Sea Tel, Inc. Thrane & Thrane A/S (trading as Cobham SATCOM) (trading as Cobham SATCOM) 4030 Nelson Avenue Lundtoftegaardsvej 93 D, 2800 Kgs.
Page 2 The information contained in this document is proprietary to Sea Tel, Inc. This document may not be reproduced or distributed in any form, without prior written consent of Sea Tel, Inc. The information in this document is subject to change without notice. Sea Tel Inc. is also doing business as Cobham SATCOM. Revision History...
Page 3 Sea Tel Inc. 4030 Nelson Ave., Concord California, 94520, USA T: +1 (925) 798-7979 F: +1 (925) 798-7986 RED Declaration of Conformity Sea Tel Inc. declares under our sole responsibility that the products identified below are in compliance with the requirements of: RED Directive 2014/53/EU concerning maritime Radio Equipment as described in the harmonized standards listed below and the mutual recognition of their conformity.
Page 4 Sea Tel Inc. 4030 Nelson Ave., Concord California, 94520, USA T: +1 (925) 798-7979 F: +1 (925) 798-7986 RED Declaration of Conformity Sea Tel Inc. declares under our sole responsibility that the products identified below are in conformity with the requirements of: RED Directive 2014/53/EU concerning maritime Radio Equipment as described in the harmonized standards listed below and the mutual recognition of their conformity.
Page 5 0.2 degrees, thus meeting the requirements of § 25.221 (a)(1)(iii). Sea Tel maintains all relevant test data, which is available upon request, to verify these declarations. 4/16/2013 Peter Blaney, Chief Engineer Date Cobham – SATCOM Sea Tel Products. Document Number 130449 Revision F...
Page 6 Sea Tel Inc. 4030 Nelson Ave., Concord California, 94520, USA T: +1 (925) 798-7979 F: +1 (925) 798-7986 FCC Declaration of Conformity Sea Tel, Inc. designs, develops, manufactures and services marine stabilized antenna systems for satellite communication at sea. These products are in turn used by our customers as part of their Ku- band Earth Station on Vessels (ESV) networks.
Page 7: Table Of Contents
Table of Contents Sea Tel 9711-56 IMA 1. SAFETY ............................1-1 2. INTRODUCTION ........................... 2-1 2.1....................... 2-1 ENERAL YSTEM ESCRIPTION 2.2.............................. 2-1 URPOSE 2.3........................ 2-1 THER NPUTS TO THE YSTEM 2.4........................... 2-1 YSTEM OMPONENTS 2.5......................2-2 NTENNA ONFIGURATION 2.6.
Page 8 Sea Tel 9711-56 IMA Table of Contents 4.4.7. Close the 144” Radome Assembly .................... 4-23 4.5. ADE ......................4-24 REPARING TO OIST THE 4.6. ADE ......................... 4-25 NSTALLING 4.6.1. Hoist the ADE ......................... 4-25 4.6.2. Connecting the ADE ........................ 4-25 4.6.3.
Page 9 Table of Contents Sea Tel 9711-56 IMA 7.1........................7-1 ETTING THE 7.2. NO S ..................... 7-1 F THERE IS HIPS OMPASS 8. SETUP – TRACKING RECEIVER – VSAT ..................8-1 8.1. IF T ) .................. 8-1 ETERMINING THE RACKING REQUENCY 8.2.
Page 10 Sea Tel 9711-56 IMA Table of Contents 17.3.2. Installing the Linear/Circular Selectable Feed Assembly ............17-5 17.3.3. Installing the Ku-Band Co-Pol/Cross-Pol Feed Assembly ............17-8 17.4. B ........................17-12 ALANCING THE NTENNA 17.4.1. Fine Balance and Monitoring Motor Drive Torque ..............17-13 18.
Page 11: Safety
User access to the interior of the antenna control unit (ACU) is prohibited. Only a technician authorized by Cobham SATCOM may perform service - failure to comply with this rule will void the warranty. Access to the interior of the Above Deck Equipment (ADE) is allowed. Inspection of certain components as described in the Scheduled Inspections Manual may be accomplished by an engineer onboard.
Page 12 Safety Sea Tel 9711-56 IMA This Page Intentionally Left Blank EAR Controlled - ECCN EAR99...

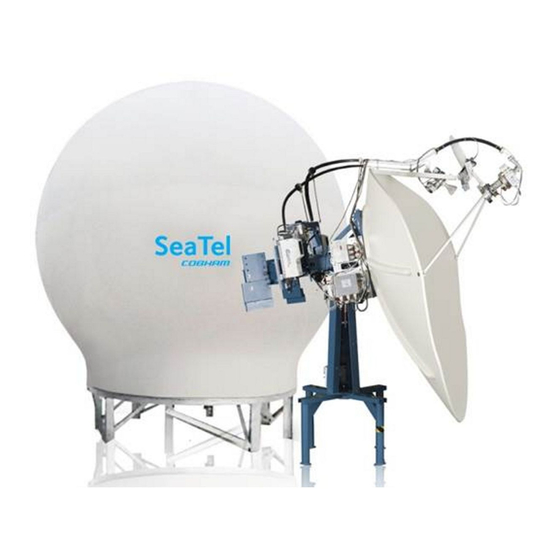

Page 13: Introduction
Sea Tel 9711-56 IMA Introduction Introduction WARNING: RF Radiation Hazard - This stabilized antenna system is designed to be used with transmit/receive equipment manufactured by others. Refer to the documentation supplied by the manufacturer which will describe potential hazards, including exposure to RF radiation, associated with the improper use of the transmit/receive equipment.
Page 14: Dual Antenna Configuration
Introduction Sea Tel 9711-56 IMA Satellite Modem and other below decks equipment required for the desired communications purposes. 4. Spectrum Analyzer (Optional) Control, RF and Other cable connections Figure 1 -1 Series 11 TXRX Simplified Block Diagram 2.5. Dual Antenna Configuration Sometimes, due to very large blockage conditions, you may need to install a dual antenna configuration to provide uninterrupted services.
Page 15: Dual Network Arbitrator
Sea Tel 9711-56 IMA Introduction When one antenna is blocked, its blockage output will command the arbitrator panel to switch services to the modem from that antenna to the other antenna. The arbitrator panel provides a logic latch to prevent excess switching when the ship heading is yawing, therefore, causing if the antenna to be repeatedly blocked –...
Page 16: Fcc Compliance
Introduction Sea Tel 9711-56 IMA 2.9. FCC Compliance This antenna system, with current software, contain FCC compliant supervisory software to continuously monitor the pedestal pointing error. This supervisory software will trip an error flag, which will automatically cease transmission within 100 milliseconds, if the pointing error should exceed 0.5 degrees. Transmission will not resume until the pointing error drops below 0.2 degrees.
Page 17: Site Survey
Sea Tel 9711-56 IMA Site Survey Site Survey There are three objective of the site survey. The first is to find the best place to mount the antenna and the BDE. The second is to identify the length and routing of the cables and any other items or materials that are required to install the system.
Page 18: Antenna Shadowing (Blockage) And Rf Interference
Site Survey Sea Tel 9711-56 IMA 3.2. Antenna Shadowing (Blockage) and RF Interference At the transmission frequencies of this satellite antenna system, any substantial structures in the way of the beam path will cause significant degradation of the signal. Care should be taken to locate the ADE so that it has direct line-of-sight with the satellite without any structures in the beam path through the full 360 degree ships turn.
Page 19: Mounting Height And Fore-Aft Location
Sea Tel 9711-56 IMA Site Survey All welding should be full penetration welds –V-groove welds with additional fillet welds – with throats equivalent to the thickness of the thinnest base material. 8. For an ADE mounted greater than 0.6 meters (24 inches) above the ship’s structure, at least one (1) foot rung should be added.
Page 20: Mast Configurations
Site Survey Sea Tel 9711-56 IMA 3.5. Mast Configurations Sea Tel recommends the ADE be mounted on the ship in a location which has both a clear line-of-sight to the target satellites in all potential azimuth/elevation ranges and sufficient support against vibration excitement. If possible, mounting the ADE pedestal directly to ship deckhouse structures or other box stiffened structures is preferred.
Page 21: Raked Masts
Sea Tel 9711-56 IMA Site Survey 3.5.2. Raked Masts Raked masts are found on vessels where the style or appearance of the entire vessel is important. Again, the inclined mast is a direct descendant from the masts of sailing ships – as ship owners wanted their vessels to look more unique and less utilitarian, they ‘raked’...
Page 22: Safe Access To The Ade
Site Survey Sea Tel 9711-56 IMA millimeters in depth and 10 millimeters in thickness. 2. When possible, the antenna ADE pedestal column should align with a vertical truss support. For every 100 kilograms of ADE weight over 250 kilograms, the depth of the platform stiffeners should be increased by 50 millimeters and thickness by 2 millimeters.
Page 23: Antenna Power Cable
Sea Tel 9711-56 IMA Site Survey Be careful of sharp bends that kink and damage the cable. Use a proper tubing bender for Heliax bends. Penetrations in watertight bulkheads are very expensive, single cable, welded penetrations that must be pressure tested. Always use good quality connectors that are designed to fit properly on the cables you are using.
Page 24 Site Survey Sea Tel 9711-56 IMA This Page Intentionally Left Blank EAR Controlled - ECCN EAR99...
Page 25: Installation In 144" Radome
Sea Tel 9711-56 IMA Installation in 144” Radome Installation in 144” Radome This section contains instructions for unpacking, final assembly and installation of the equipment. It is highly recommended that final assembly and installation of the Antenna system be performed by trained technicians. Read this complete chapter before starting.
Page 26: Separate The Base Frame & Radome Crates
Installation in 144” Radome Sea Tel 9711-56 IMA Assure that you have a large, flat, level, open area to sub-assemble the general assembly and the upper & lower sections of the radome. This area should be clean and free of debris. The site should also provide protection from wind, rain and other adverse weather.
Page 27: Assembling The Above Decks Equipment (Ade)
Sea Tel 9711-56 IMA Installation in 144” Radome CAUTION: The baseframe crate weighs 650 lbs. Do NOT attempt to move it or lay it down by hand. Use a forklift to lay the crate down and move it, as described in the following steps. 4.
Page 28: Base Frame
Installation in 144” Radome Sea Tel 9711-56 IMA 4.4.1. Base Frame To open and prepare the Base Frame use the following procedure. Remove the screws around 3 sides of the perimeter of the base of the crate. Leave this side (with the Opening) in place 2.
Page 29: Marine Air Conditioner
Sea Tel 9711-56 IMA Installation in 144” Radome To remove the base frame from the pallet, remove the 4 lag bolts from the FORE & AFT legs. 6. Remove the 4 lag bolts from the PORT & STARBOARD legs (bolts are up through the pallet with flat, lock &...
Page 30 Installation in 144” Radome Sea Tel 9711-56 IMA 1 ea 117319-4 LOCTITE PRODUCTS, 242 THREADLOCKER, .5 ML 8 ea 114593-162 SCREW, SOCKET HD, 10-32 x 3/8, SS. 8 ea 114581-011 WASHER, LOCK, #10, SS. 8 ea 114580-011 WASHER, FLAT, #10, SS. •...
Page 31 Sea Tel 9711-56 IMA Installation in 144” Radome 2. Remove the screws around perimeter of the 3 remaining sides at the base of the crate. To avoid damaging the feed or waveguide, tilt the open end of the top of the crate 4.
Page 32 Installation in 144” Radome Sea Tel 9711-56 IMA 10. Cut the bands from and remove the counter-weight and hardware boxes. 11. Set the counter-weight box aside in a protected location until you are ready to rebalance the antenna. 12. Remove the 4 lag bolts from the spider legs that are farthest from the edge of the pallet.
Page 33 Sea Tel 9711-56 IMA Installation in 144” Radome 17. Open the GA Assembly Hardware Kit. 18. Set the Az Post/Spider on base frame (ground strap forward) and align the mounting holes in the feet of the spider to the holes in the base pan.
Page 34 Installation in 144” Radome Sea Tel 9711-56 IMA 27. Mount the feed assembly with the Linear drive motor at Strut 3. 28. Apply Loctite 242 to, install and tighten the eight screws, lock washer & flat washer (see red arrows) through the front of the scalar plate and into the end of the drop-in feed...
Page 35 Sea Tel 9711-56 IMA Installation in 144” Radome 33. Route the C-Band feed harness along the rigid waveguide, around the back/top of the reflector to the right side where the ICU and QOR Switch Box are located. 34. Connect the C-Band feed harness to QOR switch box J4 connector and tighten the retainer screws.
Page 36 Installation in 144” Radome Sea Tel 9711-56 IMA 42. Pass lifting straps through eyes in the top of the cross- level beam. These starps must be long enough to clear the top of the waveguides (as seen in the next picture). 43.
Page 37 Sea Tel 9711-56 IMA Installation in 144” Radome 47. Carefully guide the cables & isolation spring down through the top of the Az post as the pedestal & reflector assembly is lowered. 48. Hold the pedestal & reflector assembly just above the top of the AZ Post.
Page 38 Installation in 144” Radome Sea Tel 9711-56 IMA 54. Locate the louvered panel which has the breaker box mounted in it (this is the AFT panel). 55. Set it in place at the AFT section of the AZ Post. 56. Connect power to breaker by mating the power plugs.
Page 39: Open The Radome Crate
Sea Tel 9711-56 IMA Installation in 144” Radome The pedestal & reflector assembly is now installed on the base frame assembly. 4.4.4. Open the Radome Crate We recommend that you place the Radome Crate in the area that you have chosen to assemble the Radome onto the base frame.
Page 40: Assembling The Lower Radome Panels
Installation in 144” Radome Sea Tel 9711-56 IMA Radome Panels Radome hardware kit Silicon Adhesive Radome Cap Use diagonal cutters, or shears, to cut the bands that restrain the radome panels in the crate. Do not remove the panels at this time, they will be removed during the radome assembly (refer to the Antenna Manual, Installation...
Page 41 Sea Tel 9711-56 IMA Installation in 144” Radome assembled very quickly. With three bolts loosely holding each flange the radome will then stand as a loose bowl and the extra 5 people can leave. Loosely install the rest of the hardware in each flange. NOTE: Unless otherwise indicated, all nuts and bolts should be assembled with Loctite 2760 or its equivalent.
Page 42 Installation in 144” Radome Sea Tel 9711-56 IMA 4. Set the assembled panels on the base frame assembly and align the center of the door to be directly above the AFT marking on the base frame. Loosely install bolts, fender washers and nuts to attach the panels to the base frame using the hardware provided.
Page 43: Sub-Assemble The Upper Panels Of The 144" Radome Assembly
Sea Tel 9711-56 IMA Installation in 144” Radome 9. Clean excess caulking off of the flange area (inside and out). The empty caulking tubes can be used to clean off the excess caulk without scratching the radome finish. 10. Repeat caulking, closing and cleaning the vertical flanges until all of the lower panel vertical seams are closed.
Page 44 Installation in 144” Radome Sea Tel 9711-56 IMA Only 2 people are required to sub-assemble the top of the radome. On a flat surface, adjoin two panels and loosely install a bolt/nut high, mid and low in the adjoined flange. 2.
Page 45 Sea Tel 9711-56 IMA Installation in 144” Radome 6. Open each seam wide enough to install a good bead of silicone caulk. Working from top to bottom apply Loctite to and then firmly tighten all of the bolts in that seam (smaller dual beads of caulking can be applied from outside and inside if you prefer).
Page 46 Installation in 144” Radome Sea Tel 9711-56 IMA Install 4 radome lifting brackets (PN 131514-2, shown here, can be purchased separately), or other lifting arrangement, to four opposite vertical flange mounting points (every other vertical flange). 18. Hold the bracket under the bottom flange and install a bolt and fender washer down through the hole on one side of the vertical seam, through the slot on that side of the...
Page 47: Close The 144" Radome Assembly
Sea Tel 9711-56 IMA Installation in 144” Radome 4.4.7. Close the 144” Radome Assembly Refer to the Radome Assembly drawing for your system and the procedure below. Hoist the upper section of the radome up over the reflector & feed assembly and set it down onto the lower section of the radome.
Page 48: Preparing To Hoist The Ade
Installation in 144” Radome Sea Tel 9711-56 IMA Continue caulking toward the next bracket, using wedges to keep the horizontal seam open if necessary. 6. Repeat steps 4 & 5 until all four brackets have been removed and caulking of the entire horizontal seam is completed.
Page 49: Installing The Ade
Sea Tel 9711-56 IMA Installation in 144” Radome 4.6. Installing The ADE WARNING: Hoisting with other than a webbed four-part sling may result in catastrophic crushing of the radome. Refer to the specifications and drawings for the fully assembled weight of your model Antenna/Radome and assure that equipment used to lift/hoist this system is rated accordingly.
Page 50: Remove Stow Straps
Installation in 144” Radome Sea Tel 9711-56 IMA Connect the TXIF coaxial cable that runs between the above decks and below decks equipment to the TX connector on the interconnect bracket inside the louvered panels of the AZ Post. 8. Connect the RXIF coaxial cable that runs between the above decks and below decks equipment to the RX connector on the interconnect bracket inside the louvered panels of the AZ Post.
Page 51 Sea Tel 9711-56 IMA Installation in 144” Radome 4.7.3.2. J1 Modem RX Connect this RXIF Output to the satellite modem RX Input using an appropriate coaxial cable. 4.7.3.3. J2 RJ - Antenna RX Connect this RXIF Input from the antenna to this port on the rear panel of the MXP using coaxial cable provided 4.7.3.4.
Page 52 Installation in 144” Radome Sea Tel 9711-56 IMA 4.7.3.13. J12 Aux 232 Auxiliary wired RS-232 connection. Wiring is: Pin 1 - GND Ground Pin 2 - Aux IN1 Modem Lock Input 1 - See modem setup chapter. Pin 3 - Aux IN2 Modem Lock Input 2 - See modem setup chapter.
Page 53: Other Bde Connections
Sea Tel 9711-56 IMA Installation in 144” Radome 4.7.3.15. J14 Aux 232 Antenna M&C Serial connections. The +12 VDC output is only intended to power a very low current consumption device, do NOT exceed 125ma MAX. Wiring is: Pin 1 Pin 2 Pin 3 Pin 4...
Page 54: Cyber Security Caution
Installation in 144” Radome Sea Tel 9711-56 IMA 4.9. Setup - Media Xchange Point™ (MXP) Now that you have installed the hardware, you will need to setup, calibrate and commission the antenna. You may also need to load/update the modem option file, which is not part of the scope of this manual, contact the airtime provider NOC for guidance.
Page 55: Installation In 168" Radome
Sea Tel 9711-56 IMA Installation in 168” Radome Installation in 168” Radome This section contains instructions for unpacking, final assembly and installation of the equipment. It is highly recommended that final assembly and installation of the Antenna system be performed by trained technicians. Read this complete chapter before starting.
Page 56: Assembling The Ade
Installation in 168” Radome Sea Tel 9711-56 IMA Assure that you have a large, flat, level, open area to sub-assemble the general assembly and the upper & lower sections of the radome. This area should be clean and free of debris. The site should also provide protection from wind, rain and other adverse weather.
Page 57 Sea Tel 9711-56 IMA Installation in 168” Radome Bolt the eight 6 inch feet to the under side of the radome base frame using the hardware provided. Loosely assemble all feet before tightening any of the bolts and apply Loctite. Temporarily remove the support blocks, or jacks, and set the base...
Page 58: Radome General Subassembly Guidance
Installation in 168” Radome Sea Tel 9711-56 IMA Apply a good 3/8 inch bead of silicon sealant to seal the centerline of the two adjoined halves of the base pan to keep wind, water and dirt from getting into the radome from underneath.
Page 59: Sub-Assemble The 168" Radome Assembly
Sea Tel 9711-56 IMA Installation in 168” Radome 5.3.3. Sub-assemble the 168” Radome Assembly Refer to the Radome Assembly drawing for your system and the procedure below. It is best to have at least TWO people sub-assembling the radome, one working from the inside and the other outside.
Page 60 Installation in 168” Radome Sea Tel 9711-56 IMA Repeat caulking, closing and cleaning the vertical flanges until all of the riser panel seams are closed. 6. Remove the tape from the vertical seams. The riser section of the radome is now complete. 8.
Page 61 Sea Tel 9711-56 IMA Installation in 168” Radome 15. To provide a clean caulked seam all around the panels: apply painters masking tape to the outside perimeter of each of the panels about ¼ “ from the top, bottom, left and right edges at each flange joint.
Page 62 Installation in 168” Radome Sea Tel 9711-56 IMA 16. Open each seam wide enough to install a good bead of silicone caulk, apply loctite to and then firmly tighten all of the bolts in that seam (Smaller beads of caulking can be applied from outside and inside if you prefer).
Page 63 Sea Tel 9711-56 IMA Installation in 168” Radome 22. Attach 4 radome lifting brackets (PN 131514-2), or other lifting arrangement, to four opposite vertical flange mounting points (every other vertical flange). Orient the brackets with the shackle inside the perimeter of the bottom radome flange.
Page 64 Installation in 168” Radome Sea Tel 9711-56 IMA 31. Continue caulking toward the next bracket, using wedges to keep the horizontal seam open if necessary. 32. Repeat steps 49 & 50 until all four brackets have been removed and caulking of the entire horizontal seam is completed.
Page 65 Sea Tel 9711-56 IMA Installation in 168” Radome NOTE: It is extremely important to assure that the flanges are properly aligned before the bolts are tightened and kept in alignment as the hardware is aligned. This is necessary for the inside clearance and the outside aesthetic appearance of the radome.
Page 66 Installation in 168” Radome Sea Tel 9711-56 IMA 40. Repeat caulking, closing and cleaning the vertical flanges until all of the upper panel seams are closed. 41. Remove tape from the vertical seams. 42. Apply a 3/8” layer of caulking to the under-side of the perimeter flange of radome cap.
Page 67 Sea Tel 9711-56 IMA Installation in 168” Radome 47. The upper section of the radome is now complete. 48. Place short pieces of 2”x4” boards under the perimeter of the radome top to raise it up off of the ground. 49.
Page 68: Installing The Marine Air Conditioner
Installation in 168” Radome Sea Tel 9711-56 IMA 5.3.4. Installing the Marine Air Conditioner If a marine air conditioner was purchased with your system: Set the marine air conditioner on the base pan aligning the vents in the bottom of the air conditioner to the cutouts in the basepan (refer to drawing 123496).
Page 69 Sea Tel 9711-56 IMA Installation in 168” Radome Remove the screws around perimeter of the removable panel of the crate. AZ Post & Spider C-Band Feed, Antenna Control Unit and below decks kit boxes. Upper Pedestal & reflector Pedestal Shrouds Counter-weight &...
Page 70 Installation in 168” Radome Sea Tel 9711-56 IMA 6. Cut the bands from and remove the C-band feed, Antenna Control Unit and below decks kit boxes. Move the Antenna Control Unit and below decks kit boxes to a location where they will be protected until you are ready to install the below decks equipment.
Page 71 Sea Tel 9711-56 IMA Installation in 168” Radome 14. Using an open end wrench on the underside of the pallet and a wrench or socket from the top, remove the 4 Nyloc nuts on the bolts that are up through the pallet and spider legs.
Page 72 Installation in 168” Radome Sea Tel 9711-56 IMA 24. Open C-Band feed box. 25. There is an ailgnment pin in the feed that mates into a hole in the scalar plate so that ht efeed cannot be installed incorrectly. 26. Orient and seat the C-Band feed into the scalar plate.
Page 73 Sea Tel 9711-56 IMA Installation in 168” Radome 29. Rotate the flexible waveguide and harness up over the top strut/Ku-Band feed. 30. Attach flexible waveguide section to the rigid waveguide section using the 8 screws, flat washer through the adjoined flanges.
Page 74 Installation in 168” Radome Sea Tel 9711-56 IMA 38. Remove the 4 bolts in the U- bracket that restrains the Right side (shown) of the cross-level beam. 39. Remove the 4 bolts in the U- bracket that restrains the Left side (hidden in foreground) of the cross- level beam.
Page 75 Sea Tel 9711-56 IMA Installation in 168” Radome 45. Hold the pedestal & reflector assembly above the top of the AZ Post. 46. Feed the cables down through the top of the Az post. 47. Carefully guide the cables & isolation spring down through the top of the Az post as the pedestal &...
Page 76 Installation in 168” Radome Sea Tel 9711-56 IMA 50. Align the 4 mounting holes in the lower isolation plate to the holes in the top of the AZ Post. 51. Lower the pedestal & reflector assembly to be on the top of the AZ Post, 52.
Page 77: Close The 168" Radome Assembly
Sea Tel 9711-56 IMA Installation in 168” Radome 5.3.6. Close the 168” Radome Assembly Refer to the Radome Assembly drawing for your system and the procedure below. Lift Upper section up over the dish & feed assembly and set it down onto the lower section.
Page 78 Installation in 168” Radome Sea Tel 9711-56 IMA NOTE: It is extremely important to assure that the flanges are properly aligned before the bolts are tightened and kept in alignment as the hardware is aligned. This is necessary for the inside clearance and the outside aesthetic appearance of the radome.
Page 79: Prepare The 168" Radome Ade For Lift
Sea Tel 9711-56 IMA Installation in 168” Radome 6. Remove the tape from the upper and lower panels. All tape should now be removed from the radome. The ADE Assembly is now complete, ready for web straps to be attached for lifting the ADE onto the ship.
Page 80: Installing The Ade
Installation in 168” Radome Sea Tel 9711-56 IMA 5.4. Installing The ADE WARNING: Hoisting with other than a webbed four-part sling may result in catastrophic crushing of the radome. Refer to the specifications and drawings for the fully assembled weight of your model Antenna/Radome and assure that equipment used to lift/hoist this system is rated accordingly.
Page 81: Remove Stow Straps
Sea Tel 9711-56 IMA Installation in 168” Radome Connect the TXIF coaxial cable that runs between the above decks and below decks equipment to the TX connector on the interconnect bracket inside the louvered panels of the AZ Post. 8. Connect the RXIF coaxial cable that runs between the above decks and below decks equipment to the RX connector on the interconnect bracket inside the louvered panels of the AZ Post.
Page 82 Installation in 168” Radome Sea Tel 9711-56 IMA 5.5.3.2. J1 Modem RX Connect this RXIF Output to the satellite modem RX Input using an appropriate coaxial cable. 5.5.3.3. J2 RJ - Antenna RX Connect this RXIF Input from the antenna to this port on the rear panel of the MXP using coaxial cable provided 5.5.3.4.
Page 83 Sea Tel 9711-56 IMA Installation in 168” Radome 5.5.3.13. J12 Aux 232 Auxiliary wired RS-232 connection. Wiring is: Pin 1 - GND Ground Pin 2 - Aux IN1 Modem Lock Input 1 - See modem setup chapter. Pin 3 - Aux IN2 Modem Lock Input 2 - See modem setup chapter.
Page 84: Other Bde Connections
Installation in 168” Radome Sea Tel 9711-56 IMA 5.5.3.15. J14 Aux 232 Antenna M&C Serial connections. The +12 VDC output is only intended to power a very low current consumption device, do NOT exceed 125ma MAX. Wiring is: Pin 1 Pin 2 Pin 3 Pin 4...
Page 85: Cyber Security Caution
Sea Tel 9711-56 IMA Installation in 168” Radome 5.7. Setup - Media Xchange Point™ (MXP) Now that you have installed the hardware, you will need to setup, calibrate and commission the antenna. You may also need to load/update the modem option file, which is not part of the scope of this manual, contact the airtime provider NOC for guidance.
Page 86 Installation in 168” Radome Sea Tel 9711-56 IMA This Page Intentionally Left Blank 5-32 EAR Controlled - ECCN EAR99...
Page 87: Configuring A Computer For The Mxp
Sea Tel 9711-56 IMA Configuring a Computer for the MXP Configuring a Computer for the MXP The first thing you need to do is to configure your computer so that it will display the MXP screens. Follow these instructions to accomplish that. Connect a LAN cable to the back of your computer.
Page 88 Configuring a Computer for the MXP Sea Tel 9711-56 IMA Click on “View network status and tasks”. 6. Click “Change adapter settings”. Click on “Local Area Connection.” 8. Click on “Properties”. EAR Controlled - ECCN EAR99...
Page 89 Sea Tel 9711-56 IMA Configuring a Computer for the MXP 9. Double-Click on “Internet Protocol Version 4 (IPv4)”. 10. Click on “Use the following IP address: 11. In the IP Address boxes, enter “10.1.1.102” (This is for the IP address of your computer). NOTE: You could use 101, 102, 103, etc.
Page 90 Configuring a Computer for the MXP Sea Tel 9711-56 IMA 14. Back at the Local Area Connection Properties screen, click the “OK” button. 15. Click the “Close” button. 16. Close the Control Panel. 17. Open your browser, and enter the URL: “10.1.1.100”.
Page 91 Sea Tel 9711-56 IMA Configuring a Computer for the MXP 18. At the log in screen enter the user name (Dealer, SysAdmin, or User). Contact Sea Tel Service for the password. 19. After you log in you will see the System Status screen EAR Controlled - ECCN EAR99...
Page 92: Cyber Security Caution
Configuring a Computer for the MXP Sea Tel 9711-56 IMA 6.1. Cyber Security Caution Sea Tel Antenna systems are not intended to be connected directly to the Internet. They must be connected behind a dedicated network security device such as a firewall. In addition, we highly recommended that you change default passwords.
Page 93: Setup - Ship's Gyro Compass
Sea Tel 9711-56 IMA Setup – Ship’s Gyro Compass Setup – Ship’s Gyro Compass The Ships Gyro Compass connection provides true heading (heading of the ship relative to true North) input to the system. This allows the ICU to target the antenna to a “true” Azimuth position to acquire any desired satellite. After targeting, this input keeps the antenna stabilized in Azimuth (keeps it pointed at the targeted satellite Azimuth).
Page 94 Setup – Ship’s Gyro Compass Sea Tel 9711-56 IMA No gyro mode is used when you do not have a gyro compass, the ship does turn and you will use “Sky Search” to initially acquire the satellite. The Sky Search drives the antenna to the calculated elevation angle and then drives azimuth CW 360 degrees, steps elevation up and then drives azimuth CCW 360 degrees and continues to alternately steps elevation up/down and drives azimuth alternately CW/CCW 360 degrees.
Page 95: Setup - Tracking Receiver - Vsat
Sea Tel 9711-56 IMA Setup – Tracking Receiver – VSAT Setup – Tracking Receiver – VSAT 8.1. Determining the IF Tracking Frequency (MHz) The IF Tracking frequency parameter is a value entered into the MXP MHZ Sub-Menu. The value itself may be provided by your air-time provider and the MHz value will be entered directly in this sub-menu.
Page 96 Setup – Tracking Receiver – VSAT Sea Tel 9711-56 IMA This Page Intentionally Left Blank EAR Controlled - ECCN EAR99...
Page 97: Setup - Azimuth Trim
Sea Tel 9711-56 IMA Setup – Azimuth Trim Setup – Azimuth Trim Beginning in IMA software version 1.05, calibrating the targeting of your antenna is much easier. This is accomplished improving Sky Search and changing the way that Azimuth Trim works so that the need for Home Flag Offset is eliminated.
Page 98 Setup – Azimuth Trim Sea Tel 9711-56 IMA Select the satellite that your airtime services will be provided on in the Satellite Selection dropdown. 4. Refer to the next chapter to enter blockage zones as desired. After the desired satellite has been acquired, allow the antenna to track for about 2 minutes BEFORE clicking Auto Trim.
Page 99: Setup - Blockage & Rf Radiation Hazard Zones
Sea Tel 9711-56 IMA Setup – Blockage & RF Radiation Hazard Zones Setup – Blockage & RF Radiation Hazard Zones The Blockage Zones function inhibits the antenna from transmitting within certain pre-set zones. This is typically some structure of the ship that prevents satellite signal from getting to the Sea Tel antenna when the ship is at headings that put that structure in-between the satellite and the satellite antenna, However, it can also be used as an RF Radiation Hazard zone.
Page 100: Programming Instructions
Setup – Blockage & RF Radiation Hazard Zones Sea Tel 9711-56 IMA ZONE 1 named “Fwd Deckhouse” begins (REL Start) at 334 degrees Relative and ends (REL Stop) at 026 degrees Relative. Enter REL Start value of 334.0 and REL Stop value of 26.0. In this case the mast height only causes blockage up to an elevation of 40 degrees, so we set EL to 40.0.
Page 101 Sea Tel 9711-56 IMA Setup – Blockage & RF Radiation Hazard Zones 2. Enter a readily identifiable name for the zone (ie Mast, Deck House or Stack). Moving to the right, enter the relative of the starting point of this blockage zone (the more counter-clockwise bearing).
Page 102 Setup – Blockage & RF Radiation Hazard Zones Sea Tel 9711-56 IMA This Page Intentionally Left Blank 10-4 EAR Controlled - ECCN EAR99...
Page 103: Configuring The Satellite Modem Interface
Sea Tel 9711-56 IMA Configuring The Satellite Modem Interface. Configuring The Satellite Modem Interface. The configuration setup of an integrated satellite modem to the MXP is accomplished via the Communication Interface Page (Configuration>Interfaces link on the navigational panel on the left hand side of the screen). In order to access this page, the user must be logged in as either “Dealer”...
Page 104: Reflector Setting
Configuring The Satellite Modem Interface. Sea Tel 9711-56 IMA 11.1.1. Reflector setting Use: In a dual reflector based antenna system, the “Reflector” selection defines which reflector the modem configuration applies to. Selection Type: Mutually Exclusive Radio Buttons Options: Primary or Secondary Notes: In the current Series 12 antennas this setting should always be set to PRIMARY.
Page 105: Modem I/O - Custom Settings
Sea Tel 9711-56 IMA Configuring The Satellite Modem Interface. 11.1.4. Modem I/O – Custom Settings Use: The individual Modem I/O selections allow the user to manually define the expected driver (output) and detector (input) circuit(s) as well as positive satellite ID functionality between the MXP and the satellite modem.
Page 106 Configuring The Satellite Modem Interface. Sea Tel 9711-56 IMA the 12V pull up must be set to “ON” (See Modem I/O Voltage & 12V Pull up sections below). Failure to do so may result in a false Rx Lock trigger when the applicable modem interface cable is removed for any reason.
Page 107: Quick Reference: Common Modem Lock & Mute Settings
Sea Tel 9711-56 IMA Configuring The Satellite Modem Interface. numerous predefined conditions are met. In most cases, these are conditions that ultimately determine that the system is not accurately pointed to the desired satellite. However there are some conditions where this may not be true, as is the case of the antenna being pointed at a pre-defined “Radiation Hazard Zone”, which discussed in detail within another chapter of this manual, is programmed in as a Blockage Zone, thus the name Block Output.
Page 108 Configuring The Satellite Modem Interface. Sea Tel 9711-56 IMA This Page Intentionally Left Blank 11-6 EAR Controlled - ECCN EAR99...
Page 109: Setup - Targeting
Sea Tel 9711-56 IMA Setup – Targeting Setup – Targeting Optimize the targeting of the antenna to track on or near a desired satellite (within +/-1 degree. 12.1. AUTO TRIM The Auto Trim function will automatically calculate and set the required Azimuth and Elevation trim offset parameters required to properly calibrate the antennas display to the mechanical angle of the antenna itself, while peaked ON satellite.
Page 110: Manually Optimizing Targeting
Setup – Targeting Sea Tel 9711-56 IMA Click SAVE 12.2. Manually Optimizing Targeting First, assure that all of your Ship & Satellite settings in the MXP are correct. 2. Access the Satellite Search screen Target the desired satellite by selecting it from the drop down list.
Page 111 Sea Tel 9711-56 IMA Setup – Targeting 6. Click Track ON button and allow the antenna to search, acquire and track the desired satellite. As this happens you will see “Satellite Signal Found” and “Modem Lock: LOCKED” messages displayed. Select the Position Antenna screen., turn Tracking OFF and click Save.
Page 112 Setup – Targeting Sea Tel 9711-56 IMA EXAMPLE: The antenna initially targets to an Elevation position of 38.0 degrees and an Azimuth position of 180.2. Shortly after that the Elevation drives to 30.0 degrees and Azimuth stays at 180.2 (Calculated), you find that Peak Elevation while ON your desired satellite is 31.5 degrees and Peak Azimuth is 178.0.
Page 113: Setup - Satellite Configuration
Sea Tel 9711-56 IMA Setup – Satellite Configuration Setup – Satellite Configuration The values that these parameters are set to depends on the hardware configuration required for each satellite. Configure each of the satellites that airtime services will be provided on so that any one of them can be selected, remotely or by the user onboard.
Page 114: Sky Search Pattern
Setup – Satellite Configuration Sea Tel 9711-56 IMA Increment to the right (parallel to the satellite arc), search up along the polarization angle SWEEP INCR degrees, step two Search Increments to the left, search down, etc expanding out in the search pattern until Search Limit is reached.
Page 115 Sea Tel 9711-56 IMA Setup – Satellite Configuration Access the Satellite Configuration screen. 2. Select the satellite that your airtime services will be provided on (or add a new one). Select the desired type of search pattern to use for this satellite. 4.
Page 116 Setup – Satellite Configuration Sea Tel 9711-56 IMA 6. Assure that reflector is set to “Primary”. Select Cross-Pol LNB (XPol) or Co-Pol LNB (CoPol) as is appropriate for this satellite. 8. Click the Save button. 13-4 EAR Controlled - ECCN EAR99...
Page 117: Quick Start Operation
Sea Tel 9711-56 IMA Quick Start Operation Quick Start Operation If your system has been set up correctly, and if the ship has not moved since the system was used last, the system should automatically acquire the satellite from a cold (power-up) start. Once the satellite has been acquired, the modem then should achieve lock and you should be able to use the system.
Page 118 Quick Start Operation Sea Tel 9711-56 IMA Not finding a signal greater than Threshold, the bar graph will stay red and the antenna will reach the end of the prescribed search pattern. 4. The antenna will retarget and the cycle will repeat (Search Delay timeout, conduct search pattern followed by retarget).
Page 119: If Satellite Signal Is Found But Network Lock Is Not Achieved
Sea Tel 9711-56 IMA Quick Start Operation 12. Check for blockage (this is the MOST common cause of not being able to acquire the desired satellite). 13. Verify that the correct satellite is selected. 14. Check cable connections to assure that a cable has not been disconnected.
Page 120 Quick Start Operation Sea Tel 9711-56 IMA 6. Find the Latitude, Longitude and Heading displayed values. If they are correct skip to step 11. If the Latitude & Longitude values are not correct, access the Communication Interfaces screen and enter the ships Latitude & Longitude position in the fields provided.
Page 121: T Otarget A Different Satellite
Sea Tel 9711-56 IMA Quick Start Operation 14.4. To Target a different satellite To target a different satellite go to the Satellite Search Auto screen and select the desired satellite from the drop down list. 2. When you make that selection you will see the temporary message: Acquiring Satellite Signal…Please Wait Shortly after that you will see the...
Page 122 Quick Start Operation Sea Tel 9711-56 IMA This Page Intentionally Left Blank 14-6 EAR Controlled - ECCN EAR99...
Page 123: Optimizing Cross-Pol Isolation
Sea Tel 9711-56 IMA Optimizing Cross-Pol Isolation Optimizing Cross-Pol Isolation Now that all of the other setup items have been checked and changed as necessary, it is time to contact the NOC to arrange for cross-pol isolation testing and whatever other commissioning the NOC asks for. Read this procedure thoroughly before you are asked to begin.
Page 124: Cyber Security Caution
Optimizing Cross-Pol Isolation Sea Tel 9711-56 IMA 6. Access the Reflector Configuration screen. Change the “Linear Offset” value by the amount of difference recorded in step 4. Examples: Skew was 0.0, you increased it to 2.5 to optimize TX polarization. You set Skew back to zero and go to the Reflector Configuration screen where you find Linear Offset to be 0.0, so you increase Linear Offset to 2.5 degrees and click Save.
Page 125: Installation Troubleshooting
Sea Tel 9711-56 IMA Installation Troubleshooting Installation Troubleshooting This section describes the theory of operation to aid in troubleshooting and adjustments of the antenna system. Also refer to the Troubleshooting section of your ACU manual for additional troubleshooting details. WARNING: Electrical Hazard – Dangerous AC Voltages exist in the Breaker Box and the Antenna Pedestal Power Supply.
Page 126: 1:1 Synchro
Installation Troubleshooting Sea Tel 9711-56 IMA If the Ship - Heading display is different from the actual Gyro heading, access the Heading entry menu and key in the correct heading value (refer to the operation Ship menu section). Note the reading. After the ship has turned more than one degree, compare the new gyro heading with the reading on the display, if it has moved in the opposite direction then reverse connections A and B.
Page 127 Sea Tel 9711-56 IMA Installation Troubleshooting The Ships Heading display does not change when the ship changes direction. Using a multimeter read between R1 and R2. It should read 115 VAC. If it does not then a fuse is blown at the gyro repeater or there is an open between the repeater and the ACU. Read between S1 and S2, S2 and S3 and finally S3 and S1.
Page 128 Installation Troubleshooting Sea Tel 9711-56 IMA This Page Intentionally Left Blank 16-4 EAR Controlled - ECCN EAR99...
Page 129: Maintenance
Scheduled Inspections section of this manual may be accomplished by technician/an engineer. Maintenance of the ODE should only be performed by technicians/engineers who are authorized by Cobham SATCOM. Only authorized Partners who have received factory training on this equipment will be able to file a claim for warranty reimbursement.
Page 130: Torque And Loctite Specifications
Maintenance Sea Tel 9711-56 IMA 17.2. Torque and Loctite Specifications WARNING: Assure that all nut and bolt assemblies are tightened according to the tightening torque values listed below: SAE Bolt Size Inch Pounds Metric Bolt Size Kg-cm 1/4-20 75.3 5/l6-18 3/8-16 1/2-13 NOTE: All nuts and bolts should be assembled using the appropriate Loctite thread-locker...
Page 131 Sea Tel 9711-56 IMA Maintenance 17.3.1.1. Identifying the part number of your feed Waveguide Rotary Joint - Note the difference in the designs of the waveguide rotary joint (inside the red ellipse) . PN: 134869-1 PN:: 62-147931 Linear/Circular Markings - Locate the Linear/Circular selections marked in the body of the OMT (general location inside the green ellipse above and in the picture below).
Page 132 Maintenance Sea Tel 9711-56 IMA 17.3.1.2. Setting Polarization Drive Log into the IMA GUI and select the Reflector Configuration page. 17.3.1.2.1. Feed PN: 134869-1 Drive of the (older) 134869-1 Linear/Circular Feed Assembly must be set to CCW/Rev. 17.3.1.2.2. Feed PN: 62-147931 Drive of the (newer) 62-147931 Linear/Circular Feed Assembly must be set to CW/Fwd.
Page 133: Installing The Linear/Circular Selectable Feed Assembly
Sea Tel 9711-56 IMA Maintenance 17.3.2. Installing the Linear/Circular Selectable Feed Assembly Refer to the procedure below to install the Linear/Circular Selectable feed assembly on the 2.4.m meter offset reflector. Assure that the MXP is set to Horizontal TX Polarity. 2.
Page 134 Maintenance Sea Tel 9711-56 IMA 11. Assure that the feed assembly is at its calibration alignment Linear Mode position (pin aligned with the “Linear” notch. 12. Verify that the feed is aligned at its CW position (CW mark aligned with the scribed mark on the base of the feed assembly).
Page 135 Sea Tel 9711-56 IMA Maintenance 14. Apply Loctite 242 to, install and tighten the eight screws (see red arrows) through the front of the scalar plate and into the end of the drop-in feed assembly. 15. Route the BLUE leg of the harness from the lower interconnect PCB to the right strut, up to the top strut and...
Page 136: Installing The Ku-Band Co-Pol/Cross-Pol Feed Assembly
Maintenance Sea Tel 9711-56 IMA 17.3.3. Installing the Ku-Band Co-Pol/Cross-Pol Feed Assembly Refer to the procedure below to install the Ku-Band Co-Pol/Cross-Pol feed assembly on the 2.m meter offset reflector. Assure that the DAC-2202 System Type does NOT include 8. 2.
Page 137 Sea Tel 9711-56 IMA Maintenance 10. Remove the drop-in feed assembly that is being replaced. 11. Your scalar plate remains attached to the feed struts as shown. Top strut should be #1, right side #2 and left side #3. 12. Insert the Ku-Band drop-in feed assembly with the alignment aligned to the center of strut #2 (right strut...
Page 138 Maintenance Sea Tel 9711-56 IMA 13. Apply Loctite 242 to, install and tighten the eight screws (see red arrows) through the front of the scalar plate and into the end of the drop-in feed assembly. The LNBs and diplexer should be horizontal.
Page 139 Sea Tel 9711-56 IMA Maintenance 17. Leave a gracious service loop in the yellow receive coax and connect it to the Co-Pol LNB. This loop is required to allow the feed to rotate through its full 270 degree (+/- 135) range of rotation. 18.
Page 140: Balancing The Antenna
Maintenance Sea Tel 9711-56 IMA 17.4. Balancing the Antenna The antenna and equipment frame are balanced at the factory however, after disassembly for shipping or maintenance, balance adjustment may be necessary. The elevation and cross-level motors have a brake mechanism built into them, therefore, power must be ON to release the brakes and DishScan® and antenna drive must be OFF to balance the antenna.
Page 141: Fine Balance And Monitoring Motor Drive Torque
Sea Tel 9711-56 IMA Maintenance 17.4.1. Fine Balance and Monitoring Motor Drive Torque The GRAPHS DISPTC graph chart provides a means for monitoring torque commands required for each motor for diagnostic purposes and verifying antenna balance. By observing each trace, the required drive of the antenna via the motor driver PCB may be established.
Page 142 Maintenance Sea Tel 9711-56 IMA Example: The antenna pictured in the screen capture below is imbalanced so that it is “Front, or Bottom, Heavy”. The LV trace is plotting above the red line, indicating that CW drive is required to maintain the current elevation position. •...
Page 143: Stowing The Antenna
Sea Tel 9711-56 IMA Stowing the Antenna Stowing the Antenna This antenna must be properly stowed if the ship will be underway while AC power to the Above Decks Equipment (ADE) is de-energized. Failure to do so may void your warranty. CAUTION: There are two stow restraints that MUST be installed on this antenna pedestal if the ship will be underway while the Above Decks Equipment is de-energized.
Page 144 Stowing the Antenna Sea Tel 9711-56 IMA Point the antenna to Zenith, (90 degree elevation angle), straight up. Install one (1) ½-13 x 2-inch bolt into the inside of each elevation beam as shown in Figure 1. Hook one end hook of the nylon strap to bolt in elevation beam as shown in Figure 2.
Page 145 Sea Tel 9711-56 IMA Stowing the Antenna Use the ratchet of the strap to tighten nylon straps. As the straps are tightened, observe the vertical isolation canister assembly as shown in Figure 4. Tighten straps until the canister has been pulled down approx.
Page 146 Stowing the Antenna Sea Tel 9711-56 IMA This Page Intentionally Left Blank 18-4 EAR Controlled - ECCN EAR99...
Page 147: Ima Technical Specifications
Sea Tel 9711-56 IMA 9711-56 IMA Technical Specifications 9711-56 IMA Technical Specifications The technical specifications for your system are listed below: 19.1. Above Decks Equipment System Weight (ADE) Weight 1180 Lbs w/ 144" Radome, 1610 Lbs w/ 168" Radome Stabilized Antenna Pedestal Assembly Type Three-axis (Level, Cross Level and Azimuth)
Page 148 9711-56 IMA Technical Specifications Sea Tel 9711-56 IMA Mounting Height Sea Tel recommends you do not exceed tangential accelerations of 0.5G (See below chart) Antenna Reflector (primary) Type Honeycomb Fiberglass Parabola Diameter 2.4 Meter Modified Offset TX Gain 41.7 dBi at 6.18 GHz 48.45 dBi at 14.25 GHz RX Gain 38.5 dBi at 3.95 GHz...
Page 149 Sea Tel 9711-56 IMA 9711-56 IMA Technical Specifications C-band Feed Type Prime Focus Circular/linear selectable Cross Pol Isolation > 120 dB Co-Pol Isolation Port to Port Isolation > 35 dB typical ( 30dB within 1dB contour) Polarization Linear w/motorized skew adjustment Polarization Control 24 volt DC motor with pot feedback Polarization Range of Motion...
Page 150 9711-56 IMA Technical Specifications Sea Tel 9711-56 IMA SMW Quad LNB 136128-2 Band 1 Voltage Required 13VDC Input RF Frequency 10.95-11.70 GHz Local Oscillator Frequency 10.00 GHz Output IF Frequency 950 to 1700 MHz Band 2 Voltage Required 13VDC + 22 KHz Tone Input RF Frequency 11.70-12.25 GHz Local Oscillator Frequency...
Page 151 Sea Tel 9711-56 IMA 9711-56 IMA Technical Specifications GPS (On Board) Waterproof IPX7 Operating Temperature -30°C to +60°C Storage Temperature -40°C to +60°C Altitude -304m to 18,000m` Vibration IEC 68-2-64 Shock 50G Peak, 11ms Connector RJ11 Input Voltage 4.75VDC 5.0VDC 5.25VDC NMEA output messages GGA, GLL...
Page 152 9711-56 IMA Technical Specifications Sea Tel 9711-56 IMA Motor Driver Enclosure Connectors Drive DA-15P Home DE-9S DA-15S DA-15S DA-15S Status LEDs CL Drive EL Drive Az Drive MDE Status ADE-BDE Interface Connections Dual Channel Rotary Joint SMA (F) x 2 Power Requirements 85-264 VAC, 47-63Hz, single phase, Pedestal=450 Watts (brake release, pedestal drive and BUC drive) PLUS RF...
Page 153 Sea Tel 9711-56 IMA 9711-56 IMA Technical Specifications Radome Assembly (168 inch) Type Frequency Tuned Material Composite foam/laminate Size Diameter 426.72cm (168 inch) Height 420.88cm (165.7 inch) Hatch Size 45.72cm x 86.36cm (18" high x 34" wide) Side Door 45.72cm x 91.44cm (18” wide x 36” high) Number of panels Twenty-four panels (6 upper &...
Page 154: Below Decks Equipment
9711-56 IMA Technical Specifications Sea Tel 9711-56 IMA 19.2. Below Decks Equipment Media Xchange Point (MXP) Standard 19 Inch Rack mount One Unit High Physical Dimensions 17 X 17 X 1.75 (Inches)/ 43.18 x 43.18 x 4.45 (cm) Input Voltage 85-264 VAC, 47-63Hz, single phase, 110 Watts Weight 6.6lbs/ 3.0 kgs...
Page 155 Sea Tel 9711-56 IMA 9711-56 IMA Technical Specifications Auxiliary Interface Plug-in Terminal Strip Connections Pin 1 - GND Ground Pin 2 - Aux IN1 Modem Lock Input 1 Pin 3 - Aux IN2 Modem Lock Input 2 Pin 4 - GND Ground Pin 5 - SW1 Modem Mute Output 1...
Page 156: Regulatory Compliance
9711-56 IMA Technical Specifications Sea Tel 9711-56 IMA Power Requirements (MXP) 85-264 VAC, 47-63Hz, single phase, 110 Watts 19.3. Regulatory Compliance Survival Shock and Vibration IEC-60945, MIL-STD-167 Operational Shock and Vibration Operational: IEC-60945, Survival: MIL STD-167 EMI/EMC Compliance Ku-Band ETSI EN 301 843-1 V1.4.1 (2004-06) ETSI EN 301 489-1 V1.4.1 (2002-08) ETSI EN 300 339 (1998-03) IEC EN 60945:1997...
Page 157: Multi-Conductor Cables (Customer Furnished)
Sea Tel 9711-56 IMA 9711-56 IMA Technical Specifications 19.4.3. Multi-conductor Cables (Customer Furnished) Due to the voltage losses across the multi-conductor cables, Sea Tel recommends the following wire gauge for the AC & DC multi-conductor cables used in our standard pedestal installations: Run Length Conductor Size up to 50 ft...
Page 158 9711-56 IMA Technical Specifications Sea Tel 9711-56 IMA This Page Intentionally Left Blank 19-12 EAR Controlled - ECCN EAR99...
Page 159: Drawings
Sea Tel 9711-56 IMA Drawings Drawings The drawings listed below are provided as apart of this manual for use as a diagnostic reference. Spare Parts kits listings are provided as part number reference for replaceable parts and common assemblies. 20.1. 9711-56 IMA Specific Drawings Drawing Title...
Page 160 Drawings Sea Tel 9711-56 IMA This Page Intentionally Left Blank 20-2 EAR Controlled - ECCN EAR99...
Page 161 BOMS for C & Ku feeds updates to manuals Page 48 of 73 BOM Explosion Report Item Number: 40-300020 Description: Sea Tel, 9711-56 IMA, 200W/100W, AC RDY, 144 IN Item Revision: A.03 ECO-00025945 Date as of: 04/16/2018 07:01:30 AM PDT Find Num Qty Inventory Unit (LN6) Number Description / Title...
Page 162 BOMS for C & Ku feeds updates to manuals Page 47 of 73 BOM Explosion Report Item Number: 40-300275 Description: Sea Tel, 9711-56, 100W/200W SW, AC Item Revision: A.11 ECO-00025945 Date as of: 04/16/2018 07:01:42 AM PDT Find Num Qty Inventory Unit (LN6) Number Description / Title BOM Notes...
Page 163 BOMS for C & Ku feeds updates to manuals Page 49 of 73 BOM Explosion Report Item Number: 40-300290 Description: SEA TEL, 9711-56 IMA, 100/200 SW, 168 IN Item Revision: A.13 ECO-00026180 Date as of: 04/16/2018 07:01:14 AM PDT Find Num Qty Inventory Unit (LN6) Number Description / Title BOM Notes...
Page 164 BOMS for C & Ku feeds updates to manuals Page 53 of 73 BOM Explosion Report Item Number: 40-300296 Description: SEA TEL, 9711-56 IMA S/W, 200W/50W, AC Item Revision: A.12 ECO-00026847 Date as of: 04/16/2018 07:00:29 AM PDT Find Num Qty Inventory Unit (LN6) Number Description / Title BOM Notes...
Page 165 BOMS for C & Ku feeds updates to manuals Page 51 of 73 BOM Explosion Report Item Number: 40-300323 Description: SEA TEL, 9711-56 IMA SW, CFE-200W/100W, AC, WHT Item Revision: A.04 ECO-00025945 Date as of: 04/16/2018 07:00:52 AM PDT Find Num Qty Inventory Unit (LN6) Number Description / Title BOM Notes...
Page 166 Page 11 of 11 BOM Explosion Report Item Number: 40-300324 Description: SEA TEL, 9711-56 IMA SW, CFE-200W/100W, AC-RDY,WHT Item Revision: A.06 ECO-00025945 Date as of: 04/11/2018 09:52:00 AM PDT Find Num Qty Inventory Unit (LN6) Number Description / Title BOM Notes REF pcs 97-300265 SeaTel 9711-56IMA...
Page 167 BOMS for C & Ku feeds updates to manuals Page 52 of 73 BOM Explosion Report Item Number: 40-300325 Description: SEA TEL, 9711-56 IMA SW, 200W/100W, AC-RDY,WHT Item Revision: A.05 ECO-00025945 Date as of: 04/16/2018 07:00:42 AM PDT Find Num Qty Inventory Unit (LN6) Number Description / Title BOM Notes...
Page 168 K.D.H. X.XX = .020 UNLESS OTHERWISE SPECIFIED X.XXX = .005 DIMENSIONS ARE IN INCHES. WEIGHT: DRAWN DATE: Sea Tel, Inc., dba Cobham SATCOM, Concord 4/2/18 ANGLES: Tel. 925-798-7979 Fax. 925-798-7986 MATERIAL: APPROVED BY: TITLE: INSPECTION DIMENSIONS NOTED BY X.X SHALL HAVE FEATURE SIZE SeaTel 9711-56IMA DIMENSIONS AND ASSOCIATED GD&T TOLERANCES INSPECTED...
Page 169 9711-56 IMA BOMs Page 7 of 11 BOM Explosion Report Item Number: DL-157896-A Description: SYSTEM BLOCK LIST, 9711-56 SW IBUC Item Revision: DCO-00025405 Date as of: 04/19/2018 07:21:57 AM PDT Find Num Qty Inventory Unit (LN6) Number Description / Title BOM Notes 92-157896-A SYSTEM BLOCK DIAGRAM, 9711-56 SW IBUC...
Page 170 9711-56 IMA BOMs Page 8 of 11 BOM Explosion Report Item Number: DL-157896-A Description: SYSTEM BLOCK LIST, 9711-56 SW IBUC Item Revision: DCO-00025405 Date as of: 04/19/2018 07:21:57 AM PDT Find Num Qty Inventory Unit (LN6) Number Description / Title BOM Notes 129526-36 HARNESS ASSY, PCU TO MOTOR DRIVER, XX09...
Page 171 9711-56 IMA BOMs Page 9 of 11 BOM Explosion Report Item Number: DL-157896-A Description: SYSTEM BLOCK LIST, 9711-56 SW IBUC Item Revision: DCO-00025405 Date as of: 04/19/2018 07:21:57 AM PDT Find Num Qty Inventory Unit (LN6) Number Description / Title BOM Notes 130521-108YEL B CABLE ASSY, SMA(M) 90 TO N(M) 90, 108...
Page 172 9711-56 IMA BOMs Page 10 of 11 BOM Explosion Report Item Number: DL-157896-A Description: SYSTEM BLOCK LIST, 9711-56 SW IBUC Item Revision: DCO-00025405 Date as of: 04/19/2018 07:21:57 AM PDT Find Num Qty Inventory Unit (LN6) Number Description / Title BOM Notes ...ECO-00008547 ...LONG 62-146414 B.09...
Page 173 9711-56 IMA BOMs Page 11 of 11 BOM Explosion Report Item Number: DL-157896-A Description: SYSTEM BLOCK LIST, 9711-56 SW IBUC Item Revision: DCO-00025405 Date as of: 04/19/2018 07:21:57 AM PDT Find Num Inventory Unit (LN6) Number Description / Title BOM Notes ...MCO-00025523 136490 POWER CORD, 36", IEC TO 220VAC...
Page 177 9711-56 IMA BOMs Page 6 of 11 BOM Explosion Report Item Number: 62-158183 Description: GENERAL ASSY, 9711-56 SW 100/200 IBUCG Item Revision: A.07 ECO-00026847 Date as of: 04/19/2018 07:22:39 AM PDT Find Num Qty Inventory Unit (LN6) Number Description / Title BOM Notes REF pcs 97-158183...
Page 178 X.X = .050 LIND X.XX = .020 UNLESS OTHERWISE SPECIFIED X.XXX = .005 DIMENSIONS ARE IN INCHES. WEIGHT: DRAWN DATE: Sea Tel, Inc., dba Cobham SATCOM, Concord 672.1 LBS 04/20/2018 ANGLES: Tel. 925-798-7979 Fax. 925-798-7986 MATERIAL: APPROVED BY: TITLE: INSPECTION DIMENSIONS NOTED BY X.X SHALL HAVE FEATURE SIZE ASSY DWG, GA, DIMENSIONS AND ASSOCIATED GD&T TOLERANCES INSPECTED...
Page 179 9711IMA-69 BOM Page 4 of 13 BOM Explosion Report Item Number: 139990-2 Description: MOUNTING ASSY, ICU WITH QOR SWITCH Item Revision: B.01 ECO-00017953 Date as of: 04/12/2018 11:13:59 AM PDT Find Num Qty Inventory Unit (LN6) Number Description / Title BOM Notes 139972-1 PLATE, 97IMA, ICU MOUNT...
Page 180 9711IMA-69 BOM Page 5 of 13 BOM Explosion Report Item Number: 139990-2 Description: MOUNTING ASSY, ICU WITH QOR SWITCH Item Revision: B.01 ECO-00017953 Date as of: 04/12/2018 11:13:59 AM PDT Find Num Inventory Unit (LN6) Number Description / Title BOM Notes 114583-029 MCO-00012113 NUT, HEX, 1/4-20, SS.
Page 181 REVISION HISTORY REV ECO# DATE DESCRIPTION 13212 2-19-14 RELEASED TO PRODUCTION, WAS X3 K.D.H. 13888 4-24-14 -2, ITEM 30 WAS 121655-16 K.D.H. 7-2-14 ASS -3; ADD DASH TABLE K.D.H. 9 1/2" 5 1/2" 19 1/2" NOTES: UNLESS OTHERWISE SPECIFIED 1. MANUFACTURE PER SEATEL STANDARD 122298. 2 USE ONLY LOCTITE 242 ON THIS MOUNTING HARDWARE.
Page 182 SIZE SCALE: DRAWING NUMBER 1:12 139990 2 OF 2 SHEET NUMBER...
Page 183 9711-56 IMA BOMs Page 3 of 11 BOM Explosion Report Item Number: 62-156921 Description: IBUC MOUNTING ASSY, TERRASAT, 9711-56SW Item Revision: A.03 ECO-00025725 Date as of: 04/19/2018 07:23:13 AM PDT Find Num Qty Inventory Unit (LN6) Number Description / Title BOM Notes REF pcs 97-156921...
Page 184 K.D.H. K.D.H. UNLESS OTHERWISE SPECIFIED X.XX = .020 DIMENSIONS ARE IN INCHES. X.XXX = .005 WEIGHT: DRAWN DATE: Sea Tel, Inc., dba Cobham SATCOM, Concord ANGLES: 51.890 LBS. 8-16-17 Tel. 925-798-7979 Fax. 925-798-7986 APPROVED BY: TITLE: MATERIAL: INSPECTION DIMENSIONS NOTED BY X.X SHALL HAVE FEATURE SIZE IBUC MOUNTING ASSY, DIMENSIONS AND ASSOCIATED GD&T TOLERANCES INSPECTED...
Page 185 Ku-BAND MOUNTING SIZE SCALE: DRAWING NUMBER 1:12 97-156921 2 OF 2 SHEET NUMBER DOCUMENT N0. 99-149137-A...
Page 186 Page 10 of 11 BOM Explosion Report Item Number: 62-151315 Description: ANTENNA ASSY, 2.4M OFFSET, 9711 IMA SW Item Revision: MCO-00025305 Date as of: 04/11/2018 09:52:18 AM PDT Find Num Qty Inventory Unit (LN6) Number Description / Title BOM Notes 97-140856-A A ANTENNA ASSY, 2.4M OFFSET, 9711 IMA-SW DCO-00018272...
Page 187 REVISION HISTORY ECO# DATE DESCRIPTION 00010031 01-08-15 ITEM 1 WAS P/N: 116803, ITEM 2 WAS P/N: 120293, ITEM 3 WAS P/N: 120294, ITEM 12 WAS P/N: 140860-1. 00014485 11-05-15 ITEM 2 WAS P/N 139330-2 LIND NOTES: UNLESS OTHERWISE SPECIFIED 1. MANUFACTURE PER SEATEL STANDARD 122298. 2.
Page 188 DETAIL B SCALE 1 : 1 DETAIL E SCALE 1 : 3 DETAIL C SCALE 1 : 1 DETAIL D SCALE 1 : 2 SIZE SCALE: DRAWING NUMBER 1:14 97-140856 2 OF 2 SHEET NUMBER...
Page 189 Page 9 of 11 BOM Explosion Report Item Number: 62-147931 Description: Feed Assy, C-Band Circ-Lin TX-RX Item Revision: A.06 ECO-00024924 Date as of: 04/11/2018 09:52:51 AM PDT Find Num Qty Inventory Unit (LN6) Number Description / Title BOM Notes 97-147931-B B ASSY DWG, C-BAND FEED, CIRC-LIN TX-RX DCO-00023275 62-141961...
Page 190 REVISION HISTORY REV ECO# DATE DESCRIPTION 24924 10/24/17 UPDATE WITH Cost Reduced C-Band Filter ADJUST TRIM WEIGHTS 10X 60 67 NOTES: UNLESS OTHERWISE SPECIFIED 1. MANUFACTURE PER SEATEL STANDARD 122298. 2. THIS DRAWING GOVERNS THE ASSEMBLY OF ALL VARIANTS OF THE PART NUMBER 62-141961, REGARDLESS OF ASSEMBLY OR DRAWING REVISION.
Page 191 DRAWING NUMBER SIZE SCALE: 97-147931 2 OF 2 SHEET NUMBER DOCUMENT N0. 99-149137-A...
Page 192 Page 7 of 11 BOM Explosion Report Item Number: 140859-1 Description: TOP STRUT ASSY, KU NET Item Revision: E.01 ECO-00023778 Date as of: 04/11/2018 09:53:05 AM PDT Find Num Inventory Unit (LN6) Number Description / Title BOM Notes REF pcs 97-140859 TOP STRUT ASSY, KU NET ECO-00022918...
Page 193 Page 8 of 11 BOM Explosion Report Item Number: 140859-1 Description: TOP STRUT ASSY, KU NET Item Revision: E.01 ECO-00023778 Date as of: 04/11/2018 09:53:05 AM PDT Find Num Qty Inventory Unit (LN6) Number Description / Title BOM Notes 115998-1 J.06 STRAP, RIGID WAVEGUIDE, WR-137 ECO-00008542...
Page 194 REVISION HISTORY ECO# DESCRIPTION DATE 5-26-17 THIS DOCUMENT REPLACES 97-144312-C ON ECO-00022027, SEE 97-144312-C FOR REVISION HISTORY K.D.H. NOTES: UNLESS OTHERWISE SPECIFIED 1. MANUFACTURE PER SEATEL STANDARD 122298. 2. THIS DRAWING GOVERNS THE ASSEMBLY OF ALL VARIANTS OF THE PART NUMBER 140859, REGARDLESS OF ASSEMBLY OR DRAWING REVISION.
Page 195 NOTE ORIENTATION NOTE ORIENTATION OF CHAMFERED OF CHAMFERED TEETH. TEETH. DETAIL D SCALE 1 : 1 DETAIL E SCALE 2 : 1 PLACE ITEM 6 FLAT ON THE BAR OF ITEM 1 FIRST AND HAND TIGHTEN HARDWARE. MAKE SURE MOUNTING HOLES ARE EQ.
Page 196 REFER TO ITEM 2 BOM. CUT TWO LINES IN THE PAPER OF ITEM 26, APPROX. 1/4" FROM THE EDGE. REMOVE THE CENTER PIECE AND ATTACH AS SHOWN. SIZE SCALE: DRAWING NUMBER 97-140859 3 OF 3 SHEET NUMBER DOCUMENT N0. 99-149137-A...
Page 197 9711-64 IMA Page 4 of 8 BOM Explosion Report Item Number: 62-156574 Description: FEED ASSY, KU-NET, LOW POWER Item Revision: A.04 ECO-00026390 Date as of: 05/10/2018 10:17:29 AM PDT Find Num Inventory Unit (LN6) Number Description / Title BOM Notes REF pcs 97-156574 FEED ASSY, KU-NET, LOW POWER...
Page 198 9711-64 IMA Page 5 of 8 BOM Explosion Report Item Number: 62-156574 Description: FEED ASSY, KU-NET, LOW POWER Item Revision: A.04 ECO-00026390 Date as of: 05/10/2018 10:17:29 AM PDT Find Num Inventory Unit (LN6) Number Description / Title BOM Notes 114593-125 MCO-00012113 SCREW, SOCKET HD, 6-32 x 9/16, SS.
Page 199 ASSEMBLY INSTRUCTION FOR INTERNAL USE ONLY INIT. FEED ASSY, KU-NET, LOW PRINTED COPIES OF THIS DOCUMENT Sea Tel, Inc., dba Cobham SATCOM, Concord POWER ARE UNCONTROLLED AND ARE NOT TO Tel: 925-798-7979 Fax: 925-798-7986 BE USED FOR ASSEMBLY PURPOSES, DRAWN BY INSTRUCTION NUMBER: REV.
Page 200 STEP 1 INSTALL HOME FLAG & ADJUST GAP. INSTALL OMT ADAPTOR BLOCK. STEP 2 INSTALL OMT. NOTE ORIENTATION. INSTRUCTION NUMBER: REV: 97-156574 SHEET 2 OF 4...
Page 201 STEP 3 INSTALL ROTARY JOINT. STEP 4 INSTALL POLANG MOTOR ASSY. INSTRUCTION NUMBER: REV: 97-156574 SHEET 3 OF 4...
Page 202 STEP 5 INSTALL WAVE GUIDE 180 DEGREE “E” & “H” BEND PIECES. INSTALL LNBS USING VENDOR SUPPLIED O- RING SEALS. INSTALL WEIGHT BRACKET. INSTRUCTION NUMBER: REV: 97-156574 SHEET 4 OF 4...
Page 203 9711-56 IMA BOMs Page 1 of 11 BOM Explosion Report Item Number: 62-156922 Description: WAVEGUIDE RUN, 9711-56 IMA-SW Item Revision: A.02 ECO-00026077 Date as of: 04/19/2018 07:23:36 AM PDT Find Num Inventory Unit (LN6) Number Description / Title BOM Notes REF pcs 97-156922 WAVEGUIDE RUN, 9711-56 IMA-SW...
Page 204 9711-56 IMA BOMs Page 2 of 11 BOM Explosion Report Item Number: 62-156922 Description: WAVEGUIDE RUN, 9711-56 IMA-SW Item Revision: A.02 ECO-00026077 Date as of: 04/19/2018 07:23:36 AM PDT Find Num Inventory Unit (LN6) Number Description / Title BOM Notes 114580-031 MCO-00012114 WASHER, FLAT, 3/8, SS.
Page 205 K.D.H. UNLESS OTHERWISE SPECIFIED X.XX = .020 DIMENSIONS ARE IN INCHES. X.XXX = .005 WEIGHT: DRAWN DATE: Sea Tel, Inc., dba Cobham SATCOM, Concord ANGLES: 1/30/18 Tel. 925-798-7979 Fax. 925-798-7986 APPROVED BY: TITLE: MATERIAL: INSPECTION DIMENSIONS NOTED BY X.X SHALL HAVE FEATURE SIZE WAVEGUIDE RUN, DIMENSIONS AND ASSOCIATED GD&T TOLERANCES INSPECTED...
Page 206 68 69 DETAIL D SCALE 1 : 2 DETAIL E SCALE 1 : 2 SIZE SCALE: DRAWING NUMBER 97-156922 2X DETAIL F SCALE 1 : 2 2 OF 2 SHEET NUMBER DOCUMENT N0. 99-149137-A...
Page 207 Page 6 of 11 BOM Explosion Report Item Number: 88-207377-HAAA Description: RADOME ASSY, 144 IN, C/KU, SIDE ACCESS, WHITE Item Revision: A.01 ECO-00024777 Date as of: 04/11/2018 09:53:24 AM PDT Find Num Qty Inventory Unit (LN6) Number Description / Title 97-111365-U ASSY DWG, RADOME, 144 IN DCO-00009898...
Page 208 REVISION HISTORY REV ECO# DATE DESCRIPTION 10-17-07 ADDED DASH 27 UPDATE BOM PER RED LINES. UPDATE VIEW TO SHOW DETAIL ASSY. UPDATE DASH TABLE AND RE-NUMBERS FOR NOTES 7046 02-10-10 PER RED LINES. UPDATE UNITS FOR NOTE 5. 09-02-10 K.D.H. ADD -28;...
Page 209 INDIVIDUAL HARDWARE KITS ARE PART OF "HARDWARE KIT, MULTI-PANEL RADOME, 144 IN" USE OF: "HARDWARE KIT, RADOME PANEL TO BASE FRAME, 75 IN" USE OF "HARDWARE KIT, RADOME CAP, 126, 144 IN" 52X* DETAIL A RADOME PANEL, UPPER M6 FENDER WASHER SCALE 1 : 8 M6 FENDER WASHER M6 X 25 MM SCREWS...
Page 210 SINGLE LEVEL MFG BILL OF MATERIAL FIND QTY PART NO REV DESCRIPTION REFERENCE DESIGNATOR 1 EA 123724-1 RADOME BASE FRAME ASSY, 75 IN, STEEL 1 EA 123726-31 G RADOME BASE PAN, 75 IN W/INTERNAL A/C 1 EA 123728-1 RADOME PAN ACCESS ASSY, WHITE 1 EA 122508 G A/C INSTALL ASSY, INTERNAL, 75"...
Page 211 REVISION HISTORY REV ECO# DATE DESCRIPTION 61 62 7046 02-04-10 REMOVE -2 & -6 FR DASH TABLE. UPDATE HARDWARE KIT. ADD NOTE 2, 3 & 4. ADD BASE CROSS VIEW AND SHT 2. 8242 01-05-11 BALLOONS 80-83 WERE 71-74. ADD TRIANGLES TO NOTES 2 & 6. 9174 07-13-12 UPDATE NOTE 3 &...
Page 212 80 82 82 81 INTERNAL AC (SPIDER MOUNTING BASE) SIZE SCALE: DRAWING NUMBER 123723 2 OF 2 SHEET NUMBER...
Page 215 SINGLE LEVEL MFG BILL OF MATERIAL FIND QTY PART NO REV DESCRIPTION REFERENCE DESIGNATOR 1 EA 116941 STREET ELBOW, 1/2 IN 1 EA 116938 FLEX HOSE, 1/2 IN 1 EA 124903-1 B3 STRAIN RELIEF ASSY (CABLE GLAND) 1 EA 121008-72 D2 CABLE ASSY, AC INPUT, 72 IN.
Page 216 REVISION HISTORY REV ECO# DATE DESCRIPTION REMOVED ITEMS 5, 50, 51,52 & NOTE 4; ADDED ITEMS 6, 60 THRU 63; NOTE 3 WAS "BAG AND ATTACH POWER CORD 6475 12-4-08 K.D.H. AND STRAIN RELIEF"; ADD EXPLODE VIEW. REDRAWN IN SW WITH UPDATED BASE FRAME; REORDERED ITEM 60 TO 50, 61 TO 51, 62 TO 55 AND 63 TO 56; 12-13-11 ADDED ITEM 5, 52, 57 &...
Page 217 DETAIL C SCALE 1 : 3 DETAIL D SCALE 1 : 8 SIZE SCALE: DRAWING NUMBER 1:16 122508 2 OF 2 SHEET NUMBER...
Page 218 REVISION HISTORY REV ECO# DATE DESCRIPTION 4609 10-05-04 RELEASED TO PRODUCTION 4858 5-5-05 ADD REFERENCE 121113 3-2-06 CHANGED TO TABLE FORMAT V.S. CONTROL PANEL 1-9-07 CREATED CAD OUTLINE DRAWING 17.85 04/18/14 ADDED INRUSH/STARTUP CURRENT FIELD TO DASH TABLE. 12.80 AIR FLOW 2.53 31.88 33.00...
Page 219 Page 4 of 11 BOM Explosion Report Item Number: 111849-9 Description: RADOME ASSY, 168 IN, WHITE/FOAM/SIDE Item Revision: W.01 MCO-00021338 Date as of: 04/11/2018 09:54:00 AM PDT Find Num Qty Inventory Unit (LN6) Number Description / Title BOM Notes 97-111849-W W ASSY DWG, RADOME, 168 IN DCO-00009897 115915-9...
Page 220 REVISION HISTORY ECO# DESCRIPTION DATE SEE DETAIL D 6417 10-27-08 THE "MAX. WINLOAD" WAS 100MPH. ADDED -12 TO DASH TABLE. 7046 02-09-10 UPDATE "HARDWARE KIT TABLE" AND RELATIVE VIEWS PER RED LINES. ADD NOTE3. 8345 03-24-11 ITEM 1 WAS 112118-3, REMOVE ITEMS 2-6 IN DASH 12 ONLY. COLOR IN DASH 12 WAS GREY. 9799 1-2-13 ADD SHIPPING CRATE, ITEM 42;...
Page 221 RISER LOWER PANEL 51 52 BASE FRAME ASS'Y BASE PAN FAB DETAIL B DETAIL A P/N: 131731-2 KIT, RADOME PANEL TO BASE FRAME, 110 IN RISER P/N: 131730-4 KIT, RADOME PANELS, 168 IN 50 52 UPPER PANEL 176X 50 52 LOWER PANEL UPPER PANEL 112X...
Page 222 Page 3 of 11 BOM Explosion Report Item Number: 115912-1 Description: BASE FRAME ASSY, 110 IN, W/PAN ACCESS, STEEL Item Revision: H.02 ECO-00024353 Date as of: 04/11/2018 09:54:15 AM PDT Find Num Qty Inventory Unit (LN6) Number Description / Title BOM Notes 97-115912-H H ASSY DRAWING, BASE FRAME, 110 IN...
Page 223 REVISION HISTORY ECO# DATE DESCRIPTION 01-31-06 ADDED -3 NOTE TO DASH TABLE K.D.H. 7/10/07 MODIFED DASH NUMBER BLOCK, REMOVED STL, 6 IN FT FROM ALL DESCRIPTIONS 7046 08-02-10 ADD NOTE S 1 & 2. UPDAT " HW KIT, ITEM 10, LOM TABLE" PER RED LINES. TITLE WAS " BASE FRAME ASS'Y, 168 IN RADOME". ADD SHEET 2 TO SHOW BASE STAND CONFIGURATIONS.
Page 224 80 81 82 83 72 55 71 72 73 74 SPIDER MOUNTING BASE 70 72 73 74 14600 BASE SPACER BASE STAND BASE CROSS SIZE SCALE: DRAWING NUMBER 1:20 115912 2 OF 2 SHEET NUMBER...
Page 227 REVISION HISTORY REV ECO# DATE DESCRIPTION 4609 10-05-04 RELEASED TO PRODUCTION 4858 5-5-05 ADD REFERENCE 121113 3-2-06 CHANGED TO TABLE FORMAT V.S. CONTROL PANEL 1-9-07 CREATED CAD OUTLINE DRAWING 17.85 04/18/14 ADDED INRUSH/STARTUP CURRENT FIELD TO DASH TABLE. 12.80 AIR FLOW 2.53 31.88 33.00...
Page 228 Procedure, General Strain Relief Installation Purpose. To define the installation procedure for installing strain reliefs in the base pan of the radome. Scope. This installation procedure applies to fiberglass base pans used in Sea Tel’s 75”, 81” and 110” base frames. Tools/materials.
Page 229 Procedure, General Strain Relief Installation Sealing the hole edges CAUTION: Cut edges can allow water and/or ice ingress and weaken the fiberglass laminate or structural foam. It is essential to seal all cut edges thoroughly with fiberglass resin to preserve the base pans structural strength. CAUTION: Fiberglass paste or RTV silicone sealant will not wick into and seal the fiberglass strands as well as fiberglass resin, ONLY use fiberglass resin (such as TAP PLASTICS MARINE VINYL ESTER, or equivalent) for sealing the cut edges.
Page 230 SINGLE LEVEL MFG BILL OF MATERIAL FIND QTY PART NO REV DESCRIPTION REFERENCE DESIGNATOR 1 EA 109258-8 G2 STRAIN RELIEF 1 EA 124904 LOCKNUT 1 EA 124905 SEALING RING 1 EA 124354-1 A1 RUBBER STOPPER 1 EA 114580-033 WASHER, FLAT, 1/2, S.S. STRAIN RELIEF ASS'Y PROD FAMILY EFF.
Page 231 REVISION HISTORY ECO# DATE DESCRIPTION 1-9-06 RELEASED TO PRODUCTION, WAS REV X3. 5266 8-7-06 ADD NOTE 3. 5872 10-11-07 DELETED ADHESIVE APPLICATION NOTE, NOTE 2 RE-WRITTEN. 5-7-10 CORRECTED MODEL, UPDATED TITLE BLOCK. FIBERGLASS RADOME BASE OUTSIDE RADOME NOTES: UNLESS OTHERWISE SPECIFIED DISCARD RUBBER BUSHING AND PLASTIC RETAINING RING FROM STRAIN RELIEF AT ASSEMBLY.
Page 232 SINGLE LEVEL MFG BILL OF MATERIAL FIND QTY PART NO REV DESCRIPTION REFERENCE DESIGNATOR 1 EA 138633-4 B1 BDE CABLE KIT, 4012GX (MXP) 1 EA 136872 A1 BRACKET ASSY, CONNECTOR, RACK MOUNT 1 EA 139410 BOX, ACCESSORY BELOW DECK KIT, MXP PROD FAMILY EFF.
